🔧 Impala - Oxygen Sensor Replacement

Your Impala can have more than one oxygen (O2) sensor: “upstream” sensors (before the catalytic converter) and “downstream” sensors (after the converter). Replacing the correct one fixes check-engine-light codes related to fuel mixture (upstream) or catalyst efficiency (downstream).

Difficulty Level: Intermediate | Estimated Time: 0.75-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully; O2 sensors sit in very hot exhaust parts.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Wear eye protection; rust flakes fall when working under the car.
• ⚠️ Keep sensor wiring away from the exhaust after installation.
• ⚠️ Battery disconnect is not required, but recommended to avoid accidental shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves
• Penetrating oil
• 22mm oxygen sensor socket (specialty)
• 3/8" ratchet
• 3/8" extension set
• Torque wrench (3/8", 10-80 ft-lbs range)
• Flathead screwdriver
• Trim clip pliers
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor (Upstream or Downstream, correct position) - Qty: 1
• High-temp anti-seize compound - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔎 Identify which sensor you’re replacing: upstream (in/near the exhaust manifold area) or downstream (under the car after the catalytic converter).
• 🔋 Optional: disconnect the negative battery cable if you want extra safety while unplugging connectors.
• 🧴 Spray penetrating oil on the sensor threads (where it screws into the exhaust) and let it soak 10–15 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the sensor location on your Impala

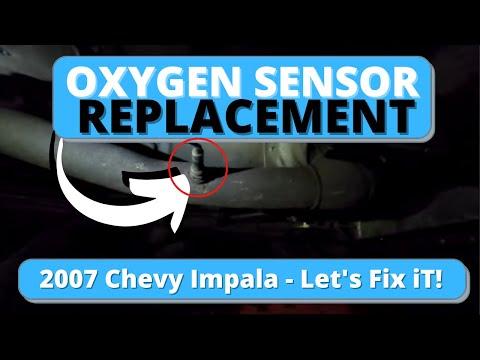

• Look for the sensor screwed into the exhaust with a wire pigtail going to an electrical connector.
• On your Impala, the “rear” engine bank is closest to the firewall; the “front” bank is closest to the radiator.
• Upstream sensors are before the catalytic converter; downstream sensors are after the converter (typically easier to access from underneath).

Step 2: Raise and support the car (if the sensor is underneath)

• Place wheel chocks behind the rear tires.
• Lift the front with a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the car down onto jack stands (rated 3-ton minimum).
• Give the car a firm shake test.

Step 3: Unplug the oxygen sensor connector

• Follow the sensor wire to its connector (often clipped to a bracket or body tab).
• Release any wire clips using trim clip pliers (or a flathead screwdriver carefully).
• Press the connector lock tab and separate the connector by hand.

Step 4: Remove the oxygen sensor

• Slide a 22mm oxygen sensor socket (specialty) over the sensor wire and onto the sensor hex.
• Use a 3/8" ratchet with a 3/8" extension set as needed to break it loose, then unthread it fully.
• If it’s stubborn, apply more penetrating oil and wait a few more minutes.
• An oxygen sensor socket is a deep socket with a side cutout so the wire can pass through.

Step 5: Install the new oxygen sensor

• Compare the new sensor to the old one (connector shape, wire length, and threads should match).
• If the new sensor threads are not pre-coated, apply a tiny amount of high-temp anti-seize compound to the threads only.
• Start threading the sensor in by hand to avoid cross-threading.
• Tighten with the 22mm oxygen sensor socket (specialty) and torque wrench (3/8", 10-80 ft-lbs range): Torque to 30 Nm (22 ft-lbs).

Step 6: Reconnect the wiring and secure the harness

• Plug the connector back in until it clicks.
• Reattach any harness clips using trim clip pliers (or carefully with a flathead screwdriver).
• Make sure the wire is routed away from the exhaust and moving parts.

Step 7: Lower the car (if lifted)

• Raise the car slightly with the floor jack (rated 3-ton minimum).
• Remove the jack stands (rated 3-ton minimum) and lower the car to the ground.
• Remove the wheel chocks.

Step 8: Clear codes and verify the repair

• Use an OBD2 scan tool to clear the diagnostic trouble codes.
• Start the engine and listen for any exhaust leak noises near the sensor area.
• Test drive 10–15 minutes and recheck for codes with the OBD2 scan tool.

---

✅ After Repair

• 🧪 Re-scan for codes after the test drive; no codes should return.
• 🔍 Check that the sensor harness is not touching the exhaust.
• 🛠️ If codes return, confirm you replaced the correct sensor (upstream vs downstream) and that the connector is fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $50-$180 (parts only)

You Save: $130-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
