🔧 Jetta - Oxygen Sensor Replacement (All Sensors)

On your Jetta, the oxygen sensors (O2 sensors) report exhaust oxygen content so the engine computer can control fuel mixture and monitor catalytic converter efficiency. Replacing all sensors means you’ll typically replace the upstream sensor(s) (fuel control) and the downstream sensor (catalyst monitor), then clear codes and verify data.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work on a fully cooled engine/exhaust.
• ⚠️ Support the car with jack stands on solid ground—never rely on a jack alone.
• ⚠️ Wear eye protection—rust and debris fall when working underneath.
• ⚠️ Avoid twisting the sensor wiring—only turn the sensor hex with the proper socket.
• ⚠️ Battery disconnect is not required, but keep the key off and don’t unplug connectors with the engine running.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10-80 Nm range)
• 22mm oxygen sensor socket (slotted) (specialty)
• Penetrating oil
• Trim clip removal tool
• T25 Torx driver
• T30 Torx driver
• 10mm socket
• Pick tool
• OBD2 scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound (oxygen sensor safe) - Qty: 1
• Replacement wiring clips (assorted) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• Spray penetrating oil on the sensor threads (where it screws into the exhaust) and let it soak 10–15 minutes.
• Know the sensor locations: Upstream (B1S1) is on the exhaust near the turbo/downpipe area; Downstream (B1S2) is after the catalytic converter under the car.
• O2 sensor socket is slotted for the wire.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Scan for codes and save data

• Plug in your OBD2 scan tool (specialty) and record any stored codes and freeze-frame data.
• Turn the ignition off and remove the key/fob from the car.

Step 2: Safely raise and support the car

• Use a floor jack (rated 2-ton minimum) to lift the front of the car at the proper front jack point.
• Set it down onto jack stands (rated 2-ton minimum) and give the car a firm shake test.
• Keep wheel chocks in place.

Step 3: Remove the lower engine cover (belly pan)

• Use a T25 Torx driver and T30 Torx driver to remove the belly pan fasteners.
• Use a trim clip removal tool for any push clips.
• Set the cover and fasteners aside in order.

Step 4: Replace the downstream O2 sensor (Bank 1 Sensor 2)

• Locate the sensor after the catalytic converter under the car.
• Release wiring retainers using a trim clip removal tool and pick tool (a pick is a small pointed tool used to lift locking tabs).
• Unplug the connector by pressing the lock tab using a pick tool (don’t pull on wires).
• Slide the 22mm oxygen sensor socket (slotted) (specialty) over the wire and onto the sensor hex.
• Use a 3/8" drive ratchet with a 3/8" drive extension set to loosen and remove the sensor.
• Install the new sensor by hand first (to avoid cross-threading), then tighten with the 22mm oxygen sensor socket (slotted) (specialty).
• Use a torque wrench (10-80 Nm range) and 22mm oxygen sensor socket (slotted) (specialty): Torque to 50 Nm (37 ft-lbs).
• Apply a small amount of anti-seize compound (oxygen sensor safe) only if the new sensor threads are not pre-coated. Keep it off the tip.
• Reconnect the connector and reattach the wiring to all clips.

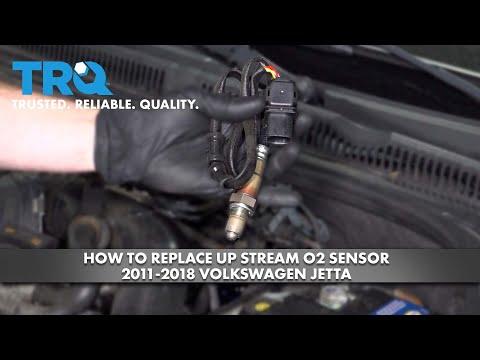

Step 5: Replace the upstream O2 sensor (Bank 1 Sensor 1)

• From underneath, locate the upstream sensor on the exhaust near the turbo/downpipe area (above and forward compared to the downstream sensor).
• If access is tight, remove any small underbody shield section using a 10mm socket or T30 Torx driver (varies by shield).
• Free the wiring from clips using a trim clip removal tool and pick tool.
• Unplug the connector by releasing the lock using a pick tool.
• Use the 22mm oxygen sensor socket (slotted) (specialty) with a 3/8" drive ratchet and 3/8" drive extension set to remove the sensor.
• Install the new upstream sensor by hand first, then tighten with the 22mm oxygen sensor socket (slotted) (specialty).
• Use the torque wrench (10-80 Nm range): Torque to 50 Nm (37 ft-lbs).
• Route the harness exactly like the original and fully seat all clips so it cannot touch the exhaust.

Step 6: Reinstall the belly pan

• Reposition the cover and start all fasteners by hand.
• Tighten using a T25 Torx driver and T30 Torx driver snugly (do not over-tighten plastic fasteners).

Step 7: Lower the car

• Use the floor jack (rated 2-ton minimum) to lift slightly, remove jack stands (rated 2-ton minimum), then lower the car.

Step 8: Clear codes and verify repair

• Use the OBD2 scan tool (specialty) to clear fault codes.
• Start the engine and check for exhaust leaks and warning lights.
• On the scan tool, confirm both O2 sensors show activity and no immediate codes return.

---

✅ After Repair

• Do a 10–15 minute test drive with mixed city/highway speeds.
• Re-scan with the OBD2 scan tool (specialty) to confirm no pending codes.
• Recheck that the sensor wiring is clipped away from hot exhaust and moving parts.
• If a code returns fast, check connectors first.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$900 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $200-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
