🔧 Insight - Oxygen Sensor Replacement (Upstream + Downstream)

You can replace both oxygen sensors on your Insight: the upstream sensor (also called the A/F sensor) helps the engine computer control fuel mixture, and the downstream sensor monitors catalytic converter efficiency. Replacing them typically involves unplugging the connectors, removing the sensors with a special socket, and reinstalling with correct tightening.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work only on a fully cool exhaust.
• ⚠️ Safely lift and support your Insight on jack stands; never rely on a jack alone.
• ⚠️ Hybrid system: do not disturb orange high-voltage cables or connectors.
• ⚠️ Use eye protection; rust and debris fall when working under the car.
• ⚠️ Battery disconnect is not strictly required, but it helps prevent accidental shorts while unplugging connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 19mm lug nut socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Oxygen sensor socket 22mm (7/8") (specialty)
• Breaker bar (3/8" or 1/2")
• Trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Penetrating oil
• Work light
• OBD2 scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air/fuel ratio sensor (Sensor 1) - Qty: 1
• Downstream oxygen sensor (Sensor 2) - Qty: 1
• Replacement exhaust fastener clips (splash shield, as needed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Let the exhaust cool completely (at least 1 hour after driving).
• If you choose to disconnect power: remove the negative cable using a 10mm wrench (if you do this, add one to your tools).
• Spray the sensor threads (where they screw into the exhaust) with penetrating oil and let it soak 10–15 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of your Insight

• Place wheel chocks behind the rear tires.
• Lift the front with a floor jack (rated 2-ton minimum).
• Set the car down onto jack stands (rated 2-ton minimum) at the proper front support points.
• Give the car a firm shake to confirm it’s stable.

Step 2: Remove the lower splash shield (under-cover) as needed

• Use a trim clip tool and flathead screwdriver to remove plastic clips.
• Use a 3/8" drive ratchet to remove any bolts you can access (fastener head sizes vary).
• Lower the cover and set it aside.
• Keep clips grouped by location.

Step 3: Replace the upstream sensor (A/F sensor, Sensor 1)

• Locate the upstream sensor on the exhaust manifold / front pipe area (it’s the first sensor before the catalytic converter).
• Unclip the harness from brackets using needle-nose pliers or a trim clip tool.
• Disconnect the electrical connector by pressing the lock tab and pulling apart by hand.
• Place the oxygen sensor socket 22mm (7/8") (specialty) over the sensor and use a breaker bar to crack it loose.
• Once loose, use a 3/8" drive ratchet with a 6" extension (3/8" drive) to spin it out.
• Install the new upstream sensor by hand first (to avoid cross-threading), then tighten with the oxygen sensor socket 22mm (7/8") (specialty).
• Torque to 44 Nm (33 ft-lbs).
• Reconnect the electrical connector and re-clip the harness to its brackets.

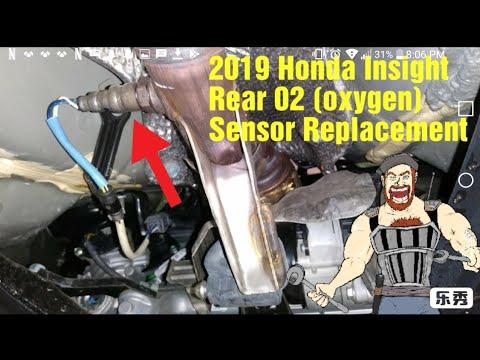

Step 4: Replace the downstream sensor (O2 sensor, Sensor 2)

• Locate the downstream sensor on the exhaust after the catalytic converter (further back under the car).
• Unclip the wiring from its retainers using a trim clip tool.
• Disconnect the electrical connector by pressing the lock tab and pulling apart by hand.
• Use the oxygen sensor socket 22mm (7/8") (specialty) with a breaker bar to loosen the sensor.
• Remove it fully with the 3/8" drive ratchet and a 12" extension (3/8" drive) if needed for reach.
• Install the new downstream sensor by hand first, then tighten with the oxygen sensor socket 22mm (7/8") (specialty).
• Torque to 44 Nm (33 ft-lbs).
• Reconnect the electrical connector and secure the harness in the original clips to keep it away from the hot exhaust.

Step 5: Reinstall the splash shield and lower the car

• Reinstall the under-cover using the trim clip tool and flathead screwdriver for clips.
• Tighten any bolts you removed with the 3/8" drive ratchet (snug—do not overtighten plastic retainers).
• Raise the car slightly with the floor jack (rated 2-ton minimum), remove the jack stands (rated 2-ton minimum), and lower the car.

Step 6: Clear codes and verify repair

• Plug in an OBD2 scan tool (specialty) and clear any stored codes.
• Start the car and check that the MIL (check engine light) stays off.
• Use the scan tool to confirm both sensors show live data (switching/reading normally).

---

✅ After Repair

• Check for exhaust leaks by listening for a “ticking” sound near the sensor areas.
• Confirm wiring is not touching the exhaust (melt risk).
• Road test 10–15 minutes, then recheck for codes with the OBD2 scan tool (specialty).
• If the check engine light returns (like P013x/P014x/P0420), stop and share the exact code(s) for pinpoint diagnostics.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$800 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $230-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
