🔧 Soul - Oxygen Sensor Replacement (All Sensors)

On your Soul, there are typically two oxygen (O2) sensors: an upstream sensor (Sensor 1) before the catalytic converter and a downstream sensor (Sensor 2) after it. Replacing both means working near the exhaust (hot parts) and unplugging electrical connectors, then threading new sensors into the exhaust.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust fully cool (serious burn risk).
• ⚠️ Support the car on jack stands; never rely on a jack alone.
• ⚠️ Wear safety glasses; rust and debris fall straight down.
• ⚠️ Keep sensor wires away from the exhaust when reinstalling.
• ⚠️ If you disconnect the battery, you may lose radio presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 22mm oxygen sensor socket (specialty)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• 3/8" drive extension set
• Breaker bar (3/8" or 1/2" drive)
• Trim clip tool
• Flathead screwdriver
• Penetrating oil spray
• OBD-II scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Sensor 1) - Qty: 1
• Downstream oxygen sensor (Sensor 2) - Qty: 1
• High-temperature anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Let the exhaust cool completely (at least 1 hour after driving).
• If you want extra safety around connectors, disconnect the negative battery terminal using a 10mm socket (only if you have one available).
• Tip: Spray penetrant 10 minutes before loosening.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify Sensor 1 vs Sensor 2

• Open the hood and look at the exhaust side of the engine for the upstream O2 sensor (Sensor 1).
• Look under the car near the catalytic converter/exhaust pipe for the downstream O2 sensor (Sensor 2).
• Use a flashlight (from your phone is fine) to trace the sensor wire to its connector so you unplug the correct one.

Step 2: Raise and support the front of the car

• Lift the front with a floor jack (rated 2-ton minimum).
• Set the car down onto jack stands (rated 2-ton minimum) at the proper lift points.
• Give the car a firm shake to confirm it’s stable.

Step 3: Unplug the oxygen sensor connector

• Find the sensor’s electrical connector (usually clipped to a bracket).
• Use a trim clip tool or flathead screwdriver to gently free the connector from its holder.
• Press the lock tab and unplug the connector by hand (don’t pull on the wires).

Step 4: Remove the upstream oxygen sensor (Sensor 1)

• Spray the sensor threads area with penetrating oil spray and wait 5–10 minutes.
• Install a 22mm oxygen sensor socket (specialty) over the sensor (this is a slotted socket that fits over the wire).
• Use a 3/8" drive ratchet plus a 3/8" drive extension set to loosen it.
• If it’s stuck, switch to a breaker bar for more leverage, then remove the sensor by hand.

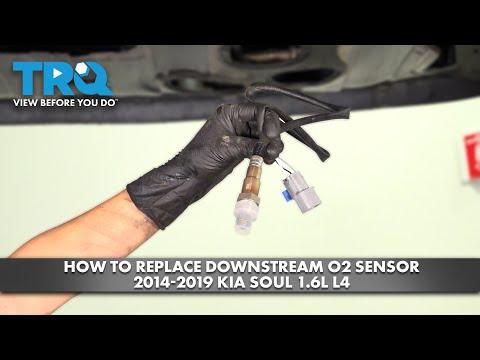

Step 5: Remove the downstream oxygen sensor (Sensor 2)

• From under the car, locate the sensor after the catalytic converter.
• Spray the threads area with penetrating oil spray and wait 5–10 minutes.
• Use the 22mm oxygen sensor socket (specialty) with a ratchet and extensions to loosen and remove it.

Step 6: Install the new oxygen sensors

• Compare old and new sensors (connector shape and wire length should match).
• If the new sensors do NOT come with thread coating, apply a tiny amount of high-temperature anti-seize compound to the threads only (keep it off the sensor tip).
• Thread each sensor in by hand first to avoid cross-threading.
• Tighten using the 22mm oxygen sensor socket (specialty) and 3/8" drive torque wrench: Torque to 44 Nm (32 ft-lbs).
• Tip: Hand-starting prevents expensive thread damage.

Step 7: Reconnect connectors and secure the harness

• Plug each sensor connector back in until it clicks.
• Re-clip the connector/harness back into its holder using a trim clip tool if needed.
• Confirm the wires are routed away from the exhaust and not twisted tight.

Step 8: Lower the car

• Raise the car slightly with the floor jack to remove the jack stands.
• Lower the car to the ground slowly.

---

✅ After Repair

• Use an OBD-II scan tool to clear any stored trouble codes.
• Start the engine and listen for exhaust leaks (ticking sound near the sensor area).
• Test drive 10–15 minutes and re-scan to confirm codes don’t return.
• If you disconnected the battery, reset the clock and radio presets.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹20,000 (parts + labor)

DIY Cost: ₹3,500-₹12,000 (parts only)

You Save: ₹4,500-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
