🔧 Ridgeline - Oxygen Sensor Replacement (Upstream & Downstream)

Your Ridgeline uses oxygen sensors to help the PCM (engine computer) control fuel mixture and check catalytic converter efficiency. On your Ridgeline, there are typically 4 sensors total: 2 upstream (Air/Fuel ratio) sensors and 2 downstream (O2) sensors, one set per bank.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool exhaust. Sensors sit in hot pipes.
• ⚠️ Support the truck with jack stands; never rely on a jack.
• ⚠️ Avoid twisting the sensor wiring. Unplug first, then remove the sensor.
• ⚠️ If you use penetrating oil, keep it off the sensor tip and away from sparks.
• 🔋 Battery disconnect is not required, but you may disconnect the negative terminal if you’re worried about shorting a connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 3/8" drive swivel adapter
• 22mm oxygen sensor socket (specialty)
• Torque wrench (10-100 ft-lbs range)
• Trim clip removal tool
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air/fuel ratio sensor (Sensor 1) - Qty: 2
• Downstream oxygen sensor (Sensor 2) - Qty: 2
• Replacement exhaust fasteners/clips (as needed) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels before lifting the front.
• 🧠 Know the layout: on Honda V6s, Bank 1 is the rear bank (firewall side), and Bank 2 is the front bank (radiator side).
• 🧴 Spray penetrating oil at the sensor threads (where it meets the pipe) and let it soak 10–15 minutes.
• 🔍 Plan to replace one sensor at a time so connectors don’t get mixed up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

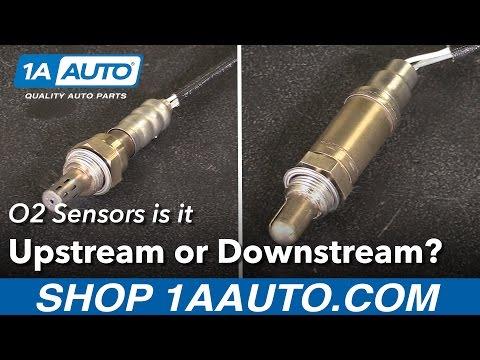

Step 1: Locate the sensors (upstream vs downstream)

• Open the hood and look for the upstream sensors (Sensor 1) on each bank near the exhaust manifold area.
• Raise the front of the truck with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Slide under and find the downstream sensors (Sensor 2) after the catalytic converters (further back on the exhaust).
• Upstream = before catalyst, downstream = after.

Step 2: Remove any lower covers for access (if equipped)

• Use a 10mm socket to remove bolts holding the lower splash shield (if it blocks access).
• Use a trim clip removal tool to pop out plastic clips without breaking them.

Step 3: Unplug the sensor connector first

• Find the sensor’s electrical connector (on a bracket or clipped to the body).
• Release the lock tab by hand, then unplug the connector.
• Unclip the harness from any holders so it can rotate freely while you remove the sensor.
• Do not spin the sensor with wiring attached.

Step 4: Remove the sensor

• Fit a 22mm oxygen sensor socket (specialty) over the sensor hex.
• Use a 3/8" drive ratchet with a 3/8" drive extension set and 3/8" drive swivel adapter as needed for clearance.
• Turn counterclockwise to loosen and remove the sensor.
• If it’s stuck, apply more penetrating oil and wait a few minutes, then try again with steady pressure.

Step 5: Install the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Tighten using the 22mm oxygen sensor socket (specialty) and a torque wrench (10-100 ft-lbs range).
• Torque to 44 N·m (33 ft-lbs).
• Route the harness exactly like the old one and clip it back into holders.
• Plug the connector in until it clicks/locks.
• Keep wiring away from hot exhaust.

Step 6: Repeat for the remaining sensors

• Repeat Steps 3–5 for:

• Bank 1 Sensor 1 (rear/upstream)
• Bank 2 Sensor 1 (front/upstream)
• Bank 1 Sensor 2 (rear/downstream)
• Bank 2 Sensor 2 (front/downstream)

Step 7: Reinstall covers and lower the truck

• Reinstall the splash shield using the 10mm socket and any clips you removed with the trim clip removal tool.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower the truck.

---

✅ After Repair

• 🔎 Use an OBD2 scan tool to clear any stored codes and confirm none return.
• 🧪 Start the engine and listen for exhaust leaks (a sharp “ticking” near a sensor can mean it’s loose or cross-threaded).
• 🚗 Test drive 10–15 minutes and recheck for a check-engine light.
• 📋 If codes return, confirm you didn’t swap connectors between banks and that the harness isn’t touching the exhaust.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,400 (parts + labor)

DIY Cost: $200-$800 (parts only, depending on sensor brand and how many you replace)

You Save: $400-$600+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
