🔧 Outlander - Oxygen Sensor Replacement

On your Outlander, there are typically two exhaust sensors: an upstream sensor (before the catalytic converter) and a downstream sensor (after it). Replacement is mostly unplug–unscrew–install, but access can be tight and the exhaust is easy to burn yourself on.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold exhaust; it can cause severe burns.
• ⚠️ Support your Outlander with jack stands before going underneath.
• ⚠️ Wear eye protection; rust and dirt fall when loosening sensors.
• ⚠️ Keep wires away from the exhaust after installation (melting risk).
• ⚠️ Battery disconnect is not required, but if you disconnect it use a 10mm wrench and keep the key away from the vehicle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Ratchet
• 3/8" drive extension set
• 22mm oxygen sensor socket
• 22mm box wrench
• Torque wrench (10-80 Nm range)
• Trim clip removal tool
• Flathead screwdriver
• Penetrating oil
• OBD2 scan tool
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air-fuel ratio sensor (Sensor 1, before catalytic converter) - Qty: 1
• Downstream oxygen sensor (Sensor 2, after catalytic converter) - Qty: 1
• High-temp anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Let the exhaust cool completely (at least 1 hour after driving).
• Tip: Spray penetrating oil 10 minutes before loosening.
• Assumption: Torque specs can vary by sensor brand; values below are typical for this setup.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which sensor you’re replacing

• The upstream (Sensor 1) is on the exhaust manifold/front pipe area before the catalytic converter.
• The downstream (Sensor 2) is in the exhaust pipe after the catalytic converter (usually accessed from underneath).
• Use a flashlight (from your phone is fine) and follow the sensor wire to its connector.

Step 2: Raise and support the vehicle (for Sensor 2, and sometimes Sensor 1)

• Use a floor jack (rated 3-ton minimum) to lift the front.
• Set the vehicle onto jack stands (rated 3-ton minimum) at the proper lift/support points.
• Give the vehicle a gentle shake to confirm it’s stable before going under.

Step 3: Unplug the sensor connector

• Locate the connector clipped to a bracket/body tab.
• Use a trim clip removal tool or flathead screwdriver to free the harness clips.
• Press the connector lock tab and pull apart by hand (do not pull on the wires).
• Tip: Wiggle the connector; don’t force it.

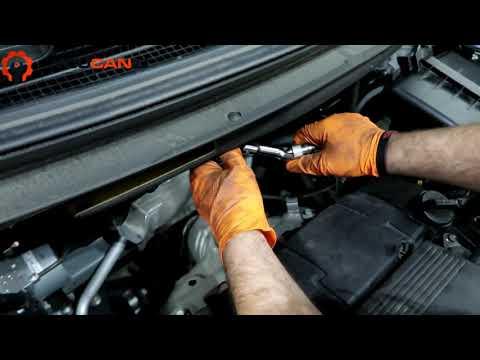

Step 4: Loosen and remove the old sensor

• Spray the sensor threads area with penetrating oil and wait a few minutes.
• Fit a 22mm oxygen sensor socket on the sensor hex (the slot allows the wire to pass through).
• Use a ratchet and 3/8" drive extension to break it loose, then spin it out by hand.
• If space is tight, use a 22mm box wrench instead.

Step 5: Prepare the new sensor

• Compare the new sensor to the old one (connector shape and wire length should match).
• If the new sensor threads are NOT pre-coated, apply a tiny amount of high-temp anti-seize compound (sensor-safe) to the threads only.
• Do not get anti-seize on the sensor tip (the sensing element).

Step 6: Install and torque the new sensor

• Thread the sensor in by hand first to avoid cross-threading.
• Tighten with the 22mm oxygen sensor socket and torque wrench.
• Torque to 40 Nm (30 ft-lbs)

Step 7: Route the wiring correctly and reconnect

• Clip the harness back into its holders using the trim clip removal tool as needed.
• Reconnect the electrical connector until it clicks into place.
• Make sure the wire is not touching the exhaust or hanging loose.

Step 8: Lower the vehicle

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), then lower fully.
• Remove the wheel chocks.

---

✅ After Repair

• Plug in the OBD2 scan tool and clear any stored trouble codes.
• Start the engine and listen for exhaust leaks (a sharp “ticking” sound near the sensor can mean it’s loose).
• Check that the sensor wiring is not moving near hot parts.
• Drive normally for a few trips; emissions monitors may take time to reset (this is normal).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $190-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
