🔧 Juke - Oxygen Sensor Replacement

Oxygen sensors (upstream and downstream) measure exhaust oxygen so your A4—sorry, your Juke—can adjust fuel mixture and monitor the catalytic converter. Replacing a failed sensor can fix a check-engine light, poor fuel economy, and drivability issues.

Assumption: Your Juke uses the common setup: Upstream (Air/Fuel) sensor in the exhaust manifold/front pipe and Downstream (O2) sensor after the catalytic converter.

Difficulty Level: Intermediate | Estimated Time: 1.0–2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot—work on a fully cool engine.
• ⚠️ Support the Juke on jack stands—never rely on a floor jack alone.
• ⚠️ Do not twist/pull on sensor wiring—damage causes repeat faults.
• ⚠️ If you disconnect the battery, you may lose radio presets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 19mm lug nut socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 1/2" drive breaker bar
• Torque wrench (10–100 ft-lbs range)
• 10mm socket
• 12mm socket
• Trim clip removal tool
• O2 sensor socket 22mm (specialty)
• Penetrating oil
• Scan tool / code reader (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air/fuel ratio sensor (Sensor 1) - Qty: 1
• Downstream oxygen sensor (Sensor 2) - Qty: 1
• Anti-seize compound (oxygen-sensor safe) - Qty: 1
• Replacement undertray clips (as needed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Let the engine/exhaust cool completely (at least 1 hour after driving).
• If you choose to disconnect power: loosen the negative terminal with a 10mm socket and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the Juke

• Place wheel chocks behind the rear tires.
• Lift the front using a floor jack (rated 2-ton minimum) at the approved front jacking point.
• Set the front on jack stands (rated 2-ton minimum).
• Shake the car lightly to confirm it’s stable.

Step 2: Remove the lower engine undertray (if equipped)

• Remove bolts using a 10mm socket and 3/8" drive ratchet.
• Pop plastic clips using a trim clip removal tool.
• Set hardware aside in a small tray.

Step 3: Locate the sensors (Sensor 1 vs Sensor 2)

• Upstream (Sensor 1 / A/F sensor): usually before the catalytic converter, closer to the engine.

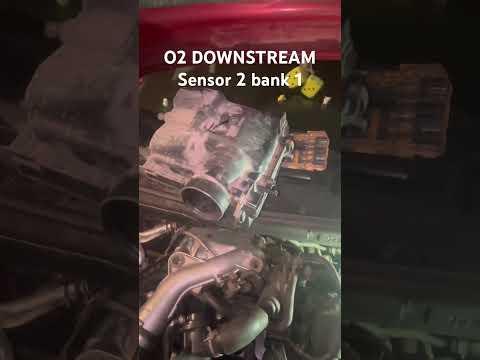

• Downstream (Sensor 2 / O2 sensor): after the catalytic converter, farther downstream under the vehicle.
• Spray the sensor’s threaded base with penetrating oil and wait 5–10 minutes.
• Don’t spray the electrical connector.

Step 4: Disconnect the sensor connector

• Press the lock tab and unplug the connector by hand.
• If a bracket is in the way, remove it using a 10mm socket or 12mm socket and 3/8" drive ratchet.
• Never pull on the wires—pull on the connector body.

Step 5: Remove the old oxygen sensor

• Use an O2 sensor socket 22mm (specialty) (a slotted socket that fits over the wire) with a 3/8" drive ratchet and 3/8" drive extension set.
• If it’s very tight, use a 1/2" drive breaker bar (with the correct adapter) for extra leverage.
• Turn counterclockwise to remove the sensor.

Step 6: Install the new sensor

• Compare the new sensor to the old one (thread size and connector match).
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound (oxygen-sensor safe) to the threads only.
• Thread the new sensor in by hand first to avoid cross-threading.
• Tighten using the O2 sensor socket 22mm (specialty) and torque wrench: Torque to 44 Nm (33 ft-lbs).
• Keep anti-seize off the sensor tip.

Step 7: Reconnect wiring and reassemble

• Reconnect the electrical connector until it clicks.
• Reinstall any brackets using a 10mm socket or 12mm socket and 3/8" drive ratchet.
• Reinstall the undertray using a 10mm socket, 3/8" drive ratchet, and trim clip removal tool for clips.

Step 8: Lower the vehicle

• Raise slightly with the floor jack (rated 2-ton minimum), remove jack stands (rated 2-ton minimum), then lower to the ground.

---

✅ After Repair

• Clear codes using a scan tool / code reader (specialty).
• Start the engine and listen for exhaust leaks (ticking near the sensor bung).
• Road test 10–15 minutes and recheck for warning lights.
• If the check-engine light returns, recheck the connector lock and harness routing away from the exhaust.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$550 (parts + labor)

DIY Cost: $90–$260 (parts only)

You Save: $160–$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
