🔧 Cherokee - Oxygen Sensor Replacement

On your Cherokee, the oxygen (O2) sensors measure exhaust oxygen so the engine computer can adjust fuel mixture and monitor the catalytic converter. Replacement is usually needed for a failed sensor (check-engine codes like P013x/P014x/P0420) or damaged wiring.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot; work on a cold exhaust.
• ⚠️ Support the Cherokee on jack stands; never rely on a jack alone.
• ⚠️ Disconnect the negative battery cable to reduce risk of shorts near sensor wiring.
• ⚠️ Do not twist/pull on the sensor harness; unplug connectors first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 22mm oxygen sensor socket (specialty)
• Torque wrench (10–100 Nm range)
• Trim clip tool
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the exhaust cool fully (at least 1 hour after driving).
• Chock the rear wheels with wheel chocks.

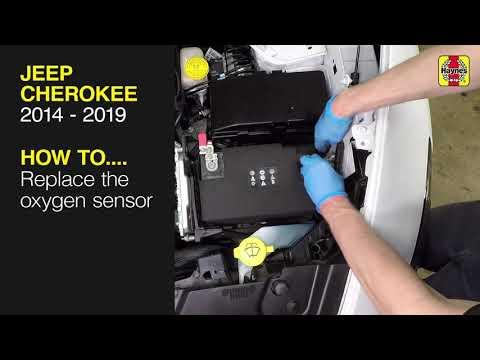

• Disconnect the battery negative terminal: use a 10mm socket to remove the negative cable and tuck it aside.
• An O2 sensor socket is a slotted socket for the wire.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the Cherokee

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jack point.
• Place jack stands (rated 3-ton minimum) under the front support points and lower onto stands.
• Give the vehicle a gentle shake to confirm it’s stable.

Step 2: Identify which O2 sensor you’re replacing

• Upstream (Bank 1 Sensor 1): mounted in the exhaust before the catalytic converter (closer to the engine).
• Downstream (Bank 1 Sensor 2): mounted after the catalytic converter (further downstream).
• Use a flashlight (phone light is fine) to spot the sensor body and its wiring connector clipped to the body.

Step 3: Unclip shields/liners if they block access

• If a splash shield or small underbody panel blocks your reach, remove the push-pins with a trim clip tool.
• Remove any small bolts using a 10mm socket and 3/8" drive ratchet.
• Set all clips/bolts aside in a cup so they don’t get lost.

Step 4: Unplug the oxygen sensor connector

• Follow the sensor wire to the connector.
• Release the connector lock tab by hand (or gently with the trim clip tool if needed), then pull the connector apart.
• Pull on the connector body, not the wires.

Step 5: Loosen and remove the old oxygen sensor

• Spray the sensor threads where it enters the exhaust with penetrating oil. Wait 5–10 minutes.
• Install the 22mm oxygen sensor socket (specialty) over the sensor, routing the wire through the slot.
• Use a 3/8" drive ratchet and a 3/8" drive extension to break it loose and remove it.
• If it’s very tight, use steady pressure—avoid jerky pulls that can tip the vehicle on stands.

Step 6: Prepare and install the new oxygen sensor

• Compare new vs old sensor to confirm the connector and length match.
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound to the threads only (keep it off the sensor tip).
• Thread the new sensor in by hand first to prevent cross-threading.
• Tighten using the 22mm oxygen sensor socket (specialty) and torque wrench: Torque to 40 Nm (30 ft-lbs).
• Hand-starting prevents expensive thread damage.

Step 7: Route wiring and reconnect the connector

• Route the wire the same way as factory, away from the exhaust and moving parts.
• Reconnect the plug until it clicks/locks.
• Reattach any wire clips to their brackets by hand.

Step 8: Reinstall any shields/panels

• Reinstall underbody panels using the 10mm socket and 3/8" drive ratchet.
• Press push-pins back in by hand (use the trim clip tool if needed).

Step 9: Lower the Cherokee and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove jack stands (rated 3-ton minimum), then lower to the ground.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Use an OBD2 scan tool to clear stored codes.
• Start the engine and listen for exhaust leaks (a sharp “ticking” near the sensor area).
• Test drive 10–20 minutes and re-scan for returning codes.
• If you replaced the downstream sensor and still have catalyst-efficiency codes, the issue may be elsewhere (exhaust leak, catalytic converter, fuel/engine issue).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $190-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: common spec used—O2 sensor torque 40 Nm (30 ft-lbs).
