🔧 Forte - Oxygen Sensor Replacement

Your Forte uses oxygen (O2) sensors to measure exhaust oxygen so the engine computer can control fuel mixture and confirm the catalytic converter is working. Replacing a failed sensor can fix a check-engine light, poor fuel economy, or failed emissions readiness.

Difficulty Level: Intermediate | Estimated Time: 0.8-2.0 hours

Assumption: Typical 2015 Forte 2.0L sensor torque/specs; follow the new sensor’s instructions if they differ.

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully; the manifold and catalytic converter can cause severe burns.
• ⚠️ Support the car with jack stands on a solid level surface; never rely on a jack alone.
• ⚠️ Keep wiring away from the exhaust when reinstalling; melted wires will trigger repeat faults.
• 🔋 If you disconnect the sensor near the radiator fans, disconnect the negative battery terminal to prevent accidental fan operation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 22mm O2 sensor socket (specialty)
• Torque wrench (10–80 Nm range)
• Penetrating oil
• Flat trim tool
• OBD2 scan tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Sensor 1) - Qty: 1
• Downstream oxygen sensor (Sensor 2) - Qty: 1
• Anti-seize compound (oxygen-sensor safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and apply the parking brake.
• Place wheel chocks behind the rear wheels.
• Use your OBD2 scan tool to note stored codes and freeze-frame data before you disconnect anything.
• Spray the sensor threads (where it screws into the exhaust) with penetrating oil and let it soak 10–15 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which sensor you’re replacing

• Use an OBD2 scan tool (specialty) to read codes.
• Sensor locations on your Forte:

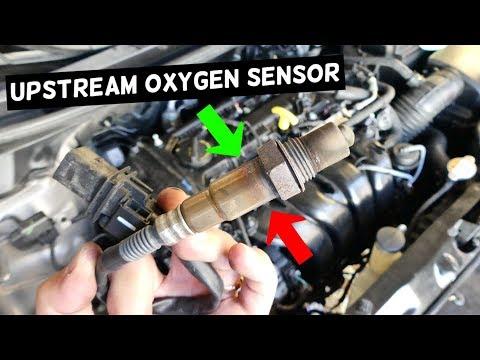

• Upstream O2 (Sensor 1): mounted in the exhaust manifold/catalyst area near the engine, before the catalytic converter.
• Downstream O2 (Sensor 2): mounted after the catalytic converter, accessed from under the car.

Step 2: Disconnect the negative battery terminal (recommended)

• Use a 10mm socket and 3/8" drive ratchet to loosen the negative terminal and move it aside.
• Tip: Tuck it so it can’t spring back.

Step 3: Access the sensor

• For Upstream (Sensor 1):
• Open the hood and locate the sensor’s wiring/connector near the top/rear of the engine.
• Use a flat trim tool to gently release any harness clips holding the wire.
• For Downstream (Sensor 2):
• Use a floor jack (rated 2-ton minimum) to lift the front safely, then set the car on jack stands (rated 2-ton minimum).
• Locate the sensor on the exhaust pipe after the catalytic converter.

Step 4: Unplug the sensor connector

• Press the connector lock tab and pull the connector apart by hand.
• If it’s tight, use a flat trim tool to help release the tab (don’t break it).
• Tip: Pull on the connector, not the wires.

Step 5: Remove the old oxygen sensor

• Spray a bit more penetrating oil at the sensor base if needed.
• Slide the 22mm O2 sensor socket (specialty) over the sensor wire and onto the hex of the sensor.
• Use a 3/8" drive ratchet plus a 3/8" drive extension set (3" and 6") as needed for reach.
• Turn counterclockwise to loosen and remove the sensor.
• If it won’t budge, tighten slightly then loosen; repeat to break it free.

Step 6: Install the new oxygen sensor

• Compare the new sensor to the old one (connector shape and wire length should match).
• If the new sensor threads are not pre-coated, apply a tiny amount of anti-seize compound (oxygen-sensor safe) to the threads only.
• Start threading the sensor by hand to avoid cross-threading.
• Tighten using the 22mm O2 sensor socket (specialty) and torque wrench (10–80 Nm range).
• Torque to 44 Nm (32 ft-lbs).

Step 7: Route the harness correctly and reconnect

• Clip the wiring back into the original holders using the flat trim tool if needed.
• Reconnect the electrical connector until it clicks.
• Make sure the wiring is not touching the exhaust.

Step 8: Reassemble and lower the car (if raised)

• If you raised the car, use the floor jack (rated 2-ton minimum) to lift slightly, remove the jack stands (rated 2-ton minimum), then lower the car.

Step 9: Reconnect battery and clear codes

• Reconnect the negative terminal using a 10mm socket and 3/8" drive ratchet.
• Use the OBD2 scan tool (specialty) to clear codes.

---

✅ After Repair

• Start the engine and listen for exhaust leaks (a sharp ticking near the sensor can indicate a leak).
• With the OBD2 scan tool (specialty), confirm no immediate O2 heater or circuit codes return.
• Test drive 10–20 minutes and re-check for pending codes.
• If you replaced Sensor 2, it may take a few drive cycles for catalyst/O2 monitors to set to “Ready.”

---

💰 DIY vs Shop Cost

Shop Cost: $220-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $160-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
