🔧 Compass - Oxygen Sensor Replacement

Your Compass uses oxygen (O2) sensors to measure exhaust oxygen so the engine computer can adjust fuel mixture and check catalytic converter performance. Replacing a failed sensor can fix a check-engine light, improve driveability, and restore proper fuel control.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool fully; the sensor and exhaust can cause severe burns.
• Support the Compass with jack stands on solid, level ground; never work under a vehicle held only by a jack.
• Avoid twisting/pulling the sensor wiring; the harness can be damaged internally.
• Battery disconnect: Recommended—disconnect the negative terminal before unplugging connectors near the exhaust.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Oxygen sensor socket 22mm (7/8")
• Torque wrench (3/8" drive)
• Trim clip tool
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor (upstream / Sensor 1) - Qty: 1
• Oxygen sensor (downstream / Sensor 2) - Qty: 1
• High-temperature anti-seize compound - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Open the hood and disconnect the battery negative cable using a 10mm socket.
• Identify which sensor you’re replacing: Upstream (Sensor 1) is before the catalytic converter; Downstream (Sensor 2) is after it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the Compass

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the proper front lift point.
• Set the vehicle down onto jack stands (rated 3-ton minimum).

Step 2: Locate the oxygen sensor and its connector

• Use a flashlight if needed to find the sensor on the exhaust.
• Follow the sensor wire to its connector mounted to a bracket or body tab.
• Don’t spin the sensor by the wire.

Step 3: Unplug the sensor connector

• Release any harness clips using a trim clip tool.
• Press the connector lock tab and unplug it by hand.
• Wiggle the connector; don’t yank.

Step 4: Loosen the oxygen sensor

• Spray the sensor threads area with penetrating oil and wait 5–10 minutes.
• Install the oxygen sensor socket 22mm (7/8") over the sensor.
• Use a 3/8" drive ratchet plus the needed 3/8" drive extension to break it loose.

Step 5: Remove the old sensor

• Continue turning the sensor out with the oxygen sensor socket 22mm (7/8") and ratchet.

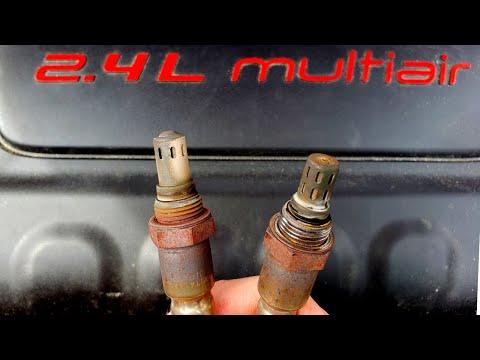

• Remove it from the exhaust bung and compare it to the new sensor (same connector and length).

Step 6: Install the new sensor

• If the new sensor threads are not pre-coated, apply a thin film of high-temperature anti-seize compound to the threads only (keep it off the tip).
• Thread the sensor in by hand first to avoid cross-threading.
• Tighten using the oxygen sensor socket 22mm (7/8") and torque wrench (3/8" drive).
• Torque to 55 Nm (41 ft-lbs)

Step 7: Reconnect the harness and secure the wiring

• Apply a small amount of dielectric grease to the connector seal (not the metal terminals).
• Plug the connector in until it clicks.
• Reattach any harness clips with the trim clip tool so the wire cannot touch the exhaust.

Step 8: Reconnect battery and lower the vehicle

• Reconnect the negative battery cable using a 10mm socket.
• Raise the vehicle slightly with the floor jack, remove the jack stands, and lower it.
• Remove the wheel chocks.

---

✅ After Repair

• Use an OBD2 scan tool to clear trouble codes.
• Start the engine and check for exhaust leaks or a ticking sound near the sensor area.
• Road test for 10–15 minutes and re-check for codes.
• If the check-engine light returns with the same code, inspect the connector pins and wiring routing again.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $160-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
