🔧 A6 - Oxygen Sensor Replacement

Your A6 uses oxygen (O2) sensors to measure exhaust oxygen so the engine computer can control fuel mixture and check catalytic converter efficiency. Replacement is mostly unplugging the old sensor, unscrewing it, and installing the new one without damaging the wiring.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.5 hours

Assumption: covering both upstream (Sensor 1) and downstream (Sensor 2).

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool fully; it can burn you.
• ⚠️ Support the car on jack stands; never rely on a jack.
• ⚠️ Keep O2 sensor wires away from the exhaust after install.
• ⚠️ Disconnect the negative battery terminal if you’ll be unplugging tight connectors near metal brackets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 8mm socket
• 10mm socket
• Ratchet
• 3/8" torque wrench
• O2 sensor socket 22mm (specialty)
• 3/8" breaker bar
• 3/8" extension set
• Trim clip removal tool
• Pick tool
• Flashlight
• Penetrating oil
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Oxygen sensor anti-seize compound - Qty: 1
• Replacement exhaust/underbody fasteners and clips kit - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Let the engine and exhaust cool for at least 1 hour.
• Plan which sensor you’re replacing:
  • Sensor 1 (upstream) is before the catalytic converter (controls fuel mixture).
  • Sensor 2 (downstream) is after the catalytic converter (checks cat efficiency).
• If you’ll raise the car, loosen none of the bolts—this job usually doesn’t need wheel removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the correct O2 sensor

• Use a flashlight to find the O2 sensor you’re replacing on the exhaust.
• Use an OBD2 scan tool to confirm the code points to Bank 1 Sensor 1 (upstream) or Bank 1 Sensor 2 (downstream).

Step 2: Raise and secure the front of the car (if needed)

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved front jack point.
• Place jack stands (rated 3-ton minimum) under the proper support points and lower onto them.

Step 3: Remove the lower underbody panel (if it blocks access)

• Use an 8mm socket and ratchet to remove the undertray fasteners.
• Use a trim clip removal tool for plastic clips (a trim tool is a forked pry tool that pops clips out without breaking them).
• Set the panel and hardware aside in a small pile so nothing is lost.

Step 4: Unplug the O2 sensor connector

• Follow the sensor wire to its connector (usually clipped to a bracket).
• Use a pick tool to gently lift the lock tab, then unplug by hand.
• Never pull on the wires.

Step 5: Free the harness from brackets/clips

• Use a trim clip removal tool to release the wire retainers from the body/exhaust brackets.
• This prevents twisting the harness when you unscrew the sensor.

Step 6: Loosen and remove the old oxygen sensor

• Spray the sensor threads area with penetrating oil and wait 5–10 minutes.
• Install the O2 sensor socket 22mm (specialty) over the sensor with the wire in the side slot.
• Use a breaker bar and 3/8" extension set to crack it loose, then remove with a ratchet.

Step 7: Prepare and install the new oxygen sensor

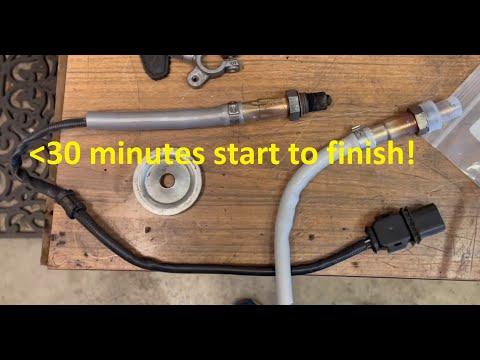

• Compare the new sensor to the old one (same connector, same wire length).
• If the new sensor threads are not pre-coated, apply a tiny amount of oxygen sensor anti-seize compound to the threads only.
• Thread the new sensor in by hand first to avoid cross-threading.
• Tighten using the O2 sensor socket 22mm (specialty) and 3/8" torque wrench: Torque to 55 Nm (41 ft-lbs).
• Keep anti-seize off the sensor tip.

Step 8: Route the wiring and reconnect the connector

• Clip the harness back into its retainers using your hands and the trim clip removal tool as needed.
• Plug the connector in until it clicks (use the pick tool only if the lock needs help seating).
• Double-check the wire is not touching the exhaust.

Step 9: Reinstall the underbody panel

• Reinstall the undertray and fasteners using an 8mm socket and ratchet.
• Snug the fasteners evenly (do not overtighten plastic hardware).

Step 10: Lower the car and clear faults

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove jack stands (rated 3-ton minimum), then lower.
• Use an OBD2 scan tool to clear stored codes.

---

✅ After Repair

• Start the engine and listen for exhaust leaks (hissing/ticking near the sensor area).
• Use the OBD2 scan tool to confirm no O2 heater or circuit codes return.
• Road test 10–15 minutes, then re-check for pending codes.
• If you replaced Sensor 2 for a catalyst-efficiency code, it may take a few drive cycles for monitors to run.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$600 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $170-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
