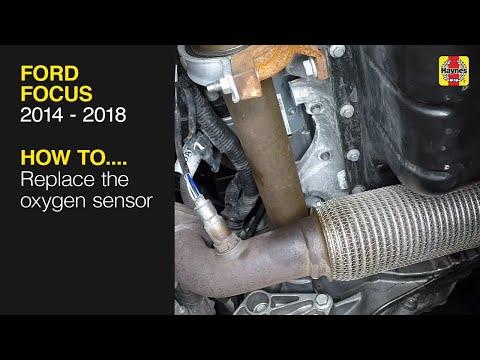

🔧 Focus - Oxygen Sensor Replacement

Your Focus uses oxygen (O2) sensors to measure exhaust oxygen so the engine computer can control fuel mixture and check catalytic converter performance. Replacing a failed sensor can fix a check-engine light, poor fuel economy, or emissions-related trouble codes.

Difficulty Level: Intermediate | Estimated Time: 0.8-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot; work on a fully cool exhaust.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep the O2 sensor wiring away from the exhaust after installation.
• ⚠️ Battery disconnect is not required, but keep the key OFF while unplugging sensors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 22mm (7/8") oxygen sensor socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 22mm box-end wrench
• Torque wrench (10-100 Nm range)
• Trim clip tool
• Flathead screwdriver
• Penetrating oil
• Scan tool (OBD-II code reader)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Sensor 1) - Qty: 1
• Downstream oxygen sensor (Sensor 2) - Qty: 1
• High-temperature anti-seize compound - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• Use a scan tool (OBD-II code reader) to record any stored codes before you start. This helps confirm the fix.
• Assumption: You want instructions for both upstream (Sensor 1) and downstream (Sensor 2) O2 sensors on your Focus.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the correct sensor

• Upstream (Sensor 1) is typically on the exhaust manifold area (higher up, closer to the engine).
• Downstream (Sensor 2) is typically after the catalytic converter (under the car, farther back).
• Use a scan tool (OBD-II code reader) to help identify which sensor is flagged (common code examples: P0131/P0135 = Sensor 1; P0137/P0141 = Sensor 2).

Step 2: Raise and support the car (for Sensor 2)

• Place wheel chocks behind the rear wheels.
• Lift the front using a floor jack (rated 3-ton minimum) at the approved front jacking point.
• Set the car down onto jack stands (rated 3-ton minimum) and gently shake-test for stability.

Step 3: Unclip and unplug the O2 sensor connector

• Find the sensor’s electrical connector and any retaining clips on the body or bracket.
• Use a trim clip tool to pop wiring clips out without breaking them.
• Press the connector lock tab and separate the connector by hand; use a flathead screwdriver gently if the lock is stubborn.
• Don’t pull on the wires—pull on the connector.

Step 4: Soak the sensor threads

• Spray penetrating oil where the sensor threads into the exhaust.
• Wait 5–10 minutes for it to work in.

Step 5: Remove the old oxygen sensor

• Slide a 22mm (7/8") oxygen sensor socket over the sensor and wire.
• Use a 3/8" drive ratchet with a 3/8" drive extension set as needed for access.
• Turn counterclockwise to break it loose, then spin it out by hand.
• If space is tight, use a 22mm box-end wrench to start it loose.

Step 6: Prep and install the new oxygen sensor

• Compare the new sensor to the old one (same connector, same length, same thread size).
• If the new sensor threads are not pre-coated, apply a tiny amount of high-temperature anti-seize compound to the threads only.
• Thread the new sensor in by hand first to avoid cross-threading.
• Tighten with a 22mm (7/8") oxygen sensor socket and torque wrench (10-100 Nm range): Torque to 35 Nm (26 ft-lbs).
• Keep anti-seize off the sensor tip.

Step 7: Route the harness and reconnect

• Apply a small amount of dielectric grease to the connector seal (not the pins).
• Reconnect the electrical connector until it clicks.
• Reattach all harness clips using the trim clip tool so the wiring is secured away from hot exhaust and moving parts.

Step 8: Lower the car (if lifted)

• Raise the car slightly with the floor jack (rated 3-ton minimum) to unload the jack stands (rated 3-ton minimum).
• Remove the stands, then lower the car fully.
• Remove the wheel chocks.

---

✅ After Repair

• Use a scan tool (OBD-II code reader) to clear codes.
• Start the engine and listen for exhaust leaks near the sensor area (a ticking sound can indicate a leak).
• Test drive 10–15 minutes, then rescan to confirm the codes do not return.
• If the check-engine light returns immediately, recheck the connector lock and wiring routing.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $160-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
