🔧 Patriot - Oxygen Sensor Replacement

Your Patriot uses oxygen (O2) sensors in the exhaust to help the engine computer adjust fuel mixture and monitor the catalytic converter. Replacing a failed O2 sensor can fix a check-engine light, poor fuel economy, and emissions faults.

Difficulty Level: Intermediate | Estimated Time: 0.8-1.5 hours

Assumption: Steps cover both upstream (Sensor 1) and downstream (Sensor 2) O2 sensors used on your Patriot.

---

⚠️ Safety & Precautions

• ⚠️ Exhaust parts get extremely hot; work on a fully cooled engine/exhaust.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Wear eye protection; rust and debris fall when working under the exhaust.
• ⚠️ Keep wires away from the exhaust when reinstalling; melted wiring will cause repeat faults.
• 🔋 Battery disconnect is not required, but disconnecting the negative terminal helps prevent accidental shorts while unplugging connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 22mm (7/8") oxygen sensor socket
• 3/8" drive ratchet
• 3/8" drive 6" extension
• Torque wrench (10-80 Nm range)
• Trim clip tool
• Small flathead screwdriver
• Penetrating oil
• OBD2 scan tool (basic code reader)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor (Bank 1 Sensor 1) - Qty: 1
• Downstream oxygen sensor (Bank 1 Sensor 2) - Qty: 1
• Anti-seize compound (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Let the exhaust cool completely (at least 1 hour after driving).
• If you choose to disconnect the battery: use a wrench on the negative terminal and keep it from touching the post.
• Spray penetrating oil on the sensor threads and let it soak 10-15 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate which O2 sensor you’re replacing

• Open the hood and look for the sensor screwed into the exhaust with a wire harness coming off it.
• Upstream (Bank 1 Sensor 1): mounted in the exhaust before the catalytic converter (closer to the engine).
• Downstream (Bank 1 Sensor 2): mounted after the catalytic converter (farther downstream under the vehicle).
• Tip: Follow the sensor wire to its connector.

Step 2: Raise and safely support the vehicle (for downstream sensor)

• Use a floor jack (rated 2-ton minimum) to lift the front at the proper jacking point.
• Set the vehicle down onto jack stands (rated 2-ton minimum).
• Shake the vehicle lightly to confirm it’s stable before going underneath.

Step 3: Unplug the O2 sensor connector

• Find the sensor connector clipped to the body/engine area.
• Use a small flathead screwdriver to gently lift the lock tab if needed, then unplug it.
• Use a trim clip tool to release any harness clips holding the wire to brackets.
• Tip: Don’t pull on the wires—pull on the connector body.

Step 4: Remove the old oxygen sensor

• Slip the 22mm (7/8") oxygen sensor socket over the sensor wire and onto the sensor hex.
• Use a 3/8" drive ratchet with a 3/8" drive 6" extension as needed for access.
• Turn counterclockwise to loosen and remove the sensor.
• If it’s stuck: apply more penetrating oil, wait 5 minutes, and try again with steady pressure.

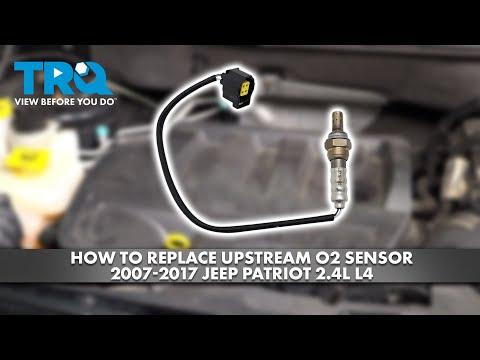

Step 5: Prepare and install the new oxygen sensor

• Compare the new sensor to the old one (same connector and length).
• If the new sensor threads are not pre-coated, apply a thin film of anti-seize compound (sensor-safe) to the threads only.
• Start threading the new sensor by hand to avoid cross-threading (damaging the threads).
• Tighten using the 22mm (7/8") oxygen sensor socket and torque wrench.
• Torque to 40 Nm (30 ft-lbs)
• Tip: Keep anti-seize off the sensor tip.

Step 6: Route the wire correctly and reconnect

• Clip the harness back into its holders using the trim clip tool.
• Plug the connector in until it clicks and locks.
• Confirm the wire is not touching the exhaust or hanging near moving parts.

Step 7: Lower the vehicle

• Use the floor jack (rated 2-ton minimum) to lift slightly, remove the jack stands, and lower the vehicle.
• Remove the wheel chocks.

Step 8: Clear codes (recommended)

• Plug in an OBD2 scan tool (basic code reader) and erase the fault codes.
• If you don’t clear codes, the light may turn off after several drive cycles if the repair fixed the issue.

---

✅ After Repair

• Start the engine and listen for exhaust leaks (ticking/puffing near the sensor area).
• Make sure the check-engine light stays off after a short test drive.
• Re-scan with the OBD2 scan tool (basic code reader) to confirm no codes return.
• Recheck that the harness is secured and not heat-soaked near the exhaust.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹15,000 (parts + labor)

DIY Cost: ₹2,500-₹9,000 (parts only)

You Save: ₹3,500-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
