🔧 Corolla - Radiator Hose Replacement

Replacing a radiator hose stops coolant leaks and helps prevent overheating. On your Corolla, there are usually two main radiator hoses: the upper hose (radiator to engine) and the lower hose (radiator to engine/water inlet).

Difficulty Level: Beginner | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands if you lift it; never rely on a floor jack alone.
• ⚠️ Coolant is toxic—keep it off skin and away from pets; clean spills immediately.
• ⚠️ Use a drain pan and dispose/recycle coolant properly.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 10 quarts)
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Phillips screwdriver
• Slip-joint pliers
• Hose clamp pliers (specialty)
• Pick tool (small) (specialty)
• Utility knife
• Trim clip removal tool
• Funnel
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Hose clamps - Qty: 4
• Toyota Super Long Life Coolant (pink, premixed 50/50) - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (ideally 2+ hours). The upper radiator hose should feel cool to the touch.
• Set the cabin heat to HOT when you do the final warm-up/bleed (this helps purge air).
• If you need access from below for the lower hose, raise the front with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Depressurize the cooling system (cold engine only)

• Use shop rags and slowly loosen the radiator cap to the first stop to release any leftover pressure.
• Remove the cap completely once you’re sure there’s no pressure.

Step 2: Drain enough coolant so hoses won’t gush

• Place a drain pan under the radiator drain (bottom of radiator).
• Open the drain cock carefully by hand; use a flashlight to see it clearly.
• Drain about 1-2 gallons (until the level drops below the upper hose). Close the drain cock.

Step 3: Remove the engine undercover (if equipped)

• Use a trim clip removal tool and/or Phillips screwdriver to remove the clips/screws and lower the splash shield.

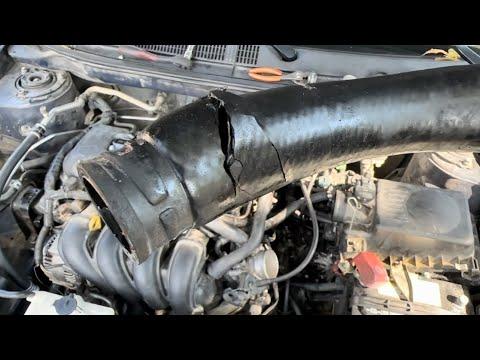

Step 4: Remove the upper radiator hose

• Locate the upper hose (top of radiator to engine).
• Release the clamps using hose clamp pliers (specialty) or slip-joint pliers, then slide each clamp back onto the hose.
• Twist the hose to break it loose. If it’s stuck, gently work the edge with a pick tool (small) (specialty) to let air in. Don’t gouge the metal neck.
• Pull the hose off both ends and aim it into the drain pan to catch drips.

Step 5: Remove the lower radiator hose

• From above and/or below, locate the lower hose (bottom of radiator to engine/water inlet).
• Use hose clamp pliers (specialty) or slip-joint pliers to move both clamps back.
• Twist and remove the hose. Keep the drain pan positioned—this hose usually releases more coolant.

Step 6: Prep the fittings and compare parts

• Use shop rags to wipe the radiator and engine hose necks clean.
• Compare the new hoses to the old ones (shape, length, bend direction).
• If the old hose is “glued on” and you must cut it, carefully slit it with a utility knife along the hose length (not around it) and peel it off. Cut the rubber, not the neck.

Step 7: Install the new hoses and clamps

• Slide new hose clamps onto each hose before installing.
• Push each hose fully onto its neck until it bottoms out.
• Position each clamp behind the raised “bead” on the neck (the little ridge that helps prevent leaks).
• Use hose clamp pliers (specialty) or slip-joint pliers to set the clamps in place.

Step 8: Reinstall the engine undercover (if removed)

• Reinstall the splash shield using the trim clip removal tool and/or Phillips screwdriver.

Step 9: Refill coolant

• Insert a funnel into the radiator fill neck.
• Add Toyota Super Long Life Coolant (pink, premixed 50/50) until the radiator is full.
• Fill the overflow reservoir to the FULL line.

Step 10: Bleed air and check for leaks

• Leave the radiator cap off for now.
• Start the engine and let it idle. Set the heater to HOT and fan to medium.
• Watch the coolant level in the radiator; as air burps out, add coolant using the funnel.
• When the radiator fan cycles on/off and heat blows hot, top off once more and install the radiator cap.
• Inspect both hoses and clamp areas with a flashlight for any seepage.

---

✅ After Repair

• Drive 10-15 minutes, then park and re-check for leaks with a flashlight.
• After the engine cools completely, re-check the overflow reservoir and top off to the FULL line if needed.
• Watch the temperature gauge over the next few drives; it should stay normal (no overheating).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $110-$510 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
