🔧 Civic - Radiator Hose Replacement

Your Civic’s radiator hoses carry coolant between the engine and radiator. Replacing a cracked, swollen, or leaking hose prevents overheating and coolant loss.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine—hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands before working underneath; never rely on a floor jack alone.
• ⚠️ Coolant is toxic—keep it off the ground and away from pets/kids; dispose of it properly.
• ⚠️ Keep hands clear of the cooling fans; they can turn on automatically.
• Battery disconnect is not required, but keep tools away from the battery terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Funnel
• Pliers (hose clamp pliers preferred)
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Trim clip removal tool
• Razor blade or hose pick (specialty)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose - Qty: 1
• Lower radiator hose - Qty: 1
• Hose clamps - Qty: 2-4
• Honda Type 2 coolant (premixed 50/50) - Qty: 2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (at least 1-2 hours after driving).
• Set the cabin heat to HOT later during bleeding; this helps coolant circulate through the heater core.
• Take a photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Place shop rags over the radiator cap.
• Slowly loosen the radiator cap to the first stop to release any leftover pressure, then remove it fully.

Step 2: Raise the front (helps access the lower hose)

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the front center jack point.
• Set the car onto jack stands (rated 3-ton minimum) at the pinch welds.

Step 3: Drain coolant from the radiator

• Slide a drain pan (at least 2-gallon) under the radiator drain cock (also called a petcock, the small plastic drain valve at the bottom of the radiator).
• Turn the drain cock slowly using your fingers; if it’s tight, use a flat-blade screwdriver gently.
• Let coolant drain until the flow slows to a drip.

Step 4: Remove any splash shield pieces (if equipped)

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket with a 1/4" drive ratchet to remove any small bolts holding the shield.
• Move the shield aside for access to the lower radiator hose area.

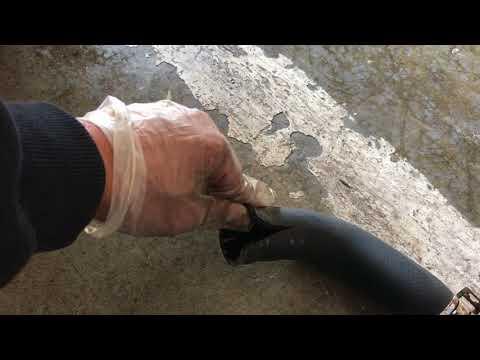

Step 5: Replace the upper radiator hose (top hose)

• Locate the upper hose running from the top of the radiator to the thermostat housing at the engine.
• Use pliers (hose clamp pliers preferred) to compress the spring clamp and slide it back on the hose.
• Twist the hose by hand to break it loose, then pull it off. If it’s stuck, carefully use a razor blade or hose pick (specialty) to free the edge without gouging the radiator/metal neck.
• Wipe the hose necks clean using shop rags.
• Install the new hose fully onto both fittings (it should seat past the bead).
• Reposition the clamps in the same spot as original, behind the bead.

Step 6: Replace the lower radiator hose (bottom hose)

• From underneath, locate the lower hose from the bottom of the radiator to the engine-side inlet.
• Use pliers (hose clamp pliers preferred) to compress the clamps and slide them back.
• Remove the hose by twisting and pulling. Keep the drain pan (at least 2-gallon) underneath—more coolant will come out.
• Clean both hose necks with shop rags.
• Install the new lower hose fully and reinstall clamps in their original positions.

Step 7: Reinstall splash shields

• Reposition the shield.
• Reinstall bolts using a 10mm socket and 1/4" drive ratchet.
• Reinstall clips using the trim clip removal tool (press the centers to lock, if applicable).

Step 8: Close the radiator drain and refill coolant

• Close the radiator drain cock by hand until snug (do not over-tighten; it’s plastic).
• Use a funnel to fill the radiator with Honda Type 2 coolant (premixed 50/50) until full.
• Fill the overflow reservoir to the MAX line.

Step 9: Bleed air from the cooling system

• Leave the radiator cap off.
• Start the engine and set the heater to the hottest setting.
• Let the engine idle and watch the coolant level in the radiator; add coolant with the funnel as it drops.
• When the radiator fans cycle on and off at least once, lightly rev to ~2,000 RPM a few times to help purge air.
• Once bubbles stop and the level stays steady, install the radiator cap.

Step 10: Lower the car and final top-off

• Use the floor jack (rated 3-ton minimum) to lift slightly, remove jack stands (rated 3-ton minimum), then lower the car.
• Recheck the overflow reservoir and top to MAX if needed using the funnel.

---

✅ After Repair

• Start the engine and inspect both hose ends for seepage or drips.
• Take a 10-15 minute test drive while watching the temperature gauge (it should stay normal).
• Let the engine fully cool, then recheck the overflow level and top off to MAX if needed.
• Recheck for leaks again the next morning (cold engine).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $45-$140 (parts only)

You Save: $175-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
