🔧 A3 - Water Pump Replacement

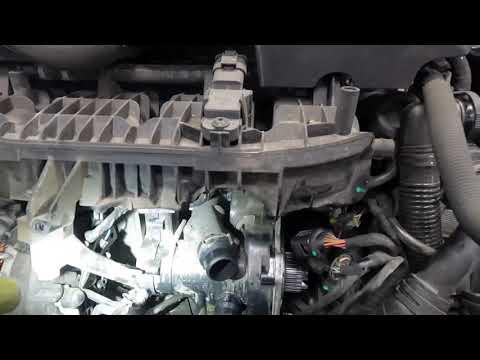

On your A3, the water pump is part of the coolant module on the engine and it’s a common leak point as the seals and plastic housing age. Replacing it stops coolant loss and prevents overheating, which can quickly cause engine damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: This covers the common EA888 1.8T coolant pump/thermostat module replacement used on your A3.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant tank hot; let the engine cool fully.
• ⚠️ Support the car on jack stands before working underneath.
• ⚠️ Coolant is toxic—use gloves, catch pan, and clean spills.
• ⚠️ Keep fingers/tools clear of the serpentine belt path.
• ⚠️ If you unplug electrical connectors near the alternator, disconnect the negative battery terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Shop towels
• Metric socket set 8mm-18mm
• Ratchet 3/8"
• Extensions 3/8"
• Torque wrench 5-60 Nm
• Torx bit set T20-T30
• Triple-square bit set M10
• Pliers (hose clamp)
• Pick tool (hose seal) (specialty)
• Serpentine belt tool (specialty)
• Cooling system vacuum fill tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump/coolant module assembly - Qty: 1
• Water pump/coolant module seals/O-rings (kit) - Qty: 1
• Coolant (Audi/VW-compatible G13 or current approved equivalent) - Qty: 2-3 gallons premix or 1-1.5 gallons concentrate
• Serpentine belt - Qty: 1
• Hose clamps (assorted, coolant-rated) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (cold upper radiator hose and cold coolant tank).
• Raise the front of the car with a floor jack and support it securely with jack stands.
• Remove the lower engine splash shield using a Torx T25/T30 bit.
• If you’ll unplug alternator-area connectors, disconnect the negative battery terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator area.
• Remove the coolant expansion tank cap slowly by hand (only when cold).
• Open the lower radiator drain (if equipped) using a flat trim tool or loosen the lower radiator hose clamp using pliers (hose clamp) and slide the hose off carefully.
• Tip: Aim the hose into the drain pan.

Step 2: Remove the intake ducting for access

• Remove the engine cover by pulling upward firmly by hand.
• Loosen intake hose clamps using an 8mm socket (or appropriate driver) and disconnect the intake tube as needed.
• Unclip any electrical connectors in the way using a trim tool (a trim tool is a plastic pry tool that helps avoid breaking clips).

Step 3: Remove the serpentine belt

• Note the belt routing (take a photo).
• Use a serpentine belt tool (specialty) to rotate the tensioner and relieve belt tension (this tool gives leverage in tight spaces).
• Slip the belt off one pulley, then remove it fully.

Step 4: Move components for clearance (as needed)

• If the front-side bracketry or hoses block the coolant module, remove fasteners using a 10mm socket and Torx T30 bit.
• Do not let the alternator hang by wiring—support it if you unbolt any mounts using a bungee cord and shop towels.

Step 5: Disconnect coolant hoses from the coolant module

• Use pliers (hose clamp) to move spring clamps back.
• Twist hoses gently to break them free, then pull off.
• If a hose is stuck, use a pick tool (hose seal) (specialty) carefully to lift the edge of the hose (a pick tool is a small hook that helps separate a stuck seal without tearing it).
• Plug open hoses with shop towels to reduce dripping.

Step 6: Unbolt and remove the water pump/coolant module

• Remove the module mounting bolts using a 10mm socket and/or Torx bit (fastener heads vary by location).
• Pull the module straight off the engine, keeping it level to avoid spilling more coolant.
• Clean the engine sealing surface with shop towels (no gouging or scraping).

Step 7: Install the new module with new seals

• Install new O-rings/seals from the kit onto the new module by hand (lightly wet them with fresh coolant).
• Position the module onto the engine and hand-start all bolts.
• Tighten bolts evenly using a torque wrench 5-60 Nm: Torque to 9 Nm (80 in-lbs) unless your replacement part instructions specify otherwise.
• Tip: Tighten in a crisscross pattern.

Step 8: Reconnect hoses and reinstall removed parts

• Reconnect coolant hoses fully, then reinstall clamps using pliers (hose clamp).
• Reinstall any brackets/fasteners removed using a 10mm socket and Torx T30 bit.
• Reinstall the intake ducting using an 8mm socket.

Step 9: Install a new serpentine belt

• Route the new belt according to your photo/diagram.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slide the belt onto the final pulley.
• Double-check the belt is centered in every pulley groove.

Step 10: Refill and bleed the cooling system

• Best method: use a cooling system vacuum fill tool (specialty) to fill without air pockets (it pulls a vacuum, then “sucks” coolant in).
• Manual method: use a funnel to fill the expansion tank to the MAX line with the correct coolant mix.
• Start the engine and set cabin heat to HOT (max temp) with the fan on low.
• Let the engine idle and warm up while watching the coolant level; top off as the level drops.
• Check for leaks at every hose connection and around the module using safety glasses and a bright light.

Step 11: Reinstall the splash shield and lower the car

• Reinstall the lower splash shield using a Torx T25/T30 bit.
• Lower the car safely using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Let the engine reach normal temperature, then shut it off and recheck coolant level after it cools.
• Look underneath for drips and inspect the new module area with a flashlight.
• On the next 2-3 drives, recheck the coolant level each morning (cold engine) and top off if needed.
• If you have a warning light for low coolant or overheating, stop driving and recheck for leaks/air pockets.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
