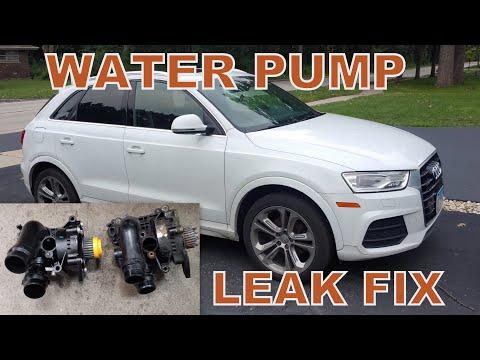

🔧 Q3 - Water Pump Replacement

On your Q3’s 2.0T engine, the water pump is part of a coolant module that commonly leaks from the housing/O-ring. Replacing it stops coolant loss and prevents overheating and engine damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: 2.0T uses the common water pump/thermostat module on the front of the engine.

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands before going underneath.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Disconnect the battery negative terminal if you’ll unplug multiple engine connectors.
• ⚠️ Coolant is toxic—capture it in a drain pan and dispose of it properly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Pick tool
• Hose clamp pliers
• Razor scraper
• Shop towels
• Socket set (8mm, 10mm, 13mm sockets)
• Torx bit set (T20, T25, T30)
• Ratchet
• 3/8" torque wrench (5–60 Nm range)
• Serpentine belt tool or 16mm wrench
• Flathead screwdriver
• Coolant vacuum fill tool (specialty)
• Cooling system pressure tester (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump/thermostat housing assembly - Qty: 1
• Water pump/thermostat housing gasket/O-ring kit - Qty: 1
• Coolant (Audi/VW G13 or approved equivalent) - Qty: 2-3 gallons (mixed 50/50)
• Serpentine belt - Qty: 1 Optional but smart if soaked/cracked
• Hose clamps - Qty: 2-6 If any are damaged

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (best is overnight).
• Remove the engine cover by pulling straight upward with your hands.
• If disconnecting power: use a 10mm socket to disconnect the battery negative terminal and isolate it so it can’t spring back.
• Set the heater to maximum heat later during bleeding (this helps move coolant through the heater core).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack and support with jack stands at the correct lift points.
• Use Torx T25 and a trim clip removal tool to remove the lower engine splash shield/undertray fasteners.

Step 2: Drain the coolant

• Place a drain pan under the radiator area.
• Slowly open the coolant expansion tank cap to release any leftover pressure.
• Use hose clamp pliers to release the lower radiator hose clamp, then carefully pull the hose off (use a pick tool to break the seal if it’s stuck).
• Let coolant drain completely, then reinstall the hose temporarily to prevent dripping while you work.

Step 3: Remove the intake ducting/airbox for access

• Use a flathead screwdriver to loosen intake hose clamps.
• Use a Torx T25 and 10mm socket to remove the airbox/intake snorkel fasteners (as equipped).
• Lift the airbox out carefully and set it aside.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool or 16mm wrench to rotate the belt tensioner and relieve tension.
• Slide the belt off one pulley and slowly release the tensioner.
• Tip: Draw a belt routing sketch first.

Step 5: Disconnect water pump electrical connector(s) and coolant hoses

• Unplug the connector(s) at the pump/module by hand; use a pick tool gently if the lock tab is stubborn.
• Use hose clamp pliers to move clamps back, then remove the coolant hoses from the pump/module.
• Use shop towels to catch remaining coolant.

Step 6: Remove the water pump/thermostat module fasteners

• Use a 10mm socket and Torx T30 (varies by fastener type) to remove the module mounting bolts.
• Remove bolts evenly, then pull the module straight off the engine.
• Tip: Keep bolts in order; lengths may differ.

Step 7: Clean the sealing surface

• Use a razor scraper and shop towels to clean the engine mating surface.
• Do not gouge the aluminum sealing surface.

Step 8: Install the new water pump/thermostat module

• Install the new gasket/O-rings onto the new module (a light film of clean coolant on O-rings helps them seat).
• Position the module and start all bolts by hand.
• Tighten bolts evenly using a torque wrench: Torque to 9 Nm (80 in-lbs) unless your replacement kit specifies otherwise.

Step 9: Reconnect hoses, clamps, and electrical connectors

• Reinstall coolant hoses fully seated and position clamps with hose clamp pliers.
• Reconnect electrical connector(s) until they click.

Step 10: Reinstall the serpentine belt and intake parts

• Route the belt correctly and use a serpentine belt tool or 16mm wrench to move the tensioner while you slip the belt into place.
• Reinstall the airbox/intake ducting using a Torx T25 and 10mm socket.

Step 11: Refill and bleed the cooling system

• Best method: use a coolant vacuum fill tool (specialty) to pull vacuum, then refill with Audi/VW G13 coolant mixed 50/50.
• No vacuum tool: slowly fill the expansion tank with a funnel to the MAX line, squeeze the upper radiator hose by hand a few times to burp air.
• Start the engine and set cabin heat to HOT; let it idle and watch coolant level.
• Add coolant as the level drops; do not let the tank run empty.
• Shut the engine off if temperature climbs abnormally or if you see no circulation.

Step 12: Reinstall the lower splash shield and lower the vehicle

• Reinstall the undertray using Torx T25 and a trim clip removal tool as needed.
• Lower the vehicle safely using the floor jack.

---

✅ After Repair

• Top off coolant to the MAX mark when cold (next morning check is ideal).
• Use a cooling system pressure tester (specialty) to pressure-test for leaks.
• Inspect around the pump/module and hose connections with a flashlight after the first drive.
• Verify strong cabin heat and stable engine temperature.
• Recheck for coolant smell or drips over the next 2–3 days.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,400 (parts + labor)

DIY Cost: $250-$450 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
