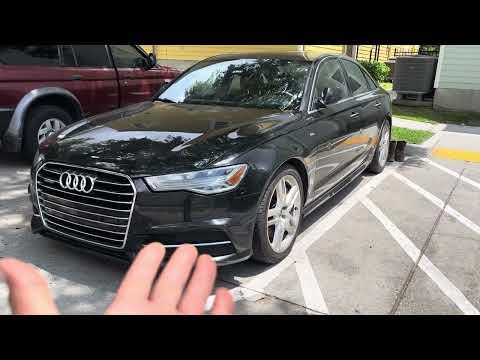

🔧 A6 - Water Pump Replacement

On your A6, the water pump circulates coolant through the engine and radiator. When it leaks or the thermostat/pump housing fails, you can lose coolant, overheat, or get warning lights.

Assumption: This covers the common 2.0T water pump/thermostat housing assembly layout; exact fasteners/torques can vary by engine code—verify if anything differs on your engine.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cold engine; hot coolant can cause severe burns.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Coolant is toxic; use a drain pan and dispose of it properly.
• ⚠️ If you disconnect the alternator wiring, disconnect the negative battery terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-liter)
• Funnel
• Trim clip remover
• Pick tool
• Hose clamp pliers
• Torx T25 screwdriver
• Torx T30 screwdriver
• Torx T45 bit
• Ratchet (3/8")
• Ratchet (1/4")
• Extensions (3" and 6")
• 10mm socket
• 13mm socket
• 16mm socket
• 6mm hex bit socket
• Triple-square bit set (M8, M10)
• Torque wrench (5-60 Nm range)
• Torque wrench (40-200 Nm range)
• Cooling system vacuum refill tool (specialty)
• OBD scan tool with output tests (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump / thermostat housing assembly - Qty: 1
• Water pump/thermostat seals and O-rings kit - Qty: 1
• Audi/VW coolant concentrate (G12evo/G13 equivalent) - Qty: 2-3 liters
• Distilled water - Qty: 2-3 liters
• Serpentine belt - Qty: 1
• Hose clamps (assorted, worm-gear style) - Qty: 1 set

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (ideally overnight).
• 🔋 If you will remove the alternator wiring: use a 10mm socket to disconnect the negative battery terminal first.
• 🧪 Plan to refill with a 50/50 mix of approved coolant concentrate and distilled water unless the coolant you buy is pre-mixed.
• 🧰 A vacuum refill tool is strongly recommended to prevent air pockets (air trapped in the cooling system can cause overheating).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack to lift the front jack point, then support with jack stands.
• Use a Torx T25 screwdriver and Torx T30 screwdriver to remove the belly pan / splash shield fasteners.
• Use a trim clip remover for any plastic push-clips.

Step 2: Drain the coolant

• Place a drain pan under the radiator/engine area.
• Use hose clamp pliers to release the lower radiator hose clamp (or the lowest accessible coolant hose) and carefully pull the hose free.
• Tip: Twist the hose to break it loose.
• Open the coolant reservoir cap slowly to help it drain (only when fully cold).

Step 3: Remove the engine cover and intake ducting (as needed for access)

• Pull up to remove the engine cover by hand.
• Use a 10mm socket and Torx T30 screwdriver to remove any intake snorkel/duct brackets blocking access to the front of the engine.

Step 4: Remove the serpentine belt

• Use a 16mm socket on the belt tensioner and rotate it to relieve tension.
• Slip the belt off and release the tensioner slowly.
• Inspect the belt; if it has cracks or glazing, replace it.

Step 5: Move/remove components blocking the water pump area (commonly the alternator)

• If alternator removal is required for access: disconnect battery negative first using a 10mm socket.
• Use a 13mm socket to remove the alternator power cable nut (cover the terminal afterward).
• Unplug the alternator connector by hand (use a pick tool gently if the lock tab is stubborn).
• Use triple-square M10 (or 6mm hex bit socket, depending on fastener style) to remove alternator mounting bolts.
• Remove the alternator and set it aside.

Step 6: Disconnect coolant hoses and electrical connectors from the pump/thermostat housing

• Place rags under the housing to catch spills.
• Use hose clamp pliers to release hose clamps, then remove the hoses.
• Use a pick tool to help lift hose edges if stuck (do not gouge the plastic housing).
• Unplug any coolant temperature sensor/thermostat connectors by hand.

Step 7: Remove the water pump/thermostat housing assembly

• Use a 10mm socket and/or Torx T30 screwdriver to remove the housing fasteners (varies by version).
• Remove the housing from the engine.
• Clean the mating surface with a clean rag; do not scratch aluminum sealing surfaces.

Step 8: Install new seals and the new housing

• Install new O-rings/seals from the kit (lightly wet them with clean coolant so they don’t pinch).
• Position the new housing and start all bolts by hand.
• Tighten evenly in a crisscross pattern using a torque wrench (5-60 Nm range).
• Torque to 10 Nm (7 ft-lbs) for small housing bolts (common spec on this setup; verify if your bolts differ).

Step 9: Reconnect hoses, clamps, and connectors

• Reinstall hoses fully seated, then secure clamps using hose clamp pliers.
• Reconnect electrical connectors by hand until they click.
• Tip: Mis-seated hoses cause slow leaks.

Step 10: Reinstall the alternator (if removed) and belt

• Reinstall the alternator and hand-start all bolts.
• Use triple-square M10 (or 6mm hex bit socket) to tighten bolts, then use a torque wrench (40-200 Nm range).
• Torque to 45 Nm (33 ft-lbs) for alternator mounting bolts (common spec; verify if your bolts differ).
• Reconnect the alternator electrical plug and power cable using a 13mm socket.
• Torque to 15 Nm (11 ft-lbs) for the alternator B+ nut (common spec; verify if your nut differs).
• Route the belt correctly, rotate tensioner with a 16mm socket, and slip the belt on.

Step 11: Refill and bleed the cooling system

• Best method: use a cooling system vacuum refill tool (specialty) to pull vacuum and refill with 50/50 coolant mix.
• Basic method (if no vacuum tool): use a funnel to slowly fill the reservoir to MAX.
• Set cabin heat to HOT and fan to LOW.
• Start the engine and let it idle; watch coolant level and add as it drops.
• When warm, briefly raise RPM to ~2000 for 10-15 seconds a few times to help purge air.
• Optional: use an OBD scan tool with output tests (specialty) to run the auxiliary coolant pump to help bleed (if supported).

Step 12: Reinstall the splash shield and lower the car

• Reinstall the belly pan using Torx T25 screwdriver and Torx T30 screwdriver.
• Lower the car using the floor jack.

---

✅ After Repair

• ✅ Check for leaks with the engine running and after a short drive (look under the front of the engine).
• ✅ Recheck coolant level the next morning (cold engine) and top off to MAX if needed.
• ✅ If you have a scan tool, scan for cooling-system codes and clear any stored faults after the repair.
• ✅ Watch the temperature gauge on the first few trips; shut down if it overheats.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $720-$1,350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
