🔧 CX-50 - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. If it’s leaking, noisy, or failing, replacing it prevents overheating and engine damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant system hot; let the engine cool fully.
• ⚠️ Support the CX-50 on jack stands; never rely on a floor jack.
• ⚠️ Keep hands/clothes away from the belt path and fans.
• ⚠️ Coolant is toxic; use a drain pan and dispose of it properly.
• ⚠️ If you unplug any charging/engine electrical connectors, disconnect the negative battery cable first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-liter)
• Funnel
• Shop towels
• Trim clip removal tool
• Ratchet (3/8")
• Socket set: 8mm, 10mm, 12mm, 14mm
• Extension set (3/8")
• Torque wrench (3/8")
• Serpentine belt tool (specialty)
• Pliers (hose clamp pliers)
• Plastic gasket scraper
• Coolant vacuum fill tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket/O-ring (as applicable) - Qty: 1
• Engine coolant (Mazda FL-22 equivalent, pre-mixed) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1
• Hose clamps (assorted) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• Raise the front and support with jack stands at the proper lift points.
• If you’ll unplug any alternator/engine connectors, disconnect the negative battery terminal using a 10mm socket.
• A serpentine belt tensioner is spring-loaded; a serpentine belt tool (specialty) is a long handled wrench made for safely rotating the tensioner.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower engine cover

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket to remove any cover bolts.
• Lower the cover and set it aside.

Step 2: Drain the coolant

• Place a drain pan (at least 10-liter) under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Open the radiator drain (petcock) carefully and drain coolant fully into the pan.
• Save a sample if diagnosing contamination.

Step 3: Remove the serpentine drive belt

• Note the belt routing before removal (take a photo).
• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve tension.
• Slide the belt off one pulley, then remove the belt from the rest.

Step 4: Gain access to the water pump

• Depending on access, remove any intake ducting/splash shields blocking the pump using a 10mm socket and trim clip removal tool.
• If any coolant hoses attach to the pump area, use pliers (hose clamp pliers) to move clamps back, then twist the hose gently to break it free.

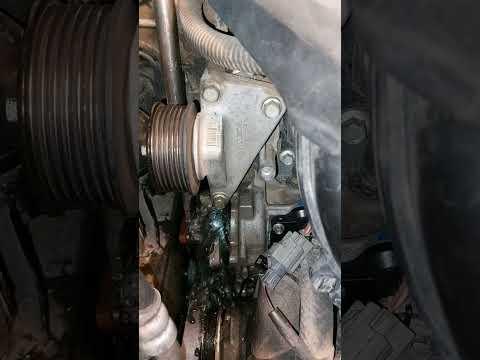

Step 5: Remove the water pump

• Put the drain pan under the pump area to catch leftover coolant.
• Remove the water pump mounting bolts using a 10mm socket and 12mm socket (bolt sizes can vary by fastener location).
• Remove the pump from the engine.
• Use a plastic gasket scraper to clean the mating surface carefully (do not gouge aluminum).

Step 6: Install the new water pump

• Install the new water pump gasket/O-ring onto the new pump (do not reuse the old seal).
• Position the new pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a ratchet (3/8").
• Final tighten with a torque wrench (3/8"): Torque to Mazda specification for your CX-50 water pump fasteners.

Step 7: Reinstall belt and any removed components

• Reinstall any hoses and clamps using pliers (hose clamp pliers).
• Reinstall any removed ducts/shields using a 10mm socket.
• Route the belt correctly, rotate the tensioner with the serpentine belt tool (specialty), and slip the belt into place.
• Double-check the belt is fully seated on every pulley groove.

Step 8: Refill and bleed the cooling system

• Best method: use a coolant vacuum fill tool (specialty) and refill with engine coolant (Mazda FL-22 equivalent, pre-mixed).
• If filling normally: use a funnel to fill the reservoir to the correct level.
• Start the engine and set the cabin heat to HOT, fan on low.
• Let the engine warm up and watch for leaks. Top off coolant as the level drops.

Step 9: Reinstall the lower engine cover

• Reinstall the cover using the 10mm socket and trim clip removal tool.

---

✅ After Repair

• Bring the engine to normal operating temperature and confirm the heater blows hot.
• Check for leaks around the pump, hose connections, and under the CX-50.
• After a full cool-down, recheck the coolant level and top off if needed.
• If you see overheating, no cabin heat, or gurgling, stop and re-bleed the cooling system.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹55,000 (parts + labor)

DIY Cost: ₹7,000-₹18,000 (parts only)

You Save: ₹18,000-₹37,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 3-6 hours.

---
