🔧 Altima - Water Pump Replacement

You’ll be removing the drive belt, draining coolant, swapping the water pump, then refilling and bleeding the cooling system. The water pump circulates coolant; if it leaks or fails, the engine can overheat and be badly damaged.

Difficulty Level: Intermediate | Estimated Time: 3–5 hours

---

⚠️ Safety & Precautions

• 🛑 Always work on a cold engine. Hot coolant can cause severe burns.
• 🧯 Keep coolant away from children and pets; it is highly toxic and sweet-tasting.
• 🧱 Support the front passenger side of the car with jack stands, never only a jack.
• 🔌 You do not need to disconnect the battery for this job, but keep metal tools away from the battery terminals.
• 💧 Use a drain pan and do not dump coolant on the ground; dispose of it at a recycling center or workshop.
• 🔧 After the repair, you must remove all air from the cooling system to avoid overheating.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 2-ton or higher)
• 🧰 Jack stands (rated 2-ton or higher, Qty: 2)
• 🪛 Wheel chocks
• 😷 Safety glasses
• 🧤 Mechanic gloves
• 🧰 3/8" drive ratchet
• 🧰 1/4" drive ratchet
• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 14mm socket
• 🧰 10mm combination wrench
• 🧰 12mm combination wrench
• 🧰 14mm combination wrench
• 🧰 3/8" drive torque wrench (range 5–100 ft-lbs)
• 🧰 1/4" drive torque wrench (range 40–200 in-lbs)
• 🧰 Short extension 3/8" drive (3"–6")
• 🧰 Flathead screwdriver (medium)
• 🧰 Phillips screwdriver (medium)
• 🧰 Pliers (standard slip-joint)
• 🧰 Trim clip removal tool (specialty)
• 🧰 Serpentine belt tool or long-handled 14mm wrench (specialty)
• 🧰 Coolant drain pan (at least 10 liters)
• 🧰 Plastic funnel (medium size)
• 🧰 Razor scraper or plastic gasket scraper
• 🧰 Shop towels or clean rags
• 🧰 Small wire brush
• 🧰 Work light or flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Water pump assembly with gasket or O-ring (engine 2.5L) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Nissan blue long-life coolant (50/50 premix) - Qty: 2 gallons
• 🔩 Water pump mounting bolts (optional new hardware set) - Qty: 1 set
• 🔩 Engine side cover / splash shield clips - Qty: 1 pack
• 🔩 Coolant-safe RTV sealant (if specified with your pump) - Qty: 1 tube
• 🔩 Shop towels - Qty: 1 pack
• 🔩 Brake cleaner or parts cleaner spray - Qty: 1 can

---

📋 Before You Begin

• 🅿️ Park the Altima on level ground, engage the parking brake, and put the shifter in Park.
• 🧊 Let the engine cool for at least 1–2 hours so the coolant is not hot.
• 🧱 Place wheel chocks behind the rear wheels.
• 🛠️ Lay out your tools and new parts where you can easily reach them.
• 📸 Take a clear picture of the serpentine belt routing before removal. Saves confusion later

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle

• Use the floor jack to lift the front passenger side at the designated front jacking point (just behind the front wheel on the pinch weld).
• Place jack stands under the pinch weld or frame rail and lower the car onto them using the floor jack.
• Shake the car slightly by hand to confirm it is stable on the jack stands.

Step 2: Remove the passenger front wheel and splash shields

• Use the 14mm socket and 3/8" ratchet to loosen the lug nuts, then remove the wheel fully.
• Use the trim clip removal tool and Phillips screwdriver to remove the plastic clips and screws holding the inner fender liner and lower splash shield near the crank pulley area.
• Gently pull the plastic liner away to expose the drive belt and front of the engine.

Step 3: Drain engine coolant

• Place the coolant drain pan under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand to release pressure.
• From below, use your pliers or fingers to open the radiator drain cock (plastic drain plug) over the coolant drain pan. If there is no drain plug, loosen the lower radiator hose clamp with pliers and carefully pull the hose off.
• Allow coolant to drain completely, then close the drain cock or reattach the lower radiator hose and tighten the clamp using pliers.

Step 4: Remove the serpentine drive belt

• Locate the belt tensioner pulley (spring-loaded). It usually has a bolt head for a wrench.
• Use the serpentine belt tool or long-handled 14mm wrench on the tensioner bolt to rotate the tensioner and relieve tension on the belt.
• While holding the tensioner, slip the belt off one pulley with your free hand, then slowly release the tensioner using the 14mm wrench.
• Remove the belt completely and set it aside. Compare it to your new belt to confirm length and rib count.

Step 5: Remove any brackets or engine mount obstructing access

• Some Altimas have an engine mount bracket near the water pump area. Support the engine from below with the floor jack and a wood block under the oil pan (light contact only).
• Use the 14mm socket and 3/8" ratchet to remove the engine mount bolts if they block water pump access.
• Keep bolts organized in the order you remove them.
• When reinstalling later, torque engine mount through-bolts to 90 Nm (66 ft-lbs) and mount-to-body bolts to 80 Nm (59 ft-lbs) using the 3/8" torque wrench.

Step 6: Remove the old water pump

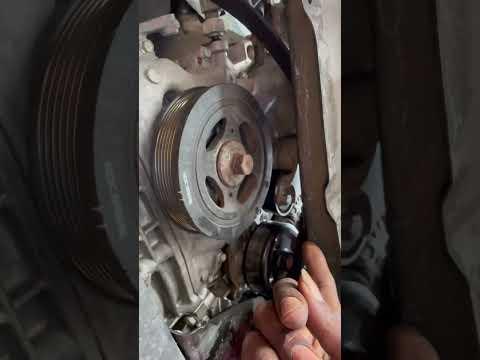

• Identify the water pump: it’s the aluminum housing with a pulley that the belt ran over, bolted to the engine block.
• Place the coolant drain pan under the pump area (some coolant will spill when you remove it).
• Use the 10mm socket and 1/4" ratchet to remove the water pump bolts evenly, one by one.
• Keep track of any bolts with different lengths and note their positions.
• Gently tap the pump housing with the handle of the flathead screwdriver to break it loose. Do not pry hard on the engine block.
• Pull the pump away and let remaining coolant drain into the coolant drain pan.

Step 7: Clean the mounting surface

• Use the razor scraper or plastic gasket scraper to carefully remove old gasket material from the engine block surface.
• Follow with the small wire brush very lightly to clean corrosion (avoid scratching the sealing surface).
• Wipe the area clean with shop towels and a bit of brake cleaner.
• Make sure no old gasket pieces fall into the coolant passages. Cover holes with rag while scraping

Step 8: Prepare and install the new water pump

• Compare the new pump to the old pump to ensure the bolt pattern and pulley line up.
• Install the new gasket or O-ring on the pump. If the manufacturer calls for sealant, apply a thin bead of coolant-safe RTV sealant where specified and wait a few minutes until it skins over.
• Position the new pump on the engine and hand-thread all bolts using your fingers.
• Use the 10mm socket and 1/4" ratchet to snug the bolts evenly in a crisscross pattern.
• Torque the water pump bolts with the 1/4" torque wrench to 10 Nm (89 in-lbs), working in a crisscross pattern.

Step 9: Reinstall any brackets or engine mount

• Reinstall the engine mount bracket or any removed brackets by hand-threading the bolts first.
• Use the 14mm socket and 3/8" ratchet to tighten the bolts.
• Torque engine mount through-bolts to 90 Nm (66 ft-lbs) and mount-to-body bolts to 80 Nm (59 ft-lbs) using the 3/8" torque wrench.
• Remove the floor jack and wood block from under the engine once everything is torqued.

Step 10: Install the new serpentine belt

• Route the new belt according to your photo or the diagram under the hood, leaving one top pulley for last.
• Use the serpentine belt tool or long-handled 14mm wrench to rotate the tensioner and relieve tension.
• Slip the belt over the last pulley, then slowly release the tensioner using the 14mm wrench.
• Check that the belt is seated correctly in all pulley grooves and not twisted.

Step 11: Reinstall splash shields and wheel

• Reposition the inner fender liner and lower splash shield.
• Use the trim clip removal tool and your hands to reinstall plastic clips, and the Phillips screwdriver for any screws.
• Reinstall the wheel and hand-thread the lug nuts.
• Use the 14mm socket and 3/8" ratchet to snug the lug nuts.
• Raise the car slightly with the floor jack, remove the jack stands, then lower the car to the ground.
• Torque the lug nuts in a star pattern to 110 Nm (81 ft-lbs) with the 3/8" torque wrench.

Step 12: Refill coolant and bleed air

• Make sure the radiator drain is closed and all hoses are attached.
• Place the plastic funnel in the coolant reservoir or radiator fill neck (depending on your layout).
• Slowly pour in the Nissan blue long-life coolant (50/50 premix) until the reservoir reaches the MAX line.
• Start the engine and set the heater to maximum heat with the fan on low.
• Let the engine idle while watching the coolant level; add more as it drops.
• Squeeze the upper radiator hose by hand (with gloves) to help push out air bubbles.
• Once the engine reaches normal operating temperature and the heater blows fully hot, watch for steady coolant level and no more large bubbles.
• Shut off the engine, top off the reservoir to the MAX line, and reinstall the cap.

Step 13: Check for leaks and final inspection

• With the engine running and warm, inspect around the water pump, hose connections, and radiator area with a work light.
• Look for any drips or wet areas. If you see leaks at the pump, gently recheck bolt torque using the 1/4" torque wrench.
• Check the belt again for correct routing and alignment.
• Clean up any spilled coolant with shop towels and dispose of old coolant properly.

---

✅ After Repair

• 🚗 Take the Altima for a short 10–15 minute drive, watching the temperature gauge. It should stay in the normal range.
• 🌡️ Turn the heater on and confirm good heat output (shows coolant is circulating and air is mostly out).
• 💧 After the engine cools completely (at least 1 hour), recheck the coolant reservoir level and top off to the MAX line if needed.
• 👀 Inspect under the car and around the pump area again for any signs of leakage.
• 🔁 Over the next couple of days, recheck coolant level and belt condition once or twice.

---

💰 DIY vs Shop Cost

Shop Cost: $500–$800 (parts + labor)

DIY Cost: $120–$250 (parts only)

You Save: $380–$550 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
