🔧 Altima - Water Pump Replacement

Replacing the water pump on your Altima means draining the cooling system, removing the drive belt and pump, then installing a new pump and fresh coolant. The water pump moves coolant through the engine, so a leaking or noisy pump should be replaced before overheating damages the engine.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only when the engine is fully cool. Hot coolant can cause serious burns.
• ⚠️ Support your Altima with jack stands. Never rely on a floor jack alone.
• ⚠️ Keep coolant away from pets and children. It is poisonous and tastes sweet.
• ⚠️ Disconnect the negative battery cable before working near the belt area.
• ⚠️ Do not spill coolant onto the drive belt or pulleys. Clean spills right away.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• 3/8-inch drive breaker bar
• Torque wrench rated 5-80 Nm
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Plastic trim clip remover
• Hose clamp pliers
• Drain pan rated 10-quart minimum
• Coolant funnel kit with spill-free adapter (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket/O-ring - Qty: 1
• Nissan-compatible blue long-life coolant 50/50 premix - Qty: 2 gallons
• Serpentine drive belt - Qty: 1
• Radiator drain plug seal - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Altima on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool completely before opening the cooling system.
• 🔋 Use a 10mm socket to disconnect the negative battery cable.
• 🚗 Place wheel chocks behind the rear wheels before lifting the front.
• 🧰 A serpentine belt is the long rubber belt that drives engine accessories like the alternator and water pump area components.
• 🧰 A torque wrench tightens bolts to an exact tightness so aluminum parts are not cracked or left loose.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Secure the Front

• Use a floor jack rated 3-ton minimum to raise the front of your Altima at the front center lift point.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands and lightly shake the car to confirm it is stable.
• Put on safety glasses and nitrile gloves.

Step 2: Remove the Lower Splash Shield

• Use a plastic trim clip remover to remove the lower splash shield clips.
• Use a 10mm socket to remove any splash shield bolts.
• Set the splash shield and fasteners aside in order.
• Tip: A small tray prevents lost clips.

Step 3: Drain the Coolant

• Place a drain pan rated 10-quart minimum under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand only after the engine is cool.
• Use a flat-blade screwdriver to carefully open the radiator drain plug if equipped.
• Let the coolant drain fully into the drain pan.
• If the drain plug seal is damaged, replace it with a new radiator drain plug seal.

Step 4: Remove the Serpentine Belt

• Use a serpentine belt tool or 3/8-inch drive breaker bar on the belt tensioner.
• A belt tensioner is a spring-loaded pulley that keeps the belt tight.
• Rotate the tensioner to release belt tension.
• Slide the belt off the pulleys by hand while holding the tensioner released.
• Slowly release the tensioner back to its rest position.
• Take a photo of the belt routing before removal if the old belt is still installed correctly.

Step 5: Access the Water Pump

• Use a 10mm socket and 12mm socket with a 3/8-inch drive ratchet and extension set to remove any small brackets or shields blocking the water pump.
• Use hose clamp pliers to move any nearby spring clamps only if a hose blocks access.
• Move hoses gently out of the way without bending them sharply.
• Tip: Do not pry on plastic coolant fittings.

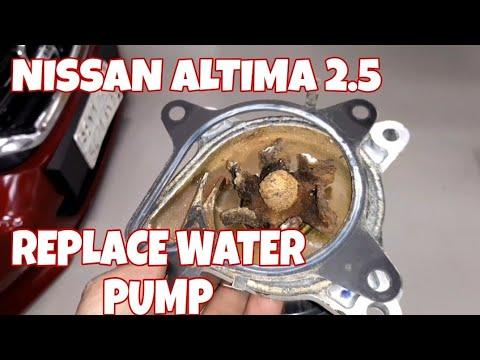

Step 6: Remove the Old Water Pump

• Place shop towels under the pump area to catch remaining coolant.
• Use a 10mm socket or 12mm socket to loosen the water pump bolts evenly.
• Remove the bolts and keep track of their locations if they are different lengths.
• Pull the water pump straight away from the engine by hand.
• If the pump is stuck, gently work it loose by hand. Do not gouge the aluminum sealing surface.

Step 7: Clean the Sealing Surface

• Use shop towels to wipe the engine-side sealing surface clean.
• Use a plastic trim clip remover carefully as a non-metal scraper if old gasket material remains.
• Make sure no old gasket, O-ring pieces, or dirt remain on the sealing surface.
• Do not use a metal screwdriver on the aluminum surface.

Step 8: Install the New Water Pump

• Install the new water pump gasket/O-ring onto the new engine water pump.
• Position the pump squarely against the engine by hand.
• Start all water pump bolts by hand first to avoid cross-threading.
• Use a 10mm socket or 12mm socket to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench rated 5-80 Nm to tighten the water pump bolts to Torque to 9.8 Nm (87 in-lbs).
• If a bracket was removed, reinstall it with a 10mm socket or 12mm socket and tighten securely unless a specific torque label is present.

Step 9: Reinstall the Serpentine Belt

• Route the new serpentine drive belt around the pulleys following the belt routing photo.
• Use a serpentine belt tool or 3/8-inch drive breaker bar to rotate the tensioner.
• Slip the belt over the final pulley by hand.
• Slowly release the tensioner.
• Check every pulley groove to make sure the belt is seated straight.

Step 10: Reinstall the Lower Splash Shield

• Raise the splash shield into place by hand.
• Use a plastic trim clip remover to reinstall the clips.
• Use a 10mm socket to reinstall the bolts.
• Tighten splash shield bolts snugly. Do not overtighten plastic or thin shield fasteners.

Step 11: Refill the Cooling System

• Close the radiator drain plug by hand, then snug it carefully with a flat-blade screwdriver if needed.
• Install a coolant funnel kit with spill-free adapter at the coolant fill neck or reservoir opening as applicable.
• Pour Nissan-compatible blue long-life coolant 50/50 premix slowly into the system.
• Fill to the proper level mark on the reservoir.
• Reconnect the negative battery cable using a 10mm socket.

Step 12: Bleed Air From the Cooling System

• Leave the spill-free funnel installed and filled partway with coolant.
• Start the engine and let it idle.
• Set the cabin heater to maximum heat and fan to low using the climate controls.
• Watch for air bubbles coming up through the funnel.
• Let the engine warm up until the upper radiator hose becomes hot and the cooling fan cycles on.
• Add coolant as the level drops.
• Turn the engine off, let it cool, then remove the coolant funnel kit.
• Top off the reservoir to the proper mark.

Step 13: Lower the Vehicle

• Use the floor jack rated 3-ton minimum to raise the front slightly off the jack stands.
• Remove the jack stands.
• Lower your Altima slowly to the ground.
• Remove the wheel chocks.

---

✅ After Repair

• ✅ Check around the water pump for leaks while the engine is idling.
• ✅ Watch the temperature gauge during the first full warm-up. Stop the engine if it rises above normal.
• ✅ After the first drive, let the engine cool completely and recheck the coolant level.
• ✅ Recheck for leaks the next morning before driving.
• ✅ Dispose of old coolant at a recycling center or auto parts store that accepts coolant.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$490 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
