🔧 CX-5 - Water Pump Replacement

On your CX-5’s 2.5L engine, the water pump circulates coolant through the engine and radiator. Replacing it involves draining coolant, removing the serpentine belt, unbolting the pump from the front of the engine, then refilling and properly bleeding the cooling system so it doesn’t overheat.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine only; hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands; never rely on a jack.
• ⚠️ Keep coolant off paint and away from pets; it’s toxic.
• ⚠️ If you loosen any engine mount, support the engine with a support bar or floor jack and wood block.
• ⚠️ Battery disconnect is recommended if you’ll be working near the alternator main power cable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• Phillips screwdriver
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set (8mm-19mm)
• Wrench set (8mm-19mm)
• Torque wrench (10-80 Nm range)
• Torque wrench (40-200 Nm range)
• Serpentine belt tool (specialty)
• Pliers (hose clamp)
• Plastic razor scraper
• Shop rags
• Flashlight
• OBD-II scan tool (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Engine coolant (Mazda FL22 equivalent, premixed) - Qty: 2-3 gallons
• Serpentine belt - Qty: 1
• Hose clamps (coolant, if originals are weak) - Qty: 1-4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely (ideally overnight).
• Set the HVAC temperature to full HOT (this helps coolant flow through the heater core during bleeding).
• Disconnect the negative battery cable using a 10mm socket if you’ll be working near the alternator wiring.
• Raise the front of the vehicle using a floor jack and support it with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right-front wheel and lower splash shields

• Loosen the lug nuts with a 19mm socket (before lifting).
• Lift and support the vehicle using a floor jack and jack stands.
• Remove the wheel with a 19mm socket.
• Remove the under-cover and right-side splash shield fasteners using a trim clip removal tool, Phillips screwdriver, and 10mm socket.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain.
• Open the radiator cap (only when cold).
• Open the radiator drain cock using a flat-blade screwdriver and drain coolant fully.
• Close the drain cock when finished (snug only; do not overtighten).

Step 3: Remove the serpentine belt

• From the passenger-side wheel well, locate the belt and belt tensioner.
• Rotate the tensioner using a serpentine belt tool (specialty) to release belt tension.
• Slide the belt off one pulley, then remove it completely.
• Tip: Take a photo of belt routing first.

Step 4: Disconnect hoses at the water pump area

• Use pliers (hose clamp) to slide the clamp back.
• Twist the hose gently to break it free, then pull it off.
• Catch remaining coolant with the drain pan and wipe spills with shop rags.

Step 5: Remove the water pump

• Remove any obstructing brackets/fasteners near the pump using a 10mm socket and 12mm socket.
• Remove the water pump mounting bolts using a 10mm socket.
• Pull the pump straight out. If it sticks, tap lightly with the handle of a wrench—do not pry hard against sealing surfaces.

Step 6: Clean the sealing surface

• Use a plastic razor scraper to remove old gasket material or residue.
• Wipe the surface clean with shop rags. Do not let debris fall into the engine.

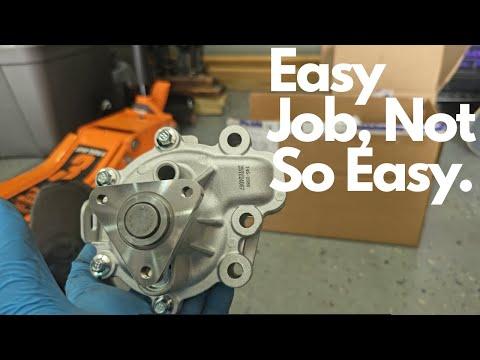

Step 7: Install the new water pump

• Install the new water pump gasket / O-ring onto the pump (or into its groove), matching the original orientation.
• Position the new pump and start all bolts by hand.
• Tighten bolts evenly using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) using a torque wrench (10-80 Nm range).

Step 8: Reconnect hoses

• Push hoses fully onto their fittings.
• Reposition clamps using pliers (hose clamp).

Step 9: Install the new serpentine belt

• Route the new belt the same way as the original.
• Rotate the tensioner with the serpentine belt tool (specialty) and slip the belt over the final pulley.
• Double-check that the belt ribs sit correctly in every pulley groove using a flashlight.

Step 10: Reinstall splash shields and the wheel

• Reinstall under-cover/splash shield fasteners using a 10mm socket, Phillips screwdriver, and trim clip removal tool.
• Reinstall the wheel using a 19mm socket.
• Lower the vehicle and torque lug nuts in a star pattern.
• Torque to 108 Nm (80 ft-lbs) using a torque wrench (40-200 Nm range).

Step 11: Refill and bleed the cooling system

• Fill the radiator slowly with engine coolant (Mazda FL22 equivalent, premixed) using a funnel.
• Fill the overflow reservoir to the FULL mark.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and let it idle with the radiator cap off until the thermostat opens (upper hose gets hot).
• Turn the heater to HOT and fan to low; add coolant as the level drops.
• Once bubbles stop and level stabilizes, install the radiator cap.
• Let the engine reach normal operating temperature and verify warm heat from the vents.

---

✅ After Repair

• Check for leaks around the water pump and hose connections with a flashlight.
• Test drive 10-15 minutes, then recheck coolant level after the engine cools and top off the reservoir if needed.
• If the temperature warning light comes on or heat is weak, stop and re-bleed (air is still trapped).
• If available, scan for codes using an OBD-II scan tool (optional) and clear any cooling-system related stored codes.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,250 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $370-$1,090 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
