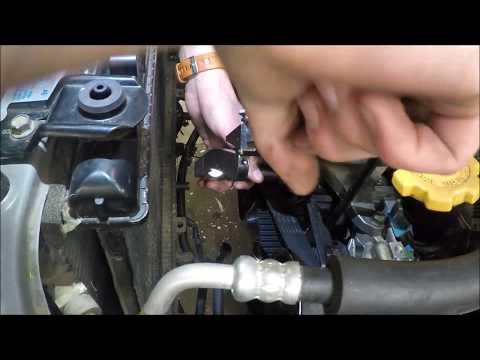

🔧 Forester - Water Pump Replacement

On your Forester, the water pump circulates coolant through the engine and radiator. If the pump is leaking, noisy, or not circulating coolant well, replacement prevents overheating and engine damage.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine to avoid serious burns from hot coolant.
• ⚠️ Coolant is toxic—use a drain pan, avoid skin contact, and keep away from kids/pets.
• ⚠️ Support the Forester with jack stands; never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery terminal if you’ll be unplugging radiator fans (prevents accidental fan operation).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Spill-free coolant funnel kit
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 12mm socket
• 14mm socket
• Torque wrench (3/8" drive, 5–60 ft-lb range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Hose clamp pliers
• Plastic gasket scraper
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Engine coolant (Subaru Super Coolant equivalent, pre-mixed) - Qty: 2 gallons
• Accessory drive belt - Qty: 1 Optional but recommended if worn
• New hose clamps - Qty: 2 Only if originals are weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool to the touch).
• If you plan to unplug the radiator fans, disconnect the negative battery cable using a 10mm socket.
• Set your heater to full HOT later during bleeding (this helps move coolant through the heater core).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower cover

• Lift the front with a floor jack (rated 3-ton minimum) and set it securely on jack stands (rated 3-ton minimum).
• Remove the engine under cover clips/fasteners using a trim clip removal tool and a 10mm socket.

Step 2: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator.
• Slowly remove the radiator cap (only if cool) and open the radiator drain cock to drain coolant. Use nitrile gloves and safety glasses.
• Close the drain cock once draining slows to a drip.

Step 3: Remove the air intake ducting (as needed for access)

• Loosen intake clamps with a 10mm socket and reposition the ducting for working room.
• Use shop rags to cover open intake openings. Prevents dropping hardware inside

Step 4: Remove the radiator fans for clearance

• Unplug the fan electrical connectors by hand (press the tab, then pull).
• Remove fan assembly bolts using a 10mm socket and 3/8" drive ratchet.
• Lift the fan assemblies straight up and out carefully.

Step 5: Remove the accessory drive belt

• Rotate the belt tensioner using a serpentine belt tool (specialty) to relieve belt tension.
• Slip the belt off one pulley, then remove it fully.
• Take a quick photo of belt routing

Step 6: Remove the water pump pulley

• Hold the pulley from turning and remove the pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.

Step 7: Remove the water pump

• Place shop rags under the pump area to catch remaining coolant.
• Remove the water pump mounting bolts using a 10mm socket and 3/8" drive ratchet.
• Gently separate the pump from the engine. If it’s stuck, tap lightly by hand—do not pry hard on aluminum surfaces.

Step 8: Clean the sealing surface

• Clean the engine sealing surface using a plastic gasket scraper and shop rags.
• Make sure no old gasket material or debris falls into the engine opening.

Step 9: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match orientation exactly).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten using a torque wrench (3/8" drive, 5–60 ft-lb range): Torque to 10 N·m (7.4 ft-lb).

Step 10: Reinstall the water pump pulley and belt

• Install the pulley and start bolts by hand.
• Tighten pulley bolts with a 10mm socket: Torque to 10 N·m (7.4 ft-lb).
• Route the belt back on and rotate the tensioner with the serpentine belt tool (specialty) to slip the belt into place.

Step 11: Reinstall radiator fans and under cover

• Reinstall the fan assemblies and tighten bolts using a 10mm socket.
• Reconnect fan electrical connectors by hand until they click.
• Reinstall the under cover using a trim clip removal tool and 10mm socket.

Step 12: Refill and bleed the cooling system

• Lower the Forester off the jack stands using the floor jack (rated 3-ton minimum).
• Install a spill-free coolant funnel kit at the radiator fill point.
• Slowly add engine coolant (Subaru Super Coolant equivalent, pre-mixed) until full.
• Start the engine and set the heater to HOT. Let it idle and watch the funnel level.
• As the engine warms, squeeze the upper radiator hose carefully (with nitrile gloves) to help burp air.
• When bubbles stop and the radiator fans cycle normally, shut the engine off and let it cool, then top off as needed.

---

✅ After Repair

• Check for leaks around the water pump and hose connections with the engine idling.
• Test drive 10–15 minutes, then recheck coolant level after a full cool-down.
• Verify the temperature gauge stays normal and cabin heat works (confirms coolant flow through heater core).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $510-$730 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
