🔧 Forester - Water Pump Replacement

On your Forester, the water pump circulates coolant through the engine and radiator. Replacing it involves draining coolant, removing the drive belt and front-access components, then swapping the pump and gasket and refilling/bleeding the cooling system.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• 🛑 Work only on a fully cool engine; hot coolant can cause severe burns.
• 🛑 Support the vehicle with jack stands; never rely on a jack alone.
• 🛑 Keep coolant off paint and away from pets; it’s toxic.
• 🛑 Disconnect the negative battery terminal if you’ll unplug radiator fans.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• Pliers (hose clamp)
• Ratchet (3/8")
• Socket set (8mm, 10mm, 12mm, 14mm)
• Extension set (3" and 6")
• Torque wrench (5-60 Nm range)
• Serpentine belt tool (specialty)
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Subaru-approved coolant (blue, premixed 50/50) - Qty: 2 gallons
• Accessory drive belt - Qty: 1
• Thermostat - Qty: 1 Optional but strongly recommended
• Thermostat gasket - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• If you’ll remove/unplug radiator fans, disconnect the battery using a 10mm socket (negative terminal first).
• Raise the front and support it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the under cover (splash shield)

• Use a trim clip removal tool and 10mm socket to remove the clips/bolts holding the under cover.
• Set the hardware aside in a tray so nothing gets lost.

Step 2: Drain the coolant

• Place a drain pan under the radiator.
• Slowly open the radiator cap to release any leftover pressure.
• Open the radiator drain and let coolant drain fully into the pan.
• Use pliers (hose clamp) to remove the lower radiator hose if you need faster draining.

Step 3: Create working room at the front of the engine

• Remove the air intake ducting as needed using a flathead screwdriver and 10mm socket.
• If access is tight, remove the radiator fan assemblies using a 10mm socket and unplug the connectors (press the lock tab before pulling). Fans give you crucial clearance

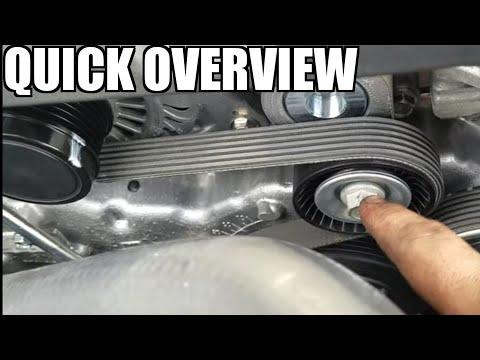

Step 4: Remove the accessory drive belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve belt tension.
• Slip the belt off the pulleys and remove it from the engine bay.
• If you’re reusing the belt (not recommended), note the rotation direction.

Step 5: Remove the water pump pulley

• Hold the pulley from turning by keeping light tension on the old belt or gripping carefully by hand.
• Use a 10mm socket to remove the pulley bolts, then remove the pulley.
• Torque to 10 Nm (7 ft-lbs) when reinstalling.

Step 6: Remove the water pump

• Place the drain pan under the pump area; more coolant will spill.
• Remove any hoses attached to the pump using pliers (hose clamp).
• Use a 10mm socket and 12mm socket (as equipped) to remove the water pump mounting bolts.
• Remove the pump. If it’s stuck, gently wiggle it—do not pry hard against aluminum surfaces.

Step 7: Clean the sealing surface

• Use a gasket scraper (plastic) to remove old gasket material from the engine surface.
• Spray brake cleaner spray on a shop towel and wipe until clean and dry.
• Clean metal-to-gasket contact prevents leaks

Step 8: Install the new water pump and gasket

• Install the new gasket/O-ring onto the new pump (make sure it sits flat and isn’t twisted).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket/12mm socket.
• Torque to 10 Nm (7 ft-lbs) for water pump bolts.

Step 9: Reinstall pulley, belt, and removed components

• Install the pulley and bolts using a 10mm socket, then torque to 10 Nm (7 ft-lbs).
• Route the belt correctly and use the serpentine belt tool (specialty) to move the tensioner and slip the belt on.
• Reinstall radiator fans (if removed) using a 10mm socket and reconnect the electrical connectors.
• Reinstall the air ducting using a flathead screwdriver and 10mm socket.

Step 10: Refill and bleed the cooling system

• Close the radiator drain.
• Use a funnel to fill the radiator and overflow tank with Subaru-approved coolant (blue, premixed 50/50).
• Start the engine and set the heater to MAX heat (fan on low) to help purge air.
• Let it idle and watch the temperature gauge; top off coolant as the level drops.
• When the radiator fans cycle on/off and heat blows consistently hot, shut the engine off and let it cool, then recheck and top off.

---

✅ After Repair

• Check for leaks around the water pump and hose connections with the engine running.
• Verify the belt tracks smoothly and isn’t squealing.
• After the first drive and full cool-down, recheck coolant level in the overflow tank and top off if needed.
• If the temperature rises abnormally, shut down and re-bleed—air pockets can cause overheating.

---
