🔧 Altima - Water Pump Replacement

You’ll be removing the drive belt, unbolting the water pump, and installing a new one, then refilling and bleeding the cooling system. The water pump circulates coolant through the engine; if it fails, the engine can quickly overheat and be damaged.

Difficulty Level: Intermediate | Estimated Time: 3–5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely (at least 1–2 hours) before opening the cooling system. Hot coolant can cause severe burns.
• ⚠️ Disconnect the negative battery cable before working near the belt and engine mount to avoid accidental cranking.
• ⚠️ Always support the car with jack stands; never rely only on a floor jack when you are working near or under the front.
• ⚠️ Coolant is toxic; avoid skin contact and keep away from children and pets. Collect and dispose of old coolant properly.
• ⚠️ You will be loosening a right engine mount; the engine must be safely supported from below before that step.
• ⚠️ Keep fingers, hair, and clothing away from the belt and pulleys at all times; do not start the engine until everything is reassembled.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Socket set (8mm–19mm)
• 🛠️ Ratchet 3/8"
• 🛠️ Long-handled ratchet or breaker bar 3/8"
• 🛠️ Torque wrench 3/8" (5–80 ft-lbs range)
• 🛠️ Short extension 3/8"
• 🛠️ Combination wrench set (8mm–19mm)
• 🛠️ E-torx or hex bit set
• 🛠️ Flat-blade screwdriver medium
• 🛠️ Phillips screwdriver medium
• 🛠️ Pry tool or trim clip remover
• 🛠️ Drain pan (at least 10-liter capacity)
• 🛠️ Funnel with long neck
• 🛠️ Pliers set (regular and hose clamp pliers)
• 🛠️ Razor scraper or plastic gasket scraper
• 🛠️ Cleaning brush small
• 🛠️ Shop rags
• 🛠️ Coolant filling / spill-free funnel kit (specialty)
• 🛠️ Floor jack pad or block of wood
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Water pump (with gasket or O-ring, PR25DD 2.5L) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Engine coolant (Nissan-compatible blue long-life, premixed 50/50) - Qty: 2–3 gallons
• 🔩 Thermostat with gasket - Qty: 1
• 🔩 Water pump mounting bolts (if corroded) - Qty: 1 set
• 🔩 Engine mount bolts (right side, single-use if stretched) - Qty: 1 set
• 🔩 Plastic clips for splash shield - Qty: 1 set
• 🔩 Coolant-safe RTV sealant (if specified for your pump) - Qty: 1 tube
• 🔩 Brake cleaner or parts cleaner - Qty: 1 can
• 🔩 Distilled water - Qty: 1–2 gallons

---

📋 Before You Begin

• Park the Altima on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Turn the ignition off, remove the key, and let the engine cool completely.
• Open the hood and note the drive belt routing. If there is no diagram sticker, take a clear photo.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• Raise the front right side with a floor jack and support the car securely with jack stands under the proper pinch weld or frame points.
• Remove the right front wheel to improve access to the belt area.
• Place a drain pan under the radiator drain area before loosening anything in the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine undercover and right splash shield

• Use a Phillips screwdriver and trim clip remover to remove the plastic clips and screws holding the front lower engine undercover.
• Lower the undercover and set it aside.
• Use the trim clip remover again to remove the right front inner fender splash shield fasteners (inside wheel well) and gently pull the shield back for access to the belt and crank pulley.
• Keep clips in a small box to avoid losing them.

Step 2: Drain the coolant

• Place the drain pan directly under the radiator drain plug (bottom of radiator, usually right side).
• Use an appropriate socket (often 10mm) or hand twist to slowly open the radiator drain plug. Do not fully remove unless needed.
• Remove the coolant reservoir cap and, if safe, the radiator cap to let air in so coolant drains faster.
• Allow coolant to fully drain. When done, close the drain plug snugly: Torque to 9 Nm (80 in-lbs) with a torque wrench if accessible.

Step 3: Support the engine and remove right engine mount (if required for clearance)

• Place a block of wood on the floor jack pad and position it under the oil pan, near the engine front. Gently raise the jack until it just supports the engine weight (do not crush the pan).
• Use a socket set (typically 14mm–18mm) and ratchet to remove the bolts and nuts holding the right engine mount and mount bracket to the body and engine.
• Carefully lift the engine slightly with the jack if needed to free the mount, then remove the mount and bracket from the area.
• Note approximate torque for reinstallation: engine mount-to-body bolts Torque to 80 Nm (59 ft-lbs); mount-to-engine bracket bolts Torque to 80 Nm (59 ft-lbs).
• Only lift engine enough to relieve pressure, not more.

Step 4: Remove the serpentine drive belt

• From the wheel well opening, locate the belt tensioner pulley (spring-loaded arm).
• Use the correct socket (usually 14mm or 16mm) on the tensioner bolt with a long-handled ratchet, and rotate the tensioner to relieve tension.
• While holding tension released, slide the belt off one of the top pulleys with your free hand.
• Slowly release the tensioner back to its rest position.
• Remove the belt completely and compare to the new one to confirm correct length and rib count.

Step 5: Remove water pump pulley (if separate)

• With the belt off, locate the water pump pulley on the front of the engine.
• Use a socket (often 10mm) and ratchet to remove the pulley bolts. You may need to hold the pulley from turning using a wrench on a bolt head or a strap if it spins.
• Remove the pulley and set it aside.
• Torque for reinstallation later: 22 Nm (16 ft-lbs) using a torque wrench.

Step 6: Disconnect hoses and access the water pump

• Identify any coolant hoses attached near or directly to the water pump housing.
• Use hose clamp pliers or regular pliers to compress spring clamps and slide them back on the hose.
• Twist each hose gently by hand or with pliers to break it free, then pull it off. Have the drain pan ready for remaining coolant.
• Disconnect any electrical connectors or brackets blocking water pump access using the correct socket or screwdriver.

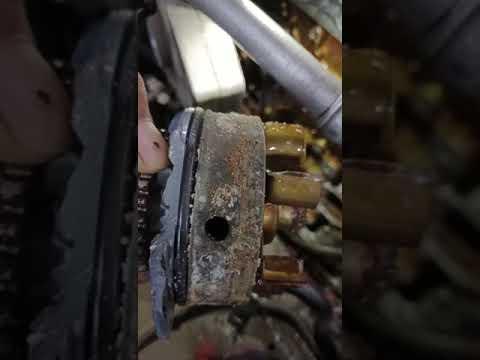

Step 7: Remove the water pump

• Locate all the water pump mounting bolts around the pump body. There are usually several small bolts.
• Use the correct socket (commonly 10mm) and ratchet with a short extension to loosen and remove all pump bolts in a crisscross pattern.
• Once bolts are removed, gently tap the pump with a rubber mallet (or heel of your hand) to break the seal. Do not pry against the engine surface with metal tools.
• Pull the water pump away from the engine. More coolant may drain; keep the drain pan under the area.
• Original pump bolt torque (for reassembly): 10 Nm (89 in-lbs).

Step 8: Clean the gasket surface

• Use a plastic gasket scraper or razor scraper very carefully to remove old gasket material or sealant from the engine mounting surface.
• Do not gouge or scratch the aluminum surface; take your time.
• Wipe the surface with a rag sprayed with brake cleaner until it is clean, smooth, and dry.
• Any leftover gasket can cause leaks later.

Step 9: Prepare and install the new water pump

• If your new pump uses a paper gasket, place the new gasket on the pump, aligning the bolt holes. A very thin film of coolant-safe RTV may be used only if specified by the pump instructions.
• If it uses an O-ring style seal, lightly coat the O-ring with fresh coolant, not grease.
• Position the new pump onto the engine, making sure it seats flat and the gasket stays aligned.
• Install all mounting bolts by hand first to avoid cross-threading.
• Use a 10mm socket and ratchet to snug the bolts evenly in a crisscross pattern.
• Then use a torque wrench with a 10mm socket to tighten all bolts to 10 Nm (89 in-lbs), again in a crisscross order.

Step 10: Reinstall hoses and water pump pulley

• Reattach all coolant hoses to their original locations and secure the clamps using hose clamp pliers or pliers.
• Install the water pump pulley on the new pump.
• Install the pulley bolts by hand, then snug with a socket (usually 10mm) and ratchet.
• Hold the pulley from turning and torque the bolts to 22 Nm (16 ft-lbs) using a torque wrench.

Step 11: Install new serpentine belt

• Route the new belt over the pulleys according to your photo or diagram, leaving one easy-to-access pulley for last.
• Use the correct socket (14mm or 16mm) and long-handled ratchet on the tensioner to rotate it and relieve tension.
• Slip the belt over the final pulley, then slowly release the tensioner so it tightens the belt.
• Double-check that the belt ribs sit correctly in all pulley grooves.

Step 12: Reinstall engine mount

• With the engine still supported by the floor jack, position the right engine mount and bracket back into place.
• Install mount bolts and nuts by hand first to avoid cross-threading.
• Use a socket set and ratchet to snug them down.
• Then use a torque wrench to tighten mount-to-body and mount-to-engine bolts to 80 Nm (59 ft-lbs) or as specified for your hardware set.
• Slowly lower and remove the jack from under the oil pan.

Step 13: Reinstall splash shield, wheel, and undercover

• Reposition the right inner splash shield and secure it with its clips and screws using a Phillips screwdriver and trim clip remover as needed.
• Reinstall the right front wheel; hand-tighten the lug nuts first.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern to 113 Nm (83 ft-lbs) using a torque wrench and appropriate socket.
• Reinstall the front lower engine undercover using original clips and screws.

Step 14: Refill and bleed the cooling system

• Ensure the radiator drain plug is closed.
• Use a funnel or spill-free funnel kit in the radiator filler neck.
• Slowly pour in Nissan-compatible premixed coolant until the radiator is full.
• Fill the coolant reservoir to the “MAX” line.
• Reconnect the negative battery terminal with a 10mm socket and snug it down.
• Start the engine and let it idle with the heater set to HOT and the fan on low. Keep the radiator cap or funnel installed.
• As the engine warms up, watch for air bubbles escaping through the funnel. Add coolant as the level drops.
• Once the upper radiator hose feels hot (thermostat open) and bubbles mostly stop, raise engine speed to about 2000 rpm for 30–60 seconds a few times.
• Turn the engine off, let it cool fully, then top up the radiator and reservoir again if the level dropped.
• Finally, install the radiator cap securely.

Step 15: Check for leaks and clear any codes

• With the engine running and at operating temperature, inspect around the water pump, hoses, and drain plug for any coolant leaks.
• If the check engine light came on earlier from low coolant or disconnecting sensors, use a OBD2 scan tool to read and clear any stored codes after confirming everything is working properly.
• Recheck for leaks again after your first drive.

---

✅ After Repair

• Take a short, gentle test drive while watching the temperature gauge; it should stay in the normal middle range.
• After the drive, shut the engine off and inspect under the car and around the water pump for any signs of coolant leaks.
• Once the engine cools, recheck coolant level in the radiator and reservoir, and top off to the correct marks if needed.
• Over the next few days, monitor coolant level and engine temperature; a small drop in coolant after the first heat cycles is normal as remaining air escapes.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$950 (parts + labor)

DIY Cost: $150–$280 (parts only)

You Save: $500–$700 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 3–4 hours.

---
