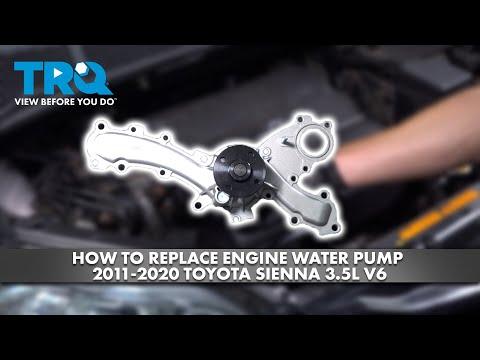

🔧 Sienna - Water Pump Replacement

On your Sienna, the water pump circulates coolant through the engine and radiator. If it’s leaking or the bearing is failing, it can cause overheating and engine damage, so replacement is a “don’t wait” repair.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; wait until fully cool.
• ⚠️ Support the van with jack stands; never rely on a floor jack.
• ⚠️ You may need to support the engine while removing the passenger-side mount.
• ⚠️ Keep hands clear of the radiator fans; they can turn on unexpectedly.
• ⚠️ Battery disconnect is recommended: remove the negative terminal before starting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Shop rags
• Plastic trim clip tool
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 21mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Socket extension set
• Torque wrench (10-200 Nm range)
• 19mm box wrench
• Pliers
• Plastic gasket scraper
• Wire brush (nylon)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket / O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 Recommended if belt is worn
• Coolant hose clamp - Qty: 1-2 If any are weak/rusted

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Disconnect the battery negative cable using a 10mm socket. This prevents fan surprises
• Plan for coolant cleanup: place a drain pan under the radiator drain area.
• If you need to remove the passenger-side engine mount, place a floor jack with a wood block under the oil pan to gently support the engine (do not lift hard).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the right-front wheel

• Break the lug nuts loose using a 21mm socket and 1/2" breaker bar.
• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove lug nuts with a 21mm socket and remove the wheel.
• During reassembly: Torque lug nuts to 103 Nm (76 ft-lbs).

Step 2: Remove the right-side splash shield (access panel)

• Remove clips using a plastic trim clip tool.
• Remove any small bolts using a 10mm socket and 3/8" ratchet.
• Set the shield aside so you can access the belt and water pump area.

Step 3: Drain the coolant

• Place a drain pan (at least 3-gallon) under the radiator drain.
• Open the radiator drain cock (use pliers only if needed; be gentle).
• Remove the radiator cap once flow starts to help it drain (only when fully cool).
• Close the drain cock once drained (snug by hand; do not overtighten).

Step 4: Remove the serpentine belt

• From the wheel-well access, rotate the belt tensioner using a 19mm box wrench.
• Slip the belt off one pulley, then slowly release the tensioner.
• Remove the belt and note the routing. Take a phone picture first

Step 5: Support the engine and remove the passenger-side engine mount (if it blocks access)

• Support the engine with a floor jack (rated 3-ton minimum) and a wood block.
• Remove the mount fasteners using a 14mm socket and 17mm socket as needed.
• During reassembly: Torque engine mount-to-body fasteners to 64 Nm (47 ft-lbs).
• During reassembly: Torque engine mount bracket fasteners to 52 Nm (38 ft-lbs).
• If bolts feel “springy,” stop and re-align engine

Step 6: Remove the water pump pulley

• Hold the pulley by hand and remove the pulley bolts using a 10mm socket and 3/8" ratchet.
• Remove the pulley and set it aside.
• During reassembly: Torque water pump pulley bolts to 21 Nm (15 ft-lbs).

Step 7: Remove the water pump

• Place shop rags under the pump area to catch remaining coolant.
• Remove the water pump bolts using a 10mm socket and 12mm socket (bolt sizes may vary by location).
• Pull the pump straight off. If it’s stuck, tap gently with the palm of your hand—don’t pry hard on the aluminum surface.

Step 8: Clean the sealing surface

• Clean the engine mating surface using a plastic gasket scraper.
• Use a wire brush (nylon) lightly to remove stubborn residue.
• Wipe clean with shop rags. The surface must be clean and dry.

Step 9: Install the new water pump

• Install the new gasket/O-ring onto the new pump (do not reuse the old seal).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket and 12mm socket.
• Final tighten using a torque wrench (10-200 Nm range): Torque water pump bolts to 10 Nm (89 in-lbs).
• Hand-start every bolt; aluminum threads strip easily

Step 10: Reinstall the pulley, belt, mount, and splash shield

• Reinstall the pulley using a 10mm socket, then Torque to 21 Nm (15 ft-lbs).
• Route the belt and rotate the tensioner with a 19mm box wrench, then slip the belt on.
• Reinstall the passenger-side engine mount (if removed) using 14mm socket and 17mm socket, then torque:
  • Torque engine mount-to-body fasteners to 64 Nm (47 ft-lbs)
  • Torque engine mount bracket fasteners to 52 Nm (38 ft-lbs)
• Reinstall the splash shield using a 10mm socket and plastic trim clip tool.
• Reinstall the wheel using a 21mm socket, then Torque lug nuts to 103 Nm (76 ft-lbs).

Step 11: Refill coolant and bleed air

• Reconnect the battery negative cable using a 10mm socket.
• Fill the radiator with Toyota Super Long Life Coolant (pink, premixed) using a funnel.
• Fill the overflow reservoir to the “FULL” line.
• Start the engine and set the heater to HOT and fan to medium.
• Let it idle and watch coolant level; top off as the thermostat opens.
• Shut down, let it cool fully, then recheck and top off radiator and reservoir.

---

✅ After Repair

• Check for leaks around the water pump and under the van with the engine running.
• Verify the heater blows hot (this helps confirm coolant circulation).
• Watch the temperature gauge on the first test drive.
• Recheck coolant level the next morning (cold engine) and top off if needed.
• If you hear belt squeal, recheck belt routing and pulley alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,400 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $550-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
