🔧 C-HR - Water Pump Replacement

On your C-HR, the water pump circulates coolant through the engine and radiator to keep temperatures stable. Replacement usually involves draining coolant, removing the pump (and its seal), installing the new pump, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; let it cool fully first.
• ⚠️ Coolant is toxic—keep away from kids/pets and clean spills immediately.
• ⚠️ Disconnect the negative battery terminal before unplugging the pump connector.
• ⚠️ Support the vehicle with jack stands; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Funnel
• Spill-free funnel kit (specialty)
• Trim clip removal tool
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (5–80 Nm range)
• 6" socket extension
• Hose clamp pliers
• Slip-joint pliers
• Plastic gasket scraper
• Shop towels
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump O-ring / gasket - Qty: 1
• Toyota Super Long Life Coolant (pink) premixed - Qty: 2 gallons
• Hose clamps - Qty: 2-4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (cool upper radiator hose to the touch).
• Raise the front of the vehicle using a floor jack and support it on jack stands.
• Plan to capture all coolant in a drain pan for proper disposal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery (required)

• Use a 10mm socket and 3/8" ratchet to remove the negative battery terminal clamp.
• Move the cable aside so it can’t spring back onto the terminal.
• Prevents accidental shorts at the pump.

Step 2: Remove the engine under cover (splash shield)

• Use a 10mm socket and 3/8" ratchet to remove the small bolts.
• Use a trim clip removal tool to pop out the plastic clips.
• Set the cover and fasteners aside in order.

Step 3: Drain the coolant

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Slowly remove the coolant reservoir/radiator cap (only if fully cool).
• Open the radiator drain and let coolant flow into the pan. Use shop towels for spills.

Step 4: Access the water pump area

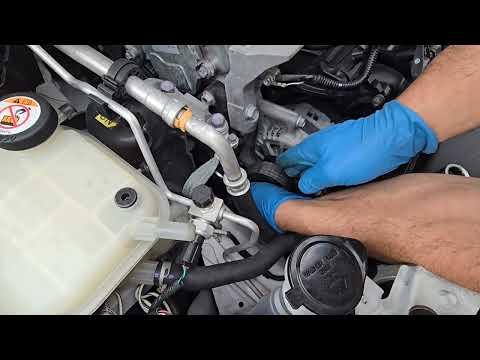

• Use a flashlight to locate the pump on the front/side of the engine (it will have coolant hoses attached and typically an electrical connector).
• If a small bracket or cover blocks access, remove it using a 10mm socket or 12mm socket with a 3/8" ratchet and 6" socket extension.

Step 5: Disconnect the pump electrical connector (if equipped)

• Press the lock tab and unplug the connector by hand.
• If it’s stubborn, gently work it while supporting the connector body (don’t pull on wires).

Step 6: Remove the coolant hoses from the pump

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off. Use slip-joint pliers carefully if needed.
• Catch leftover coolant with the drain pan.
• Twist first—pulling straight can tear hoses.

Step 7: Remove the water pump mounting bolts

• Use a 10mm socket or 12mm socket (varies by fastener) with a 3/8" ratchet and 6" socket extension to remove the pump bolts.
• Support the pump as the last bolt comes out so it doesn’t drop.

Step 8: Clean the mounting surface

• Remove the old O-ring/gasket from the pump or engine side.
• Use a plastic gasket scraper and shop towels to clean the mating surface until it’s smooth and dry.
• Do not gouge the aluminum surface.

Step 9: Install the new water pump and seal

• Install the new water pump O-ring / gasket onto the new pump (make sure it sits flat and isn’t twisted).
• Position the new pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs).

Step 10: Reconnect hoses and electrical connector

• Push hoses fully onto their fittings, then reinstall clamps using hose clamp pliers.
• Plug the electrical connector back in until it clicks.

Step 11: Reinstall covers and reconnect the battery

• Reinstall any removed brackets/covers using a 10mm socket / 12mm socket and 3/8" ratchet.
• Reinstall the under cover using a 10mm socket and trim clip removal tool (to seat clips).
• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

Step 12: Refill and bleed the cooling system

• Install a spill-free funnel kit (specialty) on the coolant fill point.
• Slowly add Toyota Super Long Life Coolant (pink) premixed using a funnel until the level stabilizes.
• Start the engine and set the cabin heat to HOT (max temp) and fan to low.
• Let the engine warm up while monitoring level; top off as bubbles purge.
• Gently squeeze the upper radiator hose a few times (with nitrile gloves) to help move trapped air.
• Once no more bubbles appear and heat is steady, shut the engine off, let it cool, then recheck and adjust the coolant level.

---

✅ After Repair

• Start the engine and check carefully for leaks around the pump and hose connections.
• Verify the temperature gauge stays normal during a 10–15 minute drive.
• After the engine cools completely, recheck coolant level and top off if needed.
• If the check engine light comes on, scan for codes related to coolant pump performance.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $470-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
