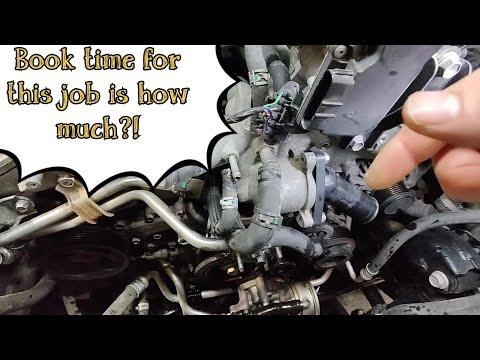

🔧 4Runner - Water Pump Replacement

The water pump circulates coolant through your A4Runner’s engine and radiator. If it’s leaking (coolant smell, crusty pink/white residue) or the bearing is noisy, replacing the pump prevents overheating and engine damage.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• 🧯 Only work on a fully cold engine; hot coolant can cause severe burns.
• 🧤 Support the vehicle securely if you raise it—never rely on a jack alone.
• 🧪 Capture coolant in a drain pan; keep it away from kids/pets and dispose properly.
• 🔌 If your hands/tools will be near the fan area, disconnect the negative battery cable to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set: 10mm, 12mm, 14mm
• Wrench set: 10mm, 12mm, 14mm
• Torque wrench (10-80 ft-lbs range)
• Serpentine belt tool or long 14mm box wrench
• Fan clutch holding tool set (specialty)
• Trim clip remover
• Flathead screwdriver
• Pliers (hose clamp pliers)
• Plastic gasket scraper
• Shop rags
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed) - Qty: 3 gallons
• Serpentine drive belt - Qty: 1
• Thermostat - Qty: 1
• Thermostat gasket - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (overnight is best).
• 🔋 Disconnect the negative battery terminal using a 10mm wrench if you want maximum safety around the fan.
• 🧰 If you’ve never used a “fan clutch holding tool”: it’s a thin wrench set that holds the pulley so the nuts can be loosened without spinning.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (if needed) and remove the front skid plate

• Use a floor jack (rated 3-ton minimum) and place the truck on jack stands (rated 3-ton minimum).
• Remove the front skid plate using a 12mm socket and 3/8" drive ratchet.

Step 2: Drain the engine coolant

• Place a drain pan (at least 3-gallon) under the radiator drain.
• Open the radiator cap slowly (engine cold) by hand to release any residual pressure.
• Open the radiator drain cock using a flathead screwdriver (if needed) and drain coolant fully.

Step 3: Remove the radiator fan shroud

• Remove the upper shroud fasteners using a 10mm socket and trim clip remover (as equipped).
• Lift/position the shroud back to make room for the fan removal.

Step 4: Remove the mechanical fan & clutch assembly

• Hold the water-pump pulley with the fan clutch holding tool set (specialty).
• Remove the four fan nuts using a 12mm wrench or 12mm socket.
• Carefully lift the fan/clutch out with the shroud (or move the shroud as needed). Go slow—don’t nick the radiator.

Step 5: Remove the serpentine belt

• Rotate the belt tensioner using a serpentine belt tool or long 14mm box wrench to relieve tension.
• Slip the belt off and remove it from the engine bay.

Step 6: Remove the water pump pulley

• Remove the pulley fasteners using a 12mm socket and 3/8" drive ratchet.
• Remove the pulley and set it aside.

Step 7: Disconnect hoses attached to the water pump area

• Use pliers (hose clamp pliers) to slide hose clamps back.
• Twist the hoses gently to break them free, then pull off.
• Use shop rags to catch remaining coolant.

Step 8: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and 12mm socket (bolt heads vary by location).
• Pull the pump straight off. If it’s stuck, tap lightly by hand—do not pry against aluminum sealing surfaces.

Step 9: Clean the sealing surface

• Use a plastic gasket scraper to clean old gasket material and corrosion from the engine surface.
• Wipe the surface clean using shop rags. It must be clean and dry for a leak-free seal.

Step 10: Install the new water pump

• Install the new water pump gasket/O-ring onto the new pump.
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a torque wrench.
• Torque to 21 Nm (15 ft-lbs)

Step 11: Reinstall the pulley, belt, fan, and shroud

• Reinstall the water pump pulley using a 12mm socket and 3/8" drive ratchet.
• Install the serpentine belt using the serpentine belt tool or long 14mm box wrench on the tensioner.
• Reinstall the fan/clutch using a 12mm wrench and hold the pulley with the fan clutch holding tool set (specialty).
• Reinstall the fan shroud using a 10mm socket and trim clip remover.

Step 12: Reinstall the skid plate and lower the vehicle

• Reinstall the skid plate using a 12mm socket.
• Lower the truck safely from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 13: Refill and bleed the cooling system

• Close the radiator drain cock by hand (snug, do not overtighten).
• Refill with Toyota Super Long Life Coolant (pink, premixed) using a funnel.
• Fill the radiator, then fill the overflow reservoir to the “FULL” line.
• Start the engine and set the heater to HOT, fan on LOW.
• Let it reach operating temp; watch the temp gauge and check for leaks.
• After it cools fully, recheck and top off radiator and reservoir as needed. Coolant level often drops after first heat cycle.

---

✅ After Repair

• 🔍 Check for leaks around the pump, hoses, and radiator drain after a short drive.
• 🌡️ Confirm normal engine temperature and strong cabin heat (a sign coolant is circulating).
• 🧾 Recheck coolant level the next morning (cold) and top off if needed.
• 🧼 Clean any spilled coolant so new leaks are easy to spot.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,200 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $300-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
