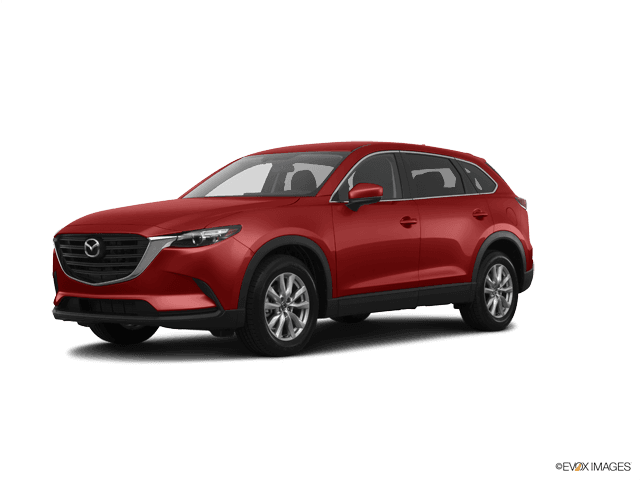

🔧 CX-9 - Water Pump Replacement

On your CX-9, the water pump circulates coolant through the engine and radiator to prevent overheating. Replacement is usually needed when the pump leaks (coolant smell/puddles) or the bearing gets noisy.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cold engine; hot coolant can burn.
• ⚠️ Support the CX-9 on jack stands; never rely on a jack alone.
• ⚠️ Keep hands clear of the radiator fans; they can turn on unexpectedly.
• ⚠️ Coolant is toxic; capture it in a drain pan and dispose of it properly.
• ⚠️ Battery disconnect is recommended: remove the negative terminal to prevent fan operation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Spill-free funnel kit (specialty)
• Metric socket set (8mm-19mm)
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (5-80 Nm range)
• Flathead screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Plastic scraper
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (included with pump if applicable) - Qty: 1
• Engine coolant (Mazda FL22 equivalent, premixed) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1 Recommended while you’re here
• Hose clamps (worm-gear or OEM-style) - Qty: 2-4 If originals are weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (at least a few hours).
• Disconnect the negative battery terminal using a 10mm socket.
• Raise the front of the CX-9 with a floor jack and set it on jack stands.
• Remove any lower splash shield(s) using a trim clip removal tool and 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain.
• Remove the radiator cap slowly (only when cold).
• Open the radiator drain cock using a flathead screwdriver and drain coolant.
• Close the drain cock when finished.

Step 2: Remove the air intake ducting (for access)

• Loosen intake clamps using a flathead screwdriver.
• Remove any retaining bolts with a 10mm socket and lift the duct out.

Step 3: Remove the serpentine belt

• Use a 14mm socket and breaker bar to rotate the belt tensioner and relieve tension.
• Slide the belt off one pulley, then remove it fully.
• Tip: Take a quick photo of belt routing.

Step 4: Remove components blocking the water pump

• Remove any brackets or covers in the way using a 10mm socket and 12mm socket.
• Move hoses aside as needed using hose clamp pliers (do not kink hoses).

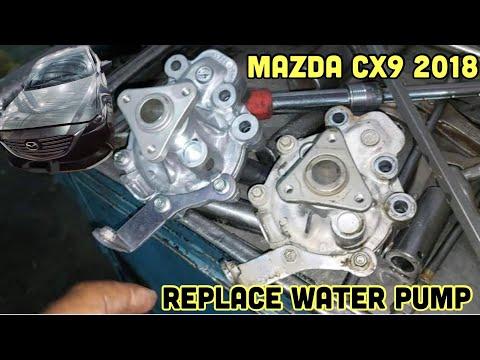

Step 5: Remove the water pump

• Place shop rags under the pump area to catch remaining coolant.
• Remove the water pump bolts evenly using a 10mm socket.
• Remove the pump from the engine.
• Clean the sealing surface using a plastic scraper and shop rags. Do not gouge the aluminum.

Step 6: Install the new water pump

• Install the new gasket/O-ring onto the new pump (dry unless the gasket instructions specify otherwise).
• Position the pump and start all bolts by hand.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) using a torque wrench (5-80 Nm range).

Step 7: Reinstall brackets, hoses, and the serpentine belt

• Reinstall brackets/covers using a 10mm socket and 12mm socket.
• Torque to 18 Nm (13 ft-lbs) for typical M8 accessory/bracket bolts.
• Reinstall the belt by rotating the tensioner with a 14mm socket and breaker bar, then slide the belt into place.
• Visually confirm the belt is fully seated in every pulley groove.

Step 8: Reinstall the intake ducting and lower splash shield

• Reinstall the intake duct and tighten clamps using a flathead screwdriver.
• Reinstall any bolts with a 10mm socket.
• Reinstall the lower splash shield using a trim clip removal tool and 10mm socket.

Step 9: Refill and bleed the cooling system

• Lower the CX-9 off the jack stands using the floor jack.
• Fill the radiator/expansion tank with engine coolant (Mazda FL22 equivalent, premixed) using a spill-free funnel kit (specialty).
• Reconnect the negative battery terminal using a 10mm socket.
• Start the engine and set the heater to HOT with the fan on low.
• Let it reach operating temperature; top off coolant as the level drops.
• When no more air bubbles appear, shut the engine off, let it cool, then recheck and set level to the MAX line.

---

✅ After Repair

• Check for leaks around the pump and hoses with the engine running and after a full heat-soak/cool-down.
• Verify the cabin heater blows hot (a common sign air is fully purged).
• Watch the temperature gauge on the first test drive and recheck coolant level the next morning.
• Inspect belt tracking: it should run centered on pulleys with no chirping.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $470-$770 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
