🔧 Yukon - Water Pump Replacement

The water pump on your Yukon circulates coolant through the engine and radiator. If it’s leaking from the pump weep hole, making bearing noise, or overheating, replacing the pump (and sealing surfaces) restores proper cooling.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• 🧯 Never open the surge tank cap on a hot engine; hot coolant can spray and burn you.
• 🧤 Wear gloves and safety glasses; coolant is toxic and slippery.
• 🔋 Keep hands clear of the cooling fans; they can turn on unexpectedly—remove the key and disconnect the negative battery cable before working near the fan/shroud area.
• 🛑 Support the vehicle securely if you raise it; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• Socket set: 8mm, 10mm, 13mm, 15mm
• 3/8" drive extensions (3" and 6")
• Serpentine belt tool with 15mm socket (specialty)
• Flat-blade screwdriver
• Hose clamp pliers (specialty)
• Trim clip removal tool
• Plastic gasket scraper
• Shop towels
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

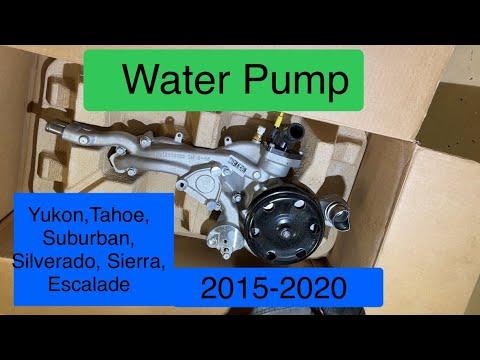

• Water pump assembly (5.3L) - Qty: 1
• Water pump gasket/seal set - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 3 gallons
• Radiator hose clamp(s) (if original clamps are weak/damaged) - Qty: 1-2
• Serpentine belt (optional, if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• ❄️ Let the engine cool completely (ideally overnight).
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧼 Clean the front of the engine area so dirt doesn’t fall into open hoses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Slowly loosen the surge tank cap by hand to release any leftover pressure.
• Open the radiator drain (petcock) using a flat-blade screwdriver if needed, and drain the coolant.
• Tip: Save clean coolant only if it’s fresh.

Step 2: Remove the engine cover and intake ducting

• Pull up to remove the engine cover by hand (it’s retained by grommets).
• Loosen the intake duct clamps using an 8mm socket or flat-blade screwdriver.
• Disconnect any intake tube clips/sensors carefully, then remove the ducting.

Step 3: Remove the upper fan shroud area (as needed for access)

• Remove shroud fasteners using a 10mm socket and release any retainers with a trim clip removal tool.
• Move the shroud/fan area enough to access the water pump and hoses (do not force connectors).

Step 4: Remove the serpentine belt

• Use a serpentine belt tool with 15mm socket (specialty) to rotate the belt tensioner and relieve belt tension.
• Slip the belt off the water pump pulley first, then release the tensioner slowly.
• If you’re reusing the belt, take a photo of the belt routing before removal.

Step 5: Disconnect hoses from the water pump

• Use hose clamp pliers (specialty) to compress the clamps and slide them back on the hose.
• Twist the hose gently to break it free, then pull it off the water pump.
• Expect more coolant to drain—keep the drain pan underneath.

Step 6: Unbolt and remove the water pump

• Remove the water pump mounting bolts using a 13mm socket with a 3/8" drive ratchet and extensions as needed.
• Support the pump with one hand as you remove the last bolts, then pull the pump straight off.
• Remove old gasket material using a plastic gasket scraper and wipe clean with shop towels.
• Tip: Don’t gouge aluminum sealing surfaces.

Step 7: Install the new water pump and gaskets

• Place the new gaskets/seals onto the new pump (match orientation exactly).
• Position the pump on the engine and hand-start all bolts.
• Tighten evenly, then use a 3/8" drive torque wrench with a 13mm socket: Torque to 22 Nm (16 ft-lbs).

Step 8: Reconnect hoses and reinstall the belt

• Reinstall hoses fully seated, then position clamps using hose clamp pliers (specialty).
• Route the serpentine belt correctly and use the serpentine belt tool with 15mm socket (specialty) to rotate the tensioner.
• Slip the belt over the last pulley and slowly release the tensioner.
• Visually confirm the belt is centered on every pulley groove.

Step 9: Reinstall intake ducting and shrouds

• Reinstall the fan shroud fasteners using a 10mm socket and any retainers with a trim clip removal tool.
• Reinstall the intake ducting and tighten clamps using an 8mm socket or flat-blade screwdriver.
• Reinstall the engine cover by pressing it into the grommets by hand.

Step 10: Refill and bleed the cooling system

• Reconnect the negative battery cable using a 10mm socket.
• Fill the surge tank slowly using a funnel with Dex-Cool coolant (50/50 premix) to the “COLD” line.
• Start the engine and set the HVAC to HOT with the fan on low.
• Let it idle and watch coolant level; top off as the level drops.
• When warm, verify the heater blows hot and check for leaks at hoses and the pump.

---

✅ After Repair

• 🔍 Check for leaks with the engine running and again after the first drive.
• 🌡️ Confirm the temperature stays normal and the cabin heater works.
• 🧊 After it fully cools, recheck the surge tank level and top off to the “COLD” mark.
• 🧼 Properly dispose of old coolant—keep it away from pets and kids.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $330-$910 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
