🔧 Suburban - Water Pump Replacement

The water pump circulates coolant through your Suburban’s engine and radiator. When it leaks or the bearing wears out, you can get overheating, coolant loss, or a squealing/grinding noise up front.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cold engine—hot coolant can cause severe burns.
• ⚠️ Never remove the surge tank cap when hot or pressurized.
• ⚠️ Keep hands/clothing clear of the belt drive and fan area.
• ⚠️ Catch and dispose of coolant properly—it's toxic to pets and people.
• ⚠️ If you raise the front, support with jack stands before working underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 13mm socket
• 15mm socket
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim tool
• Torque wrench (10–60 ft-lbs range)
• Gasket scraper (plastic)
• Shop towels
• Funnel
• Serpentine belt tool (specialty)
• Fan clutch wrench set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/seal - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 2-3 gallons
• Hose clamps - Qty: 2-4

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (preferably overnight).
• 🧼 Clean dirt off the front of the engine so nothing falls into the gasket surface.
• 🧰 A “serpentine belt tool” is a long handled wrench made to rotate the belt tensioner in tight spaces.
• 🧰 A “fan clutch wrench” is a large thin wrench used to loosen the fan nut without damaging the fan.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Depressurize the cooling system

• Verify the engine is cold.
• Slowly loosen the surge tank cap (coolant reservoir cap) by hand to release any remaining pressure, then remove it.

Step 2: Drain coolant to below water pump level

• Place a drain pan under the radiator area.
• If equipped with an underbody shield, remove fasteners using a 10mm socket and/or plastic trim tool.
• Drain from the radiator drain petcock (if accessible) by turning it with a flat-blade screwdriver.
• If the petcock isn’t accessible, you can drain by removing the lower radiator hose using hose clamp pliers. Twist hose to break it free.

Step 3: Remove the intake duct (for working room)

• Loosen the hose clamps with a flat-blade screwdriver.
• Remove the intake duct/air tube and set it aside.

Step 4: Remove the fan/shroud for access (choose your setup)

• If your Suburban has a mechanical engine-driven fan:
  • Unclip/remove the upper fan shroud fasteners using a 10mm socket and plastic trim tool.
  • Use a fan clutch wrench set (specialty) to loosen the fan clutch nut, then lift the fan and shroud out together.
• If your Suburban has electric radiator fans:
  • Disconnect the fan electrical connectors by hand.
  • Remove the fan/shroud mounting bolts using a 10mm socket, then lift the module out.

Step 5: Remove the serpentine belt

• Make a quick belt routing sketch or take a photo.
• Rotate the belt tensioner using a serpentine belt tool (specialty) or 15mm socket, then slide the belt off.
• Set the belt aside and inspect it for cracks; replace if worn.

Step 6: Disconnect hoses from the water pump

• Position the drain pan under the pump area to catch spills.
• Remove the upper and/or bypass hoses at the pump using hose clamp pliers.
• If you encounter a “quick-connect” fitting, it’s a snap-lock coupler; release its retaining clip with a plastic trim tool and pull straight off.

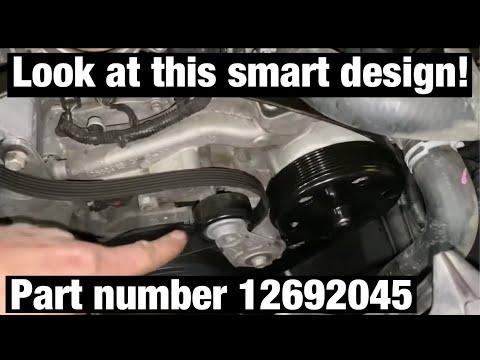

Step 7: Remove the water pump

• Remove the water pump mounting bolts using a 13mm socket and 3/8" drive extensions.
• Pull the pump straight forward to remove it.
• Clean the mating surface with a gasket scraper (plastic) and shop towels. Do not gouge the aluminum surface.

Step 8: Install the new water pump and gasket

• Compare the old and new pumps to confirm hose ports and bolt holes match.
• Install the new gasket/seal onto the new pump (or onto the engine, depending on design).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten the bolts evenly with a 13mm socket.
• Final tighten using a torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 9: Reconnect hoses and reinstall the belt

• Reconnect all water pump hoses using hose clamp pliers, and make sure clamps sit behind the hose bead.
• Route the belt according to your photo, then rotate the tensioner with a serpentine belt tool (specialty) or 15mm socket and slip the belt on.
• Visually confirm the belt is seated in every pulley groove.

Step 10: Reinstall the fan/shroud and intake duct

• Reinstall fan/shroud in the reverse order.
• Install shroud fasteners using a 10mm socket.
• Reinstall intake duct and tighten clamps using a flat-blade screwdriver.

Step 11: Refill coolant

• Use a funnel to refill the surge tank with Dex-Cool coolant (50/50 premix) to the “FULL COLD” line.
• If you raised the vehicle, lower it using a floor jack and remove the jack stands.

---

✅ After Repair

• 🧪 Start the engine and set heat to MAX HOT; let it idle and watch for leaks.
• 🌡️ As the engine warms, the coolant level may drop—shut off, let cool, and top off to the “FULL COLD” line.
• 👀 Verify the temperature gauge stays normal and the heater blows hot.
• 🔁 Recheck coolant level again after your first short drive and again the next morning (cold).

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,250 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $330-$1,070 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
