🔧 Enclave - Water Pump Replacement

The water pump circulates coolant through your Enclave’s engine and radiator. When it leaks or the bearing wears out, you can get overheating, coolant loss, and squealing/whining from the pulley area.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the Enclave with jack stands before working underneath.
• ⚠️ Keep fingers/tools clear of the belt path when releasing the tensioner.
• ⚠️ Coolant is toxic—catch it in a drain pan and clean spills immediately.
• ⚠️ Battery disconnect is not strictly required, but disconnecting the negative cable helps prevent accidental shorts near the radiator fan.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10 quarts)
• Funnel
• Trim clip removal tool
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• Serpentine belt tool (specialty)
• Socket set: 7mm, 8mm, 10mm, 13mm, 15mm
• Torx bit set: T15, T20, T30
• Extension set: 3" and 6"
• Flat-blade screwdriver
• Pick tool
• Gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring (if not included with pump) - Qty: 1
• Engine coolant (DEX-COOL 50/50 premix) - Qty: 2-3 gallons
• Serpentine belt (optional if cracked/glazed) - Qty: 1
• Hose clamp (optional if original clamp is weak/damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (at least 2 hours).
• Remove the coolant reservoir cap only after the system is cool.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front-right and remove the splash shield

• Use a floor jack at the front-right lift point, then set the vehicle on jack stands.
• Use a socket set: 7mm, 8mm and a trim clip removal tool to remove the fasteners/clips holding the front-right lower splash shield.

Step 2: Drain the coolant

• Place a drain pan (at least 10 quarts) under the radiator drain area.
• Use a flat-blade screwdriver (or the appropriate socket if equipped) to open the radiator drain and let coolant drain.
• Close the drain snugly after flow slows to a drip.

Step 3: Remove the engine cover and access the belt area

• Pull up on the engine cover to release it (it’s held by rubber grommets). Use nitrile gloves for grip.
• If an upper air duct is in the way, loosen clamps with a flat-blade screwdriver and move it aside.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty); it’s a long handle that gives you leverage in tight spaces.
• Rotate the belt tensioner using the correct drive on the tensioner (commonly a 15mm socket), then slide the belt off one pulley.
• Slowly release the tensioner back to its stop (don’t let it snap).

Step 5: Remove components blocking the water pump (as equipped)

• If the pump area is partially blocked, remove the needed brackets/lines using a 10mm socket and extensions.
• Move components aside without kinking hoses or stressing wiring.

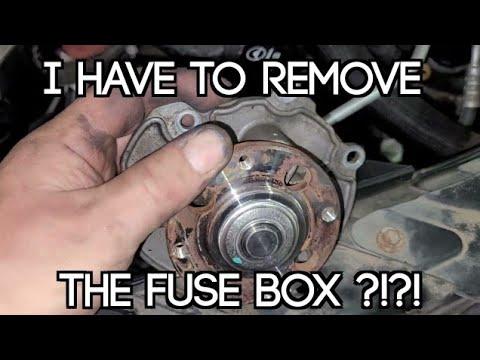

Step 6: Remove the water pump

• Place shop towels under the pump area to catch remaining coolant.
• Remove the water pump bolts using a 10mm socket (some applications may use 13mm depending on bolt location).
• Gently pry the pump away if it’s stuck. Use a flat-blade screwdriver carefully—don’t gouge the aluminum surface.
• Remove the old gasket/O-ring. Use a pick tool if needed.

Step 7: Clean the sealing surface

• Use a gasket scraper to clean old gasket material from the engine sealing surface.
• Wipe clean with shop towels. The surface must be clean and dry.
• Do not use heavy sanding on aluminum.

Step 8: Install the new water pump

• Install the new gasket/O-ring onto the new pump (or onto the engine side if the gasket design calls for it).
• Position the pump and start all bolts by hand.
• Tighten bolts evenly in a crisscross pattern using a 3/8" drive torque wrench.
• Torque to 10 Nm (89 in-lbs) for the water pump fasteners.

Step 9: Reinstall brackets/lines and the serpentine belt

• Reinstall any removed brackets using a 10mm socket and 3/8" drive torque wrench.
• Torque bracket bolts to 25 Nm (18 ft-lbs) if they are the small accessory bracket fasteners.
• Route the belt using your reference photo, then use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the final pulley.
• Visually confirm the belt ribs are fully seated in every pulley groove.

Step 10: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield using a socket set: 7mm, 8mm and trim clip removal tool.
• Lower the Enclave from jack stands using the floor jack.

Step 11: Refill and bleed the cooling system

• Refill the coolant reservoir with DEX-COOL 50/50 premix using a funnel.
• Start the engine and set the heat to max temperature with the fan on low.
• Let the engine reach operating temperature while watching coolant level. Add coolant as needed.
• If your Enclave has a bleed screw on/near the thermostat housing, open it carefully with the correct Torx bit until coolant flows without bubbles, then close it.
• Torque bleed screw to 3 Nm (27 in-lbs) if equipped.

---

✅ After Repair

• Check for leaks around the pump and any hose connections while the engine is idling.
• Verify the heater blows hot air (a sign coolant is circulating).
• Shut the engine off, let it cool fully, then recheck and top off the coolant level.
• Test drive 10-15 minutes, then recheck for leaks and confirm the temperature gauge stays normal.
• If any warning light appears or it runs hot, shut it down and recheck belt routing and coolant level.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $510-$780 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
