🔧 Expedition - Water Pump Replacement

On your Expedition’s 3.5L turbo engine, the water pump is driven by the timing chain behind the front cover. Replacing it is a big job because you must open the timing cover area and keep engine timing correct to prevent severe engine damage.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before opening the cooling system.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.
• ⚠️ Support the vehicle with jack stands; never rely on a jack alone.
• ⚠️ Engine timing must stay correct—if timing slips, the engine can be damaged.
• ⚠️ Keep coolant off belts and electrical connectors; clean spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Shop towels
• Plastic scraper
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set 8mm-21mm
• Deep socket set 8mm-21mm
• Wrench set 8mm-21mm
• Torx bit set
• E-Torx socket set
• Trim clip removal tool
• Hose clamp pliers
• Serpentine belt tool 1/2"
• Torque wrench 10-150 ft-lb
• Torque angle gauge (specialty)
• Harmonic balancer puller kit (specialty)
• Crankshaft pulley holding tool (specialty)
• Camshaft/crankshaft timing holding tool set for Ford 3.5L GTDI (specialty)
• Cooling system vacuum fill tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring - Qty: 1
• Front cover gasket set - Qty: 1
• Crankshaft front seal - Qty: 1
• RTV silicone sealant (Ford-spec timing cover RTV) - Qty: 1
• Engine coolant (Motorcraft Yellow prediluted 50/50 or Ford-approved equivalent) - Qty: 3-4 gallons
• Engine oil (5W-30 full synthetic) - Qty: 6 quarts
• Oil filter - Qty: 1
• Serpentine belt - Qty: 1
• Accessory drive belt tensioner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Plan to change the oil afterward (coolant can enter the crankcase during this repair).
• Take photos before unplugging connectors.
• Uncommon tool note: a harmonic balancer puller removes the crank pulley without damage.
• Uncommon tool note: a torque angle gauge measures the “extra turn” after initial torque.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Raise the front and support with floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum).
• Place a drain pan (at least 3-gallon) under the radiator drain.
• Open the radiator drain (if equipped) and remove the reservoir cap to vent.

Step 2: Remove the lower shields and intake ducting

• Remove the splash shields using a trim clip removal tool and socket set 8mm-21mm.
• Remove the intake ducting/air inlet as needed using socket set 8mm-21mm.

Step 3: Remove the radiator fan/shroud assembly

• Unplug the fan connector(s) and release harness clips using a trim clip removal tool.
• Remove mounting fasteners with a socket set 8mm-21mm, then lift the fan/shroud out.

Step 4: Remove the serpentine belt

• Rotate the tensioner with a serpentine belt tool 1/2" and slip the belt off.
• Draw the belt routing before removal.

Step 5: Remove front accessory components (for access)

• Remove components blocking the front cover (commonly alternator, idlers, tensioner, and brackets) using socket set 8mm-21mm and E-Torx socket set.
• Support any component you “move aside” so it doesn’t hang by hoses or wiring.
• When reinstalling accessory bracket fasteners: Torque to 25 Nm (18 ft-lb) unless a different spec is stamped/identified for that fastener size.

Step 6: Set cylinder #1 to Top Dead Center (TDC) on compression

• Rotate the engine clockwise at the crank pulley using a 1/2" drive breaker bar and appropriate socket set 8mm-21mm.
• Install the camshaft/crankshaft timing holding tool set for Ford 3.5L GTDI (specialty) per tool instructions.
• Do not rotate the engine backward.

Step 7: Remove the crankshaft pulley (harmonic balancer)

• Hold the crank with a crankshaft pulley holding tool (specialty).
• Remove the crank bolt using a 1/2" drive breaker bar and correct socket set 8mm-21mm.
• Use the harmonic balancer puller kit (specialty) to pull the pulley straight off.
• Crank bolt on reassembly is torque-to-yield: Torque to 50 Nm (37 ft-lb) + 90° + 90° using a torque wrench 10-150 ft-lb and torque angle gauge (specialty).

Step 8: Remove the front cover

• Remove all front cover fasteners using socket set 8mm-21mm, Torx bit set, and E-Torx socket set.
• Gently separate the cover using hand pressure; if needed use a plastic scraper at designated pry points.
• Clean mating surfaces with a plastic scraper and shop towels; do not gouge aluminum.
• Front cover bolts on reassembly: Torque to 10 Nm (89 in-lb) for small bolts, Torque to 25 Nm (18 ft-lb) for larger bolts (match by bolt diameter/length during install).

Step 9: Release timing chain tension (keep timing locked)

• With timing tools still installed, relieve/remove the chain tensioner using a socket set 8mm-21mm.
• Do not allow the chain to drop off sprockets; use shop towels as a soft support and keep tension controlled by hand.

Step 10: Remove the water pump

• Place the drain pan (at least 3-gallon) under the pump area for remaining coolant.
• Remove the water pump fasteners using a socket set 8mm-21mm.
• Remove the pump and old seal/O-ring. Clean the sealing surface with a plastic scraper.
• Water pump bolts on reassembly: Torque to 10 Nm (89 in-lb), then Torque to 20 Nm (15 ft-lb) (tighten in a crisscross pattern).

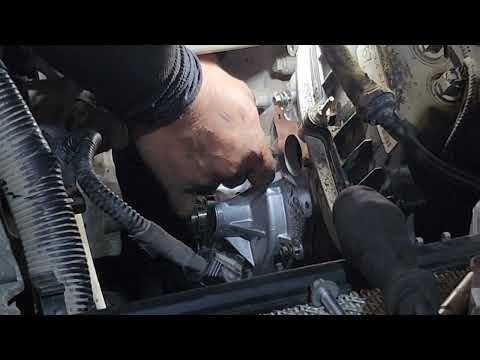

Step 11: Install the new water pump

• Install the new seal/O-ring onto the new pump (lightly wet with clean coolant using a funnel if needed).
• Position the pump and hand-start bolts to avoid cross-threading.
• Tighten using a torque wrench 10-150 ft-lb: Torque to 10 Nm (89 in-lb), then Torque to 20 Nm (15 ft-lb).

Step 12: Reinstall timing components and verify timing marks

• Reinstall the chain tensioner using socket set 8mm-21mm.
• Remove the timing holding tools only after you confirm timing marks/positions are correct per the tool kit instructions.
• Rotate the engine by hand two full turns clockwise using a 1/2" drive breaker bar, then re-check alignment.

Step 13: Reseal and reinstall the front cover

• Install the new crankshaft front seal into the cover (if separate) using a suitable driver from the harmonic balancer puller kit (specialty).
• Apply RTV silicone sealant (Ford-spec timing cover RTV) at the cover-to-head/block junctions (corner joints).
• Install the front cover and torque fasteners with a torque wrench 10-150 ft-lb: Torque to 10 Nm (89 in-lb) and Torque to 25 Nm (18 ft-lb) as applicable.

Step 14: Install crank pulley, belts, fan, and remaining parts

• Install the crank pulley and new crank bolt; tighten with a torque wrench 10-150 ft-lb and torque angle gauge (specialty): Torque to 50 Nm (37 ft-lb) + 90° + 90°.
• Reinstall accessories/brackets using socket set 8mm-21mm and E-Torx socket set.
• Install the new belt using a serpentine belt tool 1/2".
• Reinstall the fan/shroud and plug in connectors using socket set 8mm-21mm.
• Reinstall shields using a trim clip removal tool and socket set 8mm-21mm.

Step 15: Refill coolant (properly) and change the oil

• Refill using cooling system vacuum fill tool (specialty) and correct coolant to reduce air pockets.
• If you don’t have vacuum fill: fill the reservoir, start, and top off as it warms; watch the temp gauge closely.
• Change oil and filter using socket set 8mm-21mm, drain pan (at least 3-gallon), and funnel.

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Start the engine and let it reach operating temperature; verify heat works and no overheating.
• Check for leaks at the front cover, water pump area, hose connections, and under the vehicle.
• Recheck coolant level after the first drive and again the next morning (cold).
• If any check engine light appears, read codes before driving further.

---

💰 DIY vs Shop Cost

Shop Cost: $1,600-$2,800 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $1,350-$2,150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
