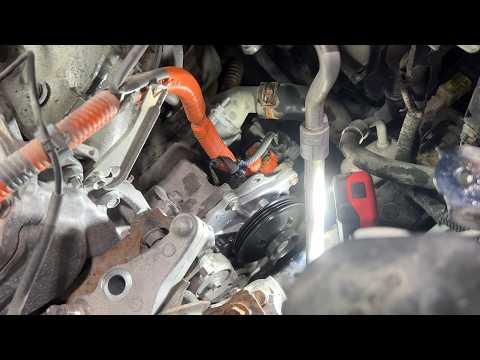

🔧 Water Pump - Replacement

The engine water pump circulates coolant through your RAV4’s engine to keep temperatures under control. On this hybrid, the pump is belt-driven, so the job involves draining coolant, removing the drive belt, swapping the pump, and refilling the cooling system carefully to avoid air pockets.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system.
• Hybrid systems can start automatically. Keep the car OFF and the key/fob away from the vehicle.
• Do not touch orange high-voltage cables or components.
• Use a drain pan. Coolant is toxic and slippery.
• Battery disconnect is not usually required for this repair, but you should power the vehicle fully OFF.
• Do not reuse a damaged belt or leaking pump gasket.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Short extension
• Breaker bar
• Torque wrench
• Flathead screwdriver
• Drain pan
• Spill-free funnel
• Pliers
• Floor jack (rated 3-ton minimum)
• Jack stands
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket / O-ring - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant, premixed) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1
• Hose clamp(s), if damaged - Qty: As needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine and radiator cool fully.
• Power the vehicle OFF completely.
• If the undertray blocks access, raise the front safely with a floor jack and support it on jack stands.
• Have fresh coolant ready before opening the system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Use a flathead screwdriver or by hand, if equipped, to open the radiator drain cock and drain enough coolant to get below the water pump level.
• If there is a block drain or hose you need to remove for access, use pliers to release the clamp.
• Close the drain cock after draining. Torque to 8 Nm (71 in-lbs) if a torque spec applies to the drain fitting.

Step 2: Remove the lower splash shield if needed

• Use a 10mm socket to remove the lower engine undercover fasteners.
• Set the shield aside so you can reach the belt and pump area.

Step 3: Remove the serpentine belt

• Use a 14mm socket or breaker bar on the belt tensioner.
• Rotate the tensioner to release belt tension, then slip the belt off the pulleys.
• Take a belt routing photo first.

Step 4: Remove the water pump pulley

• Use a 10mm socket to remove the water pump pulley bolts.
• Hold the pulley steady by hand while loosening the bolts.
• Remove the pulley and set it aside.
• Torque on installation: 25 Nm (18 ft-lbs)

Step 5: Remove the water pump

• Use a 12mm socket and ratchet to remove the water pump mounting bolts.
• Carefully pull the pump away from the engine.
• Expect a little coolant spill. Keep the drain pan in place.
• Remove the old gasket or O-ring.

Step 6: Clean the mounting surface

• Use a clean rag to wipe the engine mounting surface.
• Do not scratch the aluminum surface.
• Make sure no old gasket material is left behind.
• Clean, dry surfaces seal best.

Step 7: Install the new water pump

• Install the new gasket or O-ring on the replacement pump.
• Position the pump on the engine and start all bolts by hand.
• Use a 12mm socket to snug the bolts evenly in a crisscross pattern.
• Torque to 9 Nm (80 in-lbs).
• Do not use sealant unless the part instructions specifically say to.

Step 8: Reinstall the pulley and belt

• Install the pulley and start the bolts by hand.
• Use a 10mm socket to tighten the pulley bolts.
• Torque to 25 Nm (18 ft-lbs).
• Route the serpentine belt exactly as it was before.
• Use the 14mm socket or breaker bar to rotate the tensioner and slip the belt onto the last pulley.

Step 9: Reinstall the splash shield

• Use a 10mm socket to reinstall the lower cover and fasteners.

Step 10: Refill and bleed the cooling system

• Use a spill-free funnel to fill the system with Toyota Super Long Life Coolant.
• Fill to the correct level and leave the funnel installed.
• Start the car and let it reach operating temperature while watching the coolant level.
• Top off as air bleeds out.
• Set the heater to HOT and the fan to low so coolant can circulate through the heater core.

Step 11: Final tighten and leak check

• Inspect around the pump, hoses, pulley, and drain cock for leaks.
• Recheck coolant level after the engine cools fully.
• Top off to the full line if needed.

---

✅ After Repair

• Drive the vehicle and watch the temperature gauge or warning lights.
• Check again for coolant leaks after the test drive.
• Recheck coolant level the next morning when fully cold.
• If you see overheating, loss of heat, or repeated coolant loss, stop and recheck the bleed process.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $530-$820 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
