🔧 Highlander - Water Pump Replacement

On your Highlander’s V6, the water pump circulates coolant through the engine and radiator. Replacement typically involves draining coolant, removing the drive belt, removing the pump, then refilling and bleeding the cooling system to prevent overheating.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a completely cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and pulleys; it can cause belt slip.
• ⚠️ Disconnect the negative battery cable if your hands/tools will be near the alternator wiring.
• ⚠️ Use only Toyota pink coolant; mixing types can cause sludge and overheating.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Trim clip removal tool
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set: 10mm, 12mm, 14mm, 17mm, 19mm
• Torque wrench (10–80 ft-lbs range)
• Serpentine belt tool (specialty)
• Breaker bar (1/2")
• Flathead screwdriver
• Pliers
• Plastic gasket scraper
• Shop towels
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket / O-ring seal (as supplied) - Qty: 1
• Toyota Super Long Life Coolant (pink) 50/50 premix - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1 Optional but smart if worn
• Replacement plastic clips for splash shields/undercover - Qty: 5-10

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (radiator hoses should feel cool).
• Raise the front of your Highlander with a floor jack and place it securely on jack stands.
• Set the heater to HOT later during bleeding so coolant can flow through the heater core.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower covers for access

• Use a trim clip removal tool to remove the plastic clips holding the engine under cover.
• Use a 10mm socket to remove any under cover bolts (some fasteners are bolts, some are clips).
• If access is tight from underneath, remove the passenger-side front wheel using a 21mm socket (if equipped with 21mm lug nuts) and remove the inner splash shield with a trim clip removal tool and 10mm socket.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain cock (bottom of radiator).
• Slowly open the radiator cap to relieve any leftover pressure.
• Open the drain cock by hand or with a flathead screwdriver (whichever fits your drain cock style) and let coolant drain.
• Tip: Keep pets away—coolant is poisonous.

Step 3: Remove the serpentine drive belt

• Locate the belt tensioner. The belt tensioner is a spring-loaded pulley that keeps belt tension automatically.
• Use a serpentine belt tool (specialty) on the tensioner and rotate it to relieve belt tension.
• Slide the belt off a smooth pulley, then remove the belt from the engine.
• Tip: Take a photo of belt routing first.

Step 4: Remove the water pump pulley (if equipped with a removable pulley)

• Hold the pulley from turning by keeping light tension on the belt (if still installed) or use a breaker bar carefully against the pulley while loosening bolts.
• Use a 10mm socket to remove the pulley bolts, then remove the pulley.

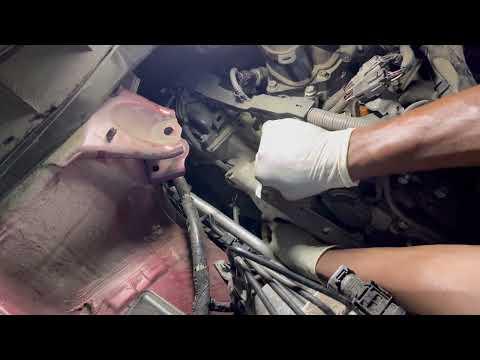

Step 5: Remove the water pump

• Place shop towels under the pump area to catch leftover coolant.
• Disconnect any coolant hose(s) attached at/near the pump using pliers to release spring clamps (if present), then twist/pull the hose off carefully.
• Use a 10mm socket and 12mm socket to remove the water pump mounting bolts (Toyota commonly uses multiple bolt lengths—lay them out in order).
• Remove the pump. If it’s stuck, tap gently by hand—do not pry hard against the aluminum engine surface.

Step 6: Clean the mating surface

• Use a plastic gasket scraper to remove old gasket material or residue from the engine surface.
• Wipe clean with shop towels.
• Tip: Don’t gouge the aluminum—scrape gently.

Step 7: Install the new water pump and seal

• Install the new gasket/O-ring on the new pump (as supplied with the pump).
• Position the pump on the engine and start all bolts by hand to prevent cross-threading.
• Tighten bolts evenly in a crisscross pattern using a torque wrench.
• Torque to 10 Nm (89 in-lbs) for the water pump bolts.

Step 8: Reinstall the water pump pulley and drive belt

• Reinstall the pulley and hand-start the bolts using a 10mm socket.
• Tighten the pulley bolts with a torque wrench: Torque to 21 Nm (15 ft-lbs).
• Route the belt per your photo/diagram and use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt into place.
• Visually confirm the belt is fully seated in every ribbed pulley groove.

Step 9: Reinstall splash shields and under cover

• Reinstall any splash shields using the trim clip removal tool and 10mm socket.
• Reinstall the under cover using the 10mm socket and clips.
• If the wheel was removed, reinstall it using a 21mm socket and torque the lug nuts with a torque wrench: Torque to 103 Nm (76 ft-lbs).

Step 10: Refill and bleed the cooling system

• Close the radiator drain cock (hand tight; do not over-tighten).
• Refill slowly with Toyota Super Long Life Coolant (pink) 50/50 premix using a funnel.
• Fill the reservoir to the FULL line.
• Start the engine and set the heater to HOT with the fan on low.
• Let the engine idle and watch the coolant level; top off as air burps out.
• Once the radiator fans cycle and heat blows hot, shut the engine off and let it cool, then recheck and top off the radiator and reservoir.

---

✅ After Repair

• Check for leaks around the water pump and hose connections with the engine running.
• Verify the temperature gauge stays normal on a 10-15 minute test drive.
• After the next full cool-down (later that day or next morning), recheck coolant level and top off if needed.
• Listen for belt squeal; if present, re-check belt seating on the pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,400 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $400-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
