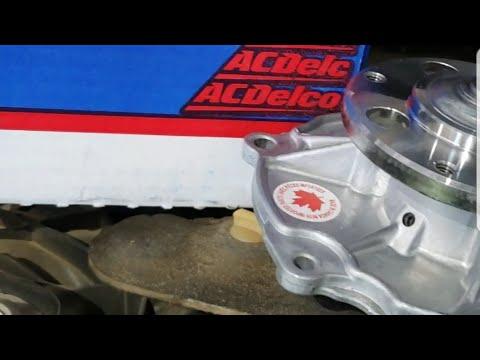

🔧 Colorado - Water Pump Replacement

The water pump circulates coolant through your Colorado’s engine and radiator. Replacing it typically involves draining coolant, removing the serpentine belt and front-of-engine components for access, swapping the pump and gasket/seal, then refilling and bleeding the cooling system.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant tank hot; wait until fully cool.
• ⚠️ Support the truck with jack stands on solid, level ground.
• ⚠️ Coolant is toxic—keep away from kids/pets and clean spills.
• Disconnect the negative battery cable to prevent accidental fan operation (the electric fan can start unexpectedly).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10 quarts)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Serpentine belt tool 3/8" drive
• Pliers (hose clamp pliers)
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop rags
• Cooling system vacuum fill tool (specialty)
• Cooling system pressure tester (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket / seal - Qty: 1
• Dex-Cool coolant (premix 50/50) - Qty: 3-4 gallons
• Serpentine belt - Qty: 1 Optional but smart if worn
• Hose clamp (assorted) - Qty: 1 Optional if clamps are weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• Disconnect the negative battery cable using a 10mm socket.
• Plan coolant fill/bleed: a cooling system vacuum fill tool (specialty) is the easiest way to prevent air pockets (air trapped in the system can cause overheating).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and access the lower front area

• Use a floor jack (rated 3-ton minimum) to lift the front and set it on jack stands (rated 3-ton minimum).
• Remove any lower splash shield(s) using an 8mm socket and a trim clip removal tool.

Step 2: Drain the coolant

• Place a drain pan (at least 10 quarts) under the radiator area.
• Slowly loosen the coolant surge tank cap to release any residual pressure.
• Drain coolant from the radiator drain (if equipped) and/or lower radiator hose using pliers (hose clamp pliers).

Step 3: Remove the air intake ducting for working room

• Loosen intake clamps using an 8mm socket or flathead screwdriver.
• Remove the intake duct/air snorkel and set aside.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool 3/8" drive on the belt tensioner and rotate to release tension.
• Slide the belt off one pulley, then remove it fully.
• Tip: Take a belt routing photo first.

Step 5: Remove components blocking the water pump (front-of-engine)

• Remove the electric fan/shroud if it blocks access (common on your Colorado) using a 10mm socket, trim clip removal tool, and disconnect connectors carefully.
• If the alternator or brackets block the pump on your setup, remove them with a 13mm socket and 15mm socket.
• Important: Keep bolts grouped by component so they go back in the same locations.

Step 6: Disconnect water pump hoses

• Use pliers (hose clamp pliers) to release clamps and pull hoses off the pump.
• Expect more coolant to drain—keep the drain pan positioned.

Step 7: Remove the water pump

• Remove water pump fasteners using a 10mm socket (some fasteners may be 13mm socket depending on bracketry).
• Remove the water pump from the engine.
• Clean the mating surface using a gasket scraper (plastic), then wipe with brake cleaner spray and shop rags.
• Torque note: I can’t give the exact OEM torque values without the exact fastener set/variant. If you upload a photo of the torque-spec page or the pump/bolt layout, I’ll plug in the correct torque specs for each fastener before you reassemble.

Step 8: Install the new water pump and gasket/seal

• Install the new water pump gasket / seal (make sure it sits flat and isn’t pinched).
• Position the new pump and start all bolts by hand (prevents cross-threading).
• Tighten bolts evenly in a crisscross pattern using a 3/8" drive ratchet, then final-tighten with a 3/8" drive torque wrench to OEM spec (once confirmed).

Step 9: Reinstall removed components and belt

• Reinstall brackets/alternator/fan/shroud using the same sockets used for removal (10mm, 13mm, 15mm).
• Route the belt per your photo and use the serpentine belt tool 3/8" drive to swing the tensioner and slip the belt on.

Step 10: Refill and bleed the cooling system

• Best method (recommended): Use a cooling system vacuum fill tool (specialty) to pull vacuum and refill with Dex-Cool coolant (premix 50/50).
• Manual method: Use a funnel to fill the surge tank slowly, start the engine, set heat to HOT, and let it idle while topping off as the level drops.
• Watch the temperature gauge closely; shut down if it climbs abnormally.

Step 11: Pressure test for leaks

• With the engine off and coolant filled, use a cooling system pressure tester (specialty) to pressurize the system and check for leaks at the pump and hose connections.
• Reinstall the splash shield(s) using the 8mm socket and trim clip removal tool.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Road test 10–15 minutes, then recheck coolant level after it cools completely.
• Inspect for drips under the front of the engine and around hose connections.
• If you ever see overheating, heater blowing cold, or gurgling sounds, stop and re-bleed the system (air trapped).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $720-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
