🔧 Sportage - Water Pump Replacement

The water pump circulates coolant through your Sportage’s engine and radiator. If it’s leaking, noisy, or the engine is overheating, replacing the pump restores proper cooling and helps prevent engine damage.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; let it cool fully.
• ⚠️ Support the Sportage with jack stands before going underneath.
• ⚠️ Coolant is toxic; catch it in a drain pan and dispose of properly.
• ⚠️ Keep fingers/tools clear of belt and pulleys.
• ⚠️ If you remove any engine mount hardware, support the engine with a jack and wood block.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10–200 Nm range)
• Socket set (8mm, 10mm, 12mm, 14mm, 17mm)
• Wrench set (10mm, 12mm, 14mm)
• Phillips screwdriver
• Flat-blade screwdriver
• Pliers (hose clamp)
• Gasket scraper (plastic)
• Razor scraper (metal)
• Shop towels
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket or O-ring (as equipped) - Qty: 1
• Engine coolant (premixed, Asian vehicle compatible) - Qty: 2-3 gallons
• Accessory drive belt - Qty: 1 Recommended while you’re there
• Hose clamps (worm gear or OEM-style) - Qty: 1-2 If originals are weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (at least 2-3 hours) before opening the cooling system.
• Plan to replace coolant with the correct type; mixing coolant types can cause sludge.
• Two quick questions so I give you the correct factory torque specs and the right access steps:
  • Are we talking about the engine-driven mechanical water pump (front of engine), not an auxiliary electric pump?
  • Is your goal to fix a coolant leak, an overheating issue, or a bearing/whine noise?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm pump type and gather torque specs

• Before you loosen anything, confirm the replacement pump matches the one on the engine (same bolt pattern and hose necks).
• Use a torque wrench (10–200 Nm range) for reassembly; correct torque matters to prevent leaks and cracked housings.
• Reply to the two questions in “Before You Begin” and I’ll provide the exact Kia torque specs for: water pump bolts, belt tensioner hardware (if loosened), and any mount/brace bolts you may need to remove.

Step 2: Raise the front and remove lower covers

• Use a floor jack (rated 3-ton minimum) to lift the front and set it on jack stands (rated 3-ton minimum).
• Use a trim clip removal tool and 10mm socket to remove the lower splash shield/undertray fasteners.

Step 3: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Open the radiator drain (if equipped) using a Phillips screwdriver or pliers (hose clamp) depending on the style, and drain coolant fully.

Step 4: Remove the accessory drive belt

• Take a picture of the belt routing before removal.
• Use a breaker bar with the correct socket on the belt tensioner to rotate it and release belt tension.
• Slip the belt off a smooth pulley first, then remove it completely.
• If the belt is cracked, replace it.

Step 5: Gain access to the water pump

• Depending on access, remove any brackets or hoses blocking the pump using a 10mm socket, 12mm socket, and pliers (hose clamp).
• Twist hoses gently to break them free; do not pry hard on plastic fittings.

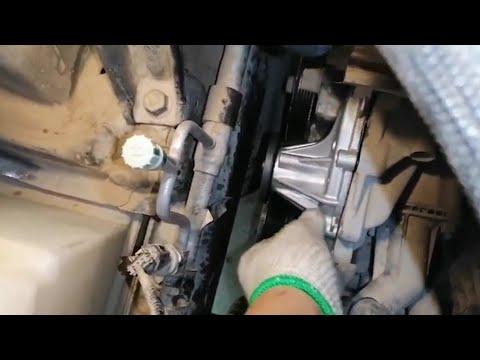

Step 6: Remove the water pump

• Place the drain pan (at least 10-quart) under the pump because more coolant will spill.
• Remove the water pump bolts using a 10mm socket or 12mm socket (bolt head size varies by pump design).
• Remove the pump and gasket/O-ring.

Step 7: Clean the mating surface

• Use a gasket scraper (plastic) first to remove old gasket material.
• If needed, carefully finish with a razor scraper (metal) while keeping the blade flat to avoid gouging aluminum.
• Wipe clean with shop towels until the surface is smooth and dry.

Step 8: Install the new water pump

• Install the new gasket/O-ring exactly as supplied with the pump.
• Hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a ratchet, then final-tighten with a torque wrench (10–200 Nm range).
• Torque to Kia factory specification (I’ll provide the exact Nm/ft-lbs once you answer the two questions above).

Step 9: Reinstall belt and removed components

• Reinstall any brackets/hoses using a 10mm socket, 12mm socket, and pliers (hose clamp).
• Route the belt per your photo, rotate the tensioner with the breaker bar, and slip the belt on fully.
• Double-check the belt is seated in every pulley groove using a flashlight.

Step 10: Refill and bleed the cooling system

• Close the drain and refill using a funnel with the correct engine coolant (premixed, Asian vehicle compatible).
• Start the engine and set HVAC to maximum heat to help purge air.
• Top off as the level drops, then install the cap and check for leaks.
• Air pockets can cause overheating.

---

✅ After Repair

• Let the engine reach normal operating temperature and verify cabin heat is hot (a good sign coolant is circulating).
• Check for leaks around the water pump, hose connections, and under the vehicle using a flashlight.
• After a full cool-down, recheck coolant level and top off as needed.
• If the temperature gauge climbs or heat goes cold at idle, shut it down and re-bleed (likely trapped air).

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
