🔧 Rogue - Engine Water Pump Replacement

You'll be replacing the engine’s mechanical water pump on your Rogue, which circulates coolant through the engine to prevent overheating. This involves draining some coolant, removing the drive belt and pump, then installing a new pump with a fresh gasket and refilling/bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 3–4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cold engine. Hot coolant can cause severe burns.
• ⚠️ Hybrid system: Do not touch any orange cables/connectors; those are high-voltage lines.
• ⚠️ Disconnect the 12V negative battery terminal before starting to prevent the engine from starting unexpectedly.
• ⚠️ Support the vehicle securely with jack stands if you raise it; never rely only on a floor jack.
• ⚠️ Coolant is toxic. Avoid skin contact and keep away from children and animals. Dispose of old coolant at a recycling center.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Metric socket set (8mm–19mm)
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive extension set (3"–6")
• 🧰 Torque wrench (inch-lb and ft-lb capable)
• 🧰 Metric combination wrench set (8mm–19mm)
• 🧰 Serpentine belt tool or 3/8" breaker bar
• 🧰 Flathead screwdriver (medium)
• 🧰 Phillips screwdriver
• 🧰 Pliers set (needle nose and slip-joint)
• 🧰 Plastic trim clip removal tool
• 🧰 Coolant drain pan (at least 10-liter capacity)
• 🧰 Funnel with small spout
• 🧰 Plastic scraper
• 🧰 Razor blade scraper
• 🧰 Shop towels or rags
• 🧰 Floor jack (rated 2-ton minimum)
• 🧰 Jack stands (2-ton minimum, pair)
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Work light or LED lamp

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Engine water pump (with housing) - Qty: 1
• 🔩 Water pump gasket or O-ring (as specified for pump) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Engine coolant (Nissan Genuine Blue or equivalent premix) - Qty: ~6–7 liters
• 🔩 RTV silicone sealant (coolant-rated, if specified) - Qty: 1 tube
• 🔩 New hose clamps (matching hose size, optional) - Qty: 2–4
• 🔩 Distilled water - Qty: 2–3 liters (if mixing concentrate)
• 🔩 Replacement plastic clips for splash shield - Qty: 6–10

---

📋 Before You Begin

• 🧾 Park your Rogue on a flat surface, engage the parking brake, and place the transmission in P.
• 🧾 Let the engine cool for at least 2–3 hours until all hoses are cool to the touch.
• 🧾 Open the hood and remove the engine cover if fitted (pull up gently at the corners).
• 🧾 Disconnect the negative (-) battery terminal using a 10mm socket and move the cable aside so it cannot touch the post.
• 🧾 Place wheel chocks behind the rear wheels if you plan to lift the front.
• 🧾 Have the new pump and gasket laid out and ready to minimize open time of the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and prepare the vehicle

• Use the floor jack to lift the front of your Rogue at the front jacking point behind the radiator support.
• Place jack stands under the factory pinch welds on both sides and gently lower the vehicle onto them.
• Remove the front lower engine splash shield using a 10mm socket and plastic trim tool for clips.
• Position the coolant drain pan under the radiator drain area.

Step 2: Drain enough coolant

• Slowly loosen the radiator cap using your hand or a shop rag for grip; do this only when the engine is cold.
• Open the radiator drain plug (petcock) at the bottom of the radiator using a Phillips screwdriver or by hand, depending on style.
• Allow coolant to drain until flow slows to a drip (you do not need to drain every drop).
• Close the drain plug snugly by hand or with the Phillips screwdriver; do not overtighten.

Step 3: Remove the serpentine belt

• From the right side of the engine bay, locate the serpentine belt and automatic tensioner.
• Insert the serpentine belt tool or 3/8" breaker bar into the tensioner square hole.
• Rotate the tensioner to relieve belt tension, then slide the belt off the water pump pulley using your free hand.
• Slowly release the tensioner back to its rest position.
• Remove the belt completely, noting the routing. Take a clear photo before removal.

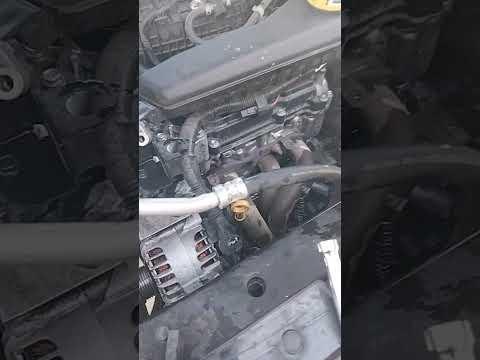

Step 4: Access and identify the water pump

• Use the work light to clearly see the front of the engine on the passenger side.
• Identify the water pump: a round metal housing with a pulley, bolted to the engine block, with coolant hoses nearby.
• Remove any small plastic covers or brackets obstructing access using a 10mm socket and ratchet.

Step 5: Disconnect water pump hoses

• Place the drain pan directly under the water pump area to catch extra coolant.
• Use pliers to compress spring hose clamps and slide them back along the hose.
• Twist each hose gently with your hand to break it loose, then pull it off the water pump fittings. Use a flathead screwdriver carefully if stuck.
• Allow any remaining coolant to drain into the pan.

Step 6: Remove the water pump

• Use a 10mm socket, extension, and ratchet to remove all water pump mounting bolts. There are usually several around the perimeter.
• Note the length and position of each bolt as you remove them. Lay them out in pump shape.
• Gently tap the pump housing with the palm of your hand or the side of a plastic handle to break it free from the engine block.
• Carefully pull the pump away; more coolant will drain. Avoid dropping debris into the opening.

Step 7: Clean the gasket surface

• Use the plastic scraper to remove most of the old gasket material from the engine block surface.
• For stubborn spots, use the razor blade scraper very gently, keeping it flat to avoid gouging the metal.
• Wipe the surface clean with shop towels until it is smooth and free of old gasket, sealant, and coolant.
• If the service info calls for RTV, apply a thin, even bead of RTV silicone sealant to the new pump or block as specified and let it skin for a few minutes. Do not over-apply RTV.

Step 8: Install the new water pump

• Position the new gasket or O-ring on the pump. Some pumps have locating pins to hold the gasket.
• Carefully place the new water pump onto the engine, aligning bolt holes without smearing the gasket or RTV.
• Hand-thread all pump bolts using your fingers to avoid cross-threading.
• Using a 10mm socket and ratchet, snug the bolts in a crisscross pattern, pulling the pump evenly to the block.
• With a torque wrench and 10mm socket, tighten all water pump bolts to 10 Nm (89 in-lbs) in a crisscross sequence.

Step 9: Reconnect hoses and clamps

• Slide each coolant hose fully onto its fitting on the new pump.
• Use pliers to move the hose clamps back into place over the hose ends.
• If any clamp is weak or rusted, replace it with a new one using a screwdriver to tighten the new clamp.
• Wipe the area dry with shop towels so you can easily see any leaks later.

Step 10: Install the new serpentine belt

• Route the new serpentine belt according to the belt routing diagram under the hood or from your photo.
• Use the serpentine belt tool or 3/8" breaker bar to rotate the tensioner and slip the belt over the last pulley (usually the water pump or alternator).
• Slowly release the tensioner so it presses on the belt.
• Visually confirm the belt sits in every pulley groove correctly and is centered.

Step 11: Reinstall splash shield and lower vehicle

• Reattach the lower engine splash shield using a 10mm socket and refit any clips with the plastic trim tool.
• Use the floor jack to lift the vehicle slightly, remove the jack stands, then lower the vehicle fully to the ground.

Step 12: Refill the cooling system

• Make sure the radiator drain plug is closed.
• Insert a funnel in the radiator filler neck.
• Slowly pour the correct engine coolant (premixed or mixed with distilled water) into the radiator until full.
• Fill the coolant reservoir to the “MAX” line.
• Leave the radiator cap off for initial bleeding.

Step 13: Reconnect battery and bleed air from the system

• Reconnect the negative battery terminal using a 10mm socket and tighten to about 5 Nm (44 in-lbs) (snug, not overtight).
• Start the engine and let it idle. Turn the heater to maximum heat and fan speed to help circulate coolant.
• Watch the coolant level in the radiator; as the engine warms, air bubbles will escape. Add coolant as needed using the funnel.
• Gently rev the engine to about 2000 rpm for a few seconds at a time to help move air out.
• Once bubbles stop and the level stabilizes, install the radiator cap firmly by hand.
• Let the engine reach normal operating temperature and verify the cabin heater blows hot air.

Step 14: Final checks for leaks

• With the engine running, use the work light to inspect the water pump area and hose connections from above and below.
• Look for any seepage or dripping coolant; if found, shut off the engine and gently retighten hoses or bolts as needed using the appropriate socket or pliers.
• After shutting off the engine, allow it to cool completely and recheck coolant level in the reservoir, topping up to “MAX” if needed.

---

✅ After Repair

• 🔁 Over the next few short trips, check under the Rogue and around the water pump area for any new coolant spots.
• 🔁 Recheck the coolant reservoir level when the engine is cold, and top up if it drops below “FULL” or “MAX”.
• 🔁 Listen for any unusual belt noises (squeal or chirp). If heard, recheck belt routing and tensioner operation.
• 🔁 Watch the temperature gauge; it should stay in the normal range. If it climbs toward hot, stop driving and recheck coolant and air bleeding.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$850 (parts + labor)

DIY Cost: $160–$260 (parts only)

You Save: $390–$590 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
