🔧 Water Pump - Replacement

The water pump circulates coolant through the engine and radiator. On your XC60, a failing pump can cause coolant loss, overheating, bearing noise, or seepage from the pump housing. This job is moderate-to-advanced because access is tight and the cooling system must be refilled and bled carefully.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system. Hot coolant can cause severe burns.
• Use a drain pan and keep coolant away from children, pets, and pavement.
• Disconnect the negative battery cable before working near the belt drive area.
• Keep hands clear of the belt path and pulleys. If the engine is running during testing, the belt and fan area can catch fingers.
• Use only the correct Volvo-spec coolant. Mixing coolant types can cause sludge and sealing problems.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• Torx bit set
• Ratcheting breaker bar
• Serpentine belt tool (specialty)
• Drain pan
• Flat blade screwdriver
• Pliers
• Torque wrench
• Funnel
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket or O-ring - Qty: 1
• Engine coolant - Qty: 2-3 gallons
• Serpentine belt - Qty: 1
• Coolant hose seals or clamps - Qty: 1 set

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Let the engine cool fully before opening the cooling system.
• Disconnect the negative battery cable.
• Raise the front of the vehicle and support it securely on jack stands if you need bottom access.
• Have the new coolant ready before draining the system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the coolant reservoir cap slowly to release any remaining pressure.
• Place a drain pan under the radiator drain area or lower hose.
• Use pliers or a screwdriver, depending on the clamp style, to remove the lower radiator hose and drain the coolant.
• Let the system drain fully.

Step 2: Remove the engine cover and intake ducting

• Use your hands and a metric socket set where needed to remove the top engine cover.
• Remove any intake ducting or brackets blocking access to the front of the engine.
• Keep all fasteners organized.

Step 3: Remove the serpentine belt

• Use the serpentine belt tool (specialty) to relieve tension from the belt tensioner.
• Slide the belt off the pulleys and remove it from the engine bay.
• Take a photo of the belt routing first.

Step 4: Remove the water pump access components

• Use the correct Torx bit and metric socket to remove any covers, brackets, or splash shields blocking the pump.
• If equipped, remove the fan shroud or nearby mounting pieces for more clearance.
• Work slowly so you do not crack plastic parts.

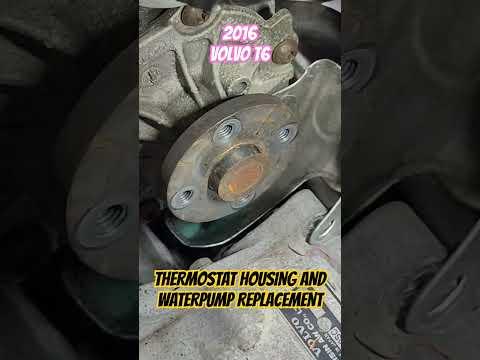

Step 5: Remove the water pump

• Use the metric socket set to remove the water pump mounting bolts.
• Pull the pump straight off the engine.
• Expect some coolant spillage.
• Inspect the old pump for wobble, leakage, or damaged impeller.

Step 6: Clean the mounting surface

• Use a flat blade screwdriver carefully, then clean the surface by hand.
• Remove all old gasket material and corrosion from the engine face.
• Do not gouge the aluminum surface.

Step 7: Install the new water pump

• Install the new water pump gasket or O-ring on the replacement pump.
• Position the pump on the engine and start all bolts by hand.
• Use a torque wrench to tighten the water pump bolts evenly in a cross pattern.
• Torque to 10-12 Nm (7-9 ft-lbs).
• Snug first, then torque evenly.

Step 8: Reinstall removed components

• Reinstall any brackets, covers, intake ducting, and splash shields using the correct Torx bit and metric socket.
• Install the new serpentine belt and route it exactly as before.
• Use the serpentine belt tool (specialty) to release the tensioner and seat the belt fully on all pulleys.

Step 9: Refill the cooling system

• Close the drain point and reconnect the lower hose.
• Use a funnel to fill the cooling system with the correct coolant mixture.
• Fill the reservoir to the proper level mark.
• Bleed air from the system using the vehicle’s cooling system bleed procedure as the engine warms up.

Step 10: Bleed and verify operation

• Reconnect the negative battery cable.
• Start the engine and let it idle.
• Turn the heater to full hot and medium fan speed.
• Watch coolant level, check for leaks, and top off as air purges.
• Allow the engine to reach operating temperature and confirm the radiator fans cycle normally.

---

✅ After Repair

• Check the coolant level again after the engine cools fully.
• Inspect the pump area, hoses, and drain points for leaks.
• Test drive the vehicle and monitor engine temperature.
• Recheck coolant level the next day and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,500 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $720-$1,080 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
