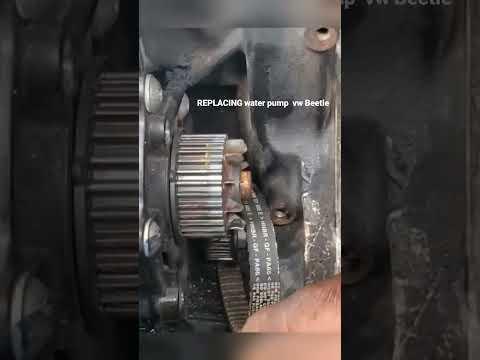

🔧 Water Pump - Replacement

This repair involves removing the coolant pump module, transferring hoses and seals as needed, and refilling/bleeding the cooling system. On your Beetle, the pump is mounted low on the engine and access is usually easiest from the right front wheel well and underneath.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Let the engine go completely cold before opening the cooling system.
• Coolant is toxic and can cause burns; wear gloves and safety glasses.
• Use jack stands; do not rely on a floor jack alone.
• Disconnect the negative battery cable if you will be working near the starter, alternator wiring, or fan connectors.
• Keep coolant away from belts, pulleys, and the serpentine belt path.
• Air trapped in the cooling system can cause overheating, so bleeding must be done carefully.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set
• Torx bit set
• Triple-square bit set
• Ratchet
• Extensions
• Torque wrench
• Drain pan
• Flat-blade trim tool
• Hose clamp pliers
• Pick tool
• Coolant fill funnel (specialty)
• Catch container
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Thermostat housing seal or gasket - Qty: 1
• Coolant flange O-rings / hose seals - Qty: 1 set
• VW-spec G12evo or equivalent coolant concentrate - Qty: 1-2 liters concentrate
• Distilled water - Qty: 1-2 gallons
• New hose clamps - Qty: As needed
• Engine undertray fasteners - Qty: As needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before starting.
• Raise the front of the vehicle and support it securely on jack stands.
• Remove the lower engine cover for access.
• Open the coolant reservoir cap only when the engine is cold.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator area and open the lower drain point or disconnect the lower radiator hose if no drain is fitted.
• Use hose clamp pliers to remove the clamp and control the hose release.
• Drain enough coolant so the pump area is below the coolant level.

Step 2: Remove the right front wheel and splash shield

• Use the correct wheel socket to remove the right front wheel.
• Use Torx bits and a trim tool to remove the wheel liner and splash shield fasteners.
• Pull the liner back to expose the water pump area.

Step 3: Remove the lower engine cover

• Use Torx bits and a ratchet to remove the undertray fasteners.
• Lower the cover and set it aside.

Step 4: Remove the drive belt if it blocks access

• Use the appropriate serpentine belt tool or ratchet on the tensioner to relieve belt tension.
• Slip the belt off the pulleys and inspect it for cracking or glazing.
• Take a photo first.

Step 5: Disconnect coolant hoses and connectors

• Use hose clamp pliers to release the spring clamps.
• Twist hoses gently to break them free, then pull them off.
• Disconnect any electrical connector on the pump or thermostat housing by pressing the lock tab.

Step 6: Remove the water pump assembly

• Use a metric socket and extensions to remove the pump mounting bolts.
• Support the assembly as the last bolt comes out.
• Remove the pump and thermostat module from the engine.
• Torque on installation: 10 Nm (7 ft-lbs) for the pump/module bolts unless your replacement kit specifies otherwise.

Step 7: Clean the mounting surface

• Use a plastic scraper and shop rags to clean the sealing surface.
• Do not scratch the aluminum surface.
• Make sure the old gasket material is fully removed.

Step 8: Install the new water pump assembly

• Compare the new pump to the old one before installation.
• Lightly lubricate new O-rings with fresh coolant.
• Set the pump in place and start all bolts by hand.
• Use a torque wrench to tighten the bolts evenly to 10 Nm (7 ft-lbs).

Step 9: Reconnect hoses, clips, and connectors

• Push hoses fully onto their fittings until seated.
• Reinstall the spring clamps with hose clamp pliers.
• Reconnect any electrical plugs until they click.

Step 10: Reinstall the belt, splash shield, and wheel

• Use the belt tool or ratchet to reinstall the serpentine belt if removed.
• Reinstall the wheel liner and undertray using the original fasteners.
• Install the wheel and tighten the lug bolts to 120 Nm (89 ft-lbs).

Step 11: Refill and bleed the cooling system

• Mix the correct VW-spec coolant with distilled water if using concentrate.
• Use a coolant fill funnel to fill the reservoir slowly.
• Set the cabin heat to full hot and the blower to low.
• Start the engine and let it idle while watching coolant level and temperature.
• Add coolant as the level drops.
• Top off only when the engine is cool.

Step 12: Final checks

• Inspect all hose connections and the pump seam for leaks.
• Verify the cooling fans cycle normally.
• Confirm the temperature gauge stays normal during a full warm-up.

---

✅ After Repair

• Road test the vehicle and recheck coolant level after it cools down.
• Inspect for drips under the car after the test drive.
• Recheck the reservoir level the next morning and top off if needed.
• If the temperature warning light returns, stop driving and recheck for air in the system or leaks.

---
