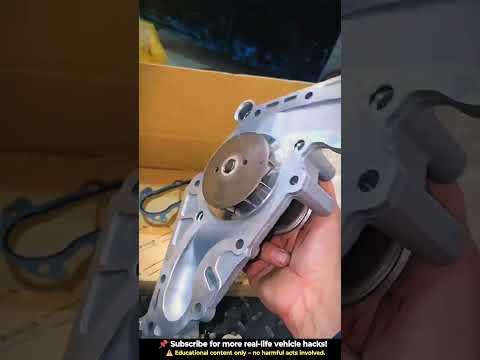

🔧 Water Pump - Replacement

The water pump circulates coolant through the engine to control temperature. On your Land Cruiser, replacing it usually means draining coolant, removing the drive belt and front accessory components, then swapping the pump and gasket. It’s important to refill and bleed the cooling system correctly so the engine does not overheat.

Difficulty Level: Intermediate | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Work only on a completely cool engine to avoid burns from hot coolant.
• Keep coolant away from children, pets, and painted surfaces.
• Disconnect the negative battery cable before starting if you will be near the fan or electrical connectors.
• Use jack stands if you raise the front of the vehicle; never rely on a jack alone.
• Dispose of old coolant properly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• Torque wrench
• Drain pan
• Flat-blade screwdriver
• Needle-nose pliers
• Gasket scraper
• Shop towels
• Funnel
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket - Qty: 1
• Engine coolant - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1
• Thermostat gasket - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before opening the cooling system.
• Disconnect the negative battery cable if you want extra safety around the fan and connectors.
• Place a drain pan under the radiator drain.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Use a drain pan and open the radiator drain cock carefully.
• Remove the radiator cap only after the engine is cool.
• Drain enough coolant so the water pump can be removed without spilling excessively.

Step 2: Remove the engine cover and intake pieces as needed

• Use a 10mm socket to remove the engine cover fasteners if equipped.
• Move any intake ducting or covers that block access to the front of the engine.

Step 3: Remove the drive belt

• Use a 14mm socket on the belt tensioner to release tension.
• Slip the serpentine belt off the pulleys and remove it from the engine bay.
• Take a photo of the belt path first.

Step 4: Remove components blocking the water pump

• Use a 10mm socket and 12mm socket to remove any shrouds, brackets, or covers in front of the pump.
• If the fan shroud limits access, remove the upper shroud fasteners and move it aside.

Step 5: Remove the water pump pulley

• Use a 10mm socket to remove the pulley bolts.
• Hold the pulley steady by hand while loosening the bolts.
• Remove the pulley and set it aside.

Step 6: Remove the old water pump

• Use a 10mm socket to remove the water pump bolts.
• Break the pump loose and pull it straight off the engine.
• Expect some leftover coolant to spill out.

Step 7: Clean the mounting surface

• Use a gasket scraper and shop towels to clean the engine mating surface.
• Remove all old gasket material without gouging the aluminum surface.
• A clean surface prevents leaks.

Step 8: Install the new water pump

• Install the water pump gasket on the new pump.
• Position the new pump on the engine and start all bolts by hand.
• Use a 10mm socket to snug the bolts evenly in a crisscross pattern.
• Torque to 9 Nm (80 in-lbs).

Step 9: Reinstall the pulley and removed parts

• Install the pulley and start the bolts by hand.
• Use a 10mm socket to tighten the pulley bolts evenly.
• Torque to 25 Nm (18 ft-lbs).
• Reinstall any brackets, covers, and the fan shroud using the appropriate sockets.

Step 10: Reinstall the drive belt

• Use a 14mm socket on the tensioner to route the belt over all pulleys.
• Double-check belt alignment on every pulley before releasing the tensioner.
• Misrouted belts can fail fast.

Step 11: Refill the cooling system

• Use a funnel to fill the radiator with the correct coolant mix.
• Fill the overflow reservoir to the proper mark.
• Install the radiator cap after filling.

Step 12: Bleed air from the system and check for leaks

• Start the engine and let it idle with the heater set to hot.
• Watch the coolant level and top off as air purges from the system.
• Use a flashlight to inspect the pump, hoses, and drain cock for leaks.
• Torque any removed drain plugs or bleeder fittings to manufacturer spec if disturbed.

---

✅ After Repair

• Check coolant level again after the engine cools completely.
• Verify the temperature gauge stays normal during a road test.
• Recheck the water pump area for seepage after the test drive.
• If the belt squeals, stop and recheck routing and tension.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $720-$1,180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
