🔧 Water Pump - Replacement

The water pump circulates coolant through the engine so it can stay at the right operating temperature. On your Highlander, this job involves draining coolant, removing the drive belt, and replacing the pump and gasket carefully to prevent leaks.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Work only with the engine completely cold. Hot coolant can cause severe burns.
• Disconnect the negative battery cable with a 10mm wrench before starting if you will be working near the belt or starter wiring.
• Use a drain pan and keep coolant away from children and pets. It is toxic.
• Support the vehicle only if you need extra access under the front. If raised, use jack stands. Never rely on a jack alone.
• Keep the serpentine belt clear of oil and coolant. Contamination can shorten belt life.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Short extension
• Torque wrench
• Serpentine belt tool
• Drain pan
• Funnel
• Gasket scraper
• Plastic trim tool
• Shop towels
• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated to vehicle weight)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant equivalent) - Qty: 2 gallons
• Accessory drive belt - Qty: 1
• Thermostat gasket/O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before opening the cooling system.
• Have a drain pan ready before you remove any hoses or the pump.
• Because this Highlander uses a transverse V6, access is tighter on the passenger side. Take your time.
• If the coolant is old or contaminated, plan to replace it completely, not just top it off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power and prepare access

• Use a 10mm wrench to disconnect the negative battery cable.
• If needed for better access, raise the front of the vehicle with a floor jack and secure it with jack stands.
• Remove the engine undercover using a 10mm socket and ratchet.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain area.
• Open the radiator drain cock carefully and drain the coolant.
• Remove the radiator cap only after the engine is cold.
• Keep coolant off painted surfaces.

Step 3: Remove the drive belt

• Use a serpentine belt tool to relieve tension from the belt tensioner.
• Slip the belt off the pulleys and remove it from the engine bay.
• Inspect the belt now. Replace it if cracked, glazed, or noisy.

Step 4: Remove the water pump pulley and related brackets

• Use a 12mm socket to remove the water pump pulley bolts.
• Remove any brackets, covers, or hoses blocking access to the pump using a 10mm socket or 12mm socket as needed.
• Set the hardware aside in order so reinstall is easier.

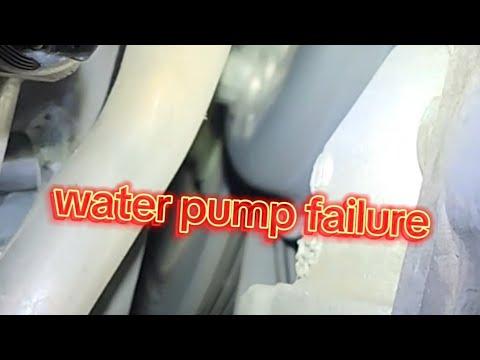

Step 5: Remove the water pump

• Use a 12mm socket to remove the water pump bolts.
• Gently break the pump free. If it is stuck, use a plastic trim tool only. Do not pry hard against the aluminum engine block.
• Remove the old pump and gasket.
• Clean the mounting surface with a gasket scraper and shop towels until it is clean and dry.

Step 6: Install the new water pump

• Install the new gasket on the pump. If the gasket design requires sealant, use only what the manufacturer specifies.
• Position the new pump on the engine and start all bolts by hand.
• Use a 12mm socket and torque wrench to tighten the bolts evenly.
• Torque to 10 Nm (89 in-lbs).
• Snug bolts in a crisscross pattern.

Step 7: Reinstall the pulley and belt

• Reinstall the water pump pulley and tighten the bolts with a 12mm socket.
• Torque to 25 Nm (18 ft-lbs).
• Route the serpentine belt using the factory belt path.
• Use the serpentine belt tool to release the tensioner, then slide the belt onto the final pulley.
• Double-check that the belt is seated correctly in every pulley groove.

Step 8: Reassemble and refill coolant

• Reinstall any brackets, hoses, covers, and the engine undercover using the correct sockets.
• Refill the cooling system with Toyota Super Long Life Coolant equivalent through a funnel.
• Fill slowly to reduce trapped air.

Step 9: Bleed air from the cooling system

• Start the engine with the radiator cap off only if safe and recommended by your service procedure.
• Let the engine idle and watch the coolant level.
• As air escapes, the level may drop. Top it off as needed.
• Once the engine reaches operating temperature and the thermostat opens, check for steady heat at the cabin vents and stable coolant flow.
• Install the radiator cap when the system is full and no more air bubbles appear.

Step 10: Final torque and leak check

• Inspect the pump, gasket area, hose connections, and drain cock for leaks.
• Recheck coolant level after the engine cools completely.
• Reconnect the negative battery cable with a 10mm wrench.

---

✅ After Repair

• Run the engine to full operating temperature and verify the temperature gauge stays normal.
• Check for coolant leaks again after a short test drive.
• Recheck coolant level the next morning when the engine is cold.
• If the belt was replaced, listen for squeaks or chirps during startup.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$360 (parts only)

You Save: $470-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
