🔧 Outback - Water Pump Replacement

On your Outback, the water pump circulates coolant through the engine and radiator. Replacing it usually means draining the coolant, removing the accessory (serpentine) belt, unbolting the pump, and refilling/bleeding the cooling system to prevent overheating.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: FB25 2.5L layout with external, belt-driven water pump.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Support the Outback with jack stands before working underneath.
• ⚠️ Keep coolant off belts and pulleys; it can cause slipping.
• ⚠️ Coolant is toxic to pets and people; catch and dispose properly.
• ⚠️ Battery disconnect is not required, but keep hands/tools clear of the radiator fans (they can turn on unexpectedly if the car is not fully off).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Spill-free coolant funnel kit (specialty)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 1/4" drive inch-pound torque wrench (20–200 in-lbs range)
• Socket extension set (3" and 6")
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm combination wrench
• 12mm combination wrench
• Phillips screwdriver
• Trim clip removal tool
• Hose clamp pliers
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump (with sealing O-ring/gasket) - Qty: 1
• Engine coolant (Subaru Long Life/Super Coolant equivalent, premix 50/50) - Qty: 2-3 gallons
• Accessory drive belt (serpentine belt) - Qty: 1
• Thermostat with gasket - Qty: 1
• Radiator drain plug gasket (if equipped/separate) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (ideally overnight).
• 📦 Lay out bolts in groups as you remove them; take a quick photo each step.
• 🧰 A “torque wrench” is a wrench that tightens bolts to an exact spec so you don’t strip threads.
• 🧪 A “spill-free funnel” is a tall funnel with adapters that lets you burp air out while the engine runs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack (rated 3-ton minimum) to lift the front center jack point.
• Place the vehicle on jack stands (rated 3-ton minimum) and set wheel chocks.
• Remove the plastic under cover using a trim clip removal tool, then remove any bolts with a 10mm socket.

Step 2: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Slowly loosen the coolant reservoir/radiator cap (only if fully cool).
• Open the radiator drain cock using a Phillips screwdriver and drain coolant completely.
• Close the drain cock by hand snug with the Phillips screwdriver (do not over-tighten).

Step 3: Remove the air intake ducting (for access)

• Loosen intake clamps using a 10mm socket.
• Unclip/remove any push clips using a trim clip removal tool.
• Lift out the ducting and set it aside.

Step 4: Remove the radiator fans (creates working room)

• Unplug the fan electrical connectors by hand (press the tab, then pull).
• Remove the fan shroud bolts using a 10mm socket.
• Carefully lift the fan assemblies straight up and out.

Step 5: Remove the accessory (serpentine) belt

• The “serpentine belt” is the single belt that drives accessories like the alternator and water pump.
• Put a 14mm socket on the belt tensioner bolt and rotate to relieve tension.
• Slip the belt off a smooth pulley first, then remove it fully.
• Tip: Take a belt-routing photo first.

Step 6: Disconnect hoses at the water pump area

• Position the drain pan (at least 10-quart) under the pump area for leftover coolant.
• Use hose clamp pliers to slide clamps back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off.
• Plug the hose end with a clean shop towel to reduce dripping.

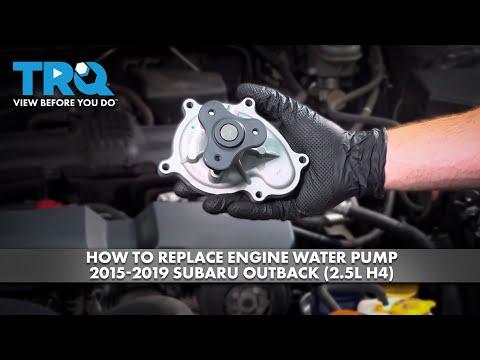

Step 7: Remove the water pump

• Remove any small brackets blocking access using a 10mm socket or 12mm socket.
• Remove the water pump mounting bolts using a 10mm socket and socket extension set (3" and 6").
• Gently pry the pump free by hand; do not gouge the aluminum mating surface.
• Clean the engine’s sealing surface using a plastic gasket scraper and shop towels.

Step 8: Install the new water pump

• Confirm the new pump has a new O-ring/gasket installed and seated evenly.
• Lightly wet the O-ring with fresh coolant using a funnel (a thin film helps it seat).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Torque to 9 N·m (80 in-lbs) using a 1/4" drive inch-pound torque wrench (20–200 in-lbs range).

Step 9: Reconnect hoses and reinstall removed brackets

• Reinstall hoses fully seated and move clamps back into position using hose clamp pliers.
• Reinstall any brackets using a 10mm socket or 12mm socket.
• Snug bracket bolts with a 3/8" drive ratchet (do not over-tighten small fasteners).

Step 10: Reinstall the belt, fans, intake ducting, and splash shield

• Route the belt according to your photo, then rotate the tensioner with a 14mm socket and slip the belt on.
• Reinstall radiator fans: set in place, bolt with a 10mm socket, and reconnect electrical plugs by hand.
• Reinstall intake ducting and tighten clamps using a 10mm socket.
• Reinstall the splash shield using a trim clip removal tool and 10mm socket.
• Lower the vehicle using the floor jack (rated 3-ton minimum).

Step 11: Refill and bleed the cooling system

• Install the spill-free coolant funnel kit (specialty) onto the fill neck.
• Slowly fill with engine coolant (Subaru Long Life/Super Coolant equivalent, premix 50/50) using the funnel.
• Start the engine and set HVAC to hottest temp with the fan on low (this helps purge air).
• Let it idle until the radiator fans cycle on and off at least once.
• Squeeze the upper radiator hose carefully by hand to help push trapped air out.
• Top off as bubbles stop, then shut off the engine and let it cool fully.
• Remove the funnel, install the cap, and fill the overflow reservoir to the “FULL” line using a funnel.

---

✅ After Repair

• 🔍 With the engine running, check for leaks around the pump and hose connections.
• 🌡️ Watch the temperature gauge on your first test drive; stop if it climbs abnormally.
• 🧊 After the next full cool-down, recheck the coolant level in the reservoir and top off if needed.
• 🧼 Clean any spilled coolant off the engine bay using shop towels.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
