🔧 ProMaster - Water Pump Replacement

Your A water pump circulates coolant through the engine and radiator. When it leaks or the bearing wears out, you can get overheating, coolant loss, or a squealing/grinding noise up front. This job involves draining coolant, removing the drive belt, swapping the pump, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 4-6 hours

Assumption: 3.6L Pentastar V6 with belt-driven external water pump.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant system hot; wait until fully cool.
• ⚠️ Support the van with jack stands if you lift it; never rely on a jack.
• ⚠️ Disconnect the negative battery cable before unplugging the alternator.
• ⚠️ Keep coolant off belts and pulleys; it can cause slipping.
• ⚠️ Coolant is toxic to people and pets; capture and dispose properly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 3-gallon)
• Funnel
• Shop rags
• Plastic trim clip remover
• Serpentine belt tool (specialty)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• 1/4" drive ratchet
• 1/4" drive torque wrench (2-20 Nm range)
• Socket set: 8mm, 10mm, 13mm, 15mm, 18mm
• E-Torx socket set: E10, E12
• Extensions: 3" and 6"
• Flat-blade screwdriver
• Pliers (hose clamp)
• Gasket scraper (plastic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring (as supplied with pump) - Qty: 1
• Engine coolant (OAT, 50/50 premix or concentrate + distilled water) - Qty: As needed
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Hose clamp(s) - Qty: As needed (only if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Let the engine cool completely.
• Place a drain pan under the front of the engine/radiator area.
• Disconnect the battery: use an 10mm socket to remove the negative terminal and isolate it.
• Serpentine belt tool = long handle for the tensioner.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access to the front of the engine

• Open the hood and remove any intake ducting that blocks access using an 8mm socket or flat-blade screwdriver (depending on clamp style).
• If your A has a lower splash shield that blocks access, raise the front with a floor jack, support with jack stands, then remove the shield fasteners using a plastic trim clip remover and 10mm socket.

Step 2: Drain the coolant

• Position the drain pan under the radiator drain area.
• Open the radiator drain (or lower hose if needed) slowly using pliers (hose clamp) for spring clamps.
• Remove the coolant reservoir cap to help it drain faster.
• Keep coolant off the belt path.

Step 3: Remove the serpentine belt

• Locate the belt tensioner and rotate it to relieve belt tension using a serpentine belt tool (specialty) or 15mm socket (depending on the tensioner design).
• Slip the belt off one pulley, then release the tensioner slowly.
• Remove the belt completely and set it aside.
• Take a quick photo of belt routing.

Step 4: Remove components blocking the water pump

• Unplug the alternator electrical connector(s) and remove the main power cable nut using a 13mm socket.
• Remove alternator mounting bolts using a 15mm socket (some fasteners may be E-Torx E12 depending on bracket hardware).
• Move the alternator aside (support it; do not hang by wiring).

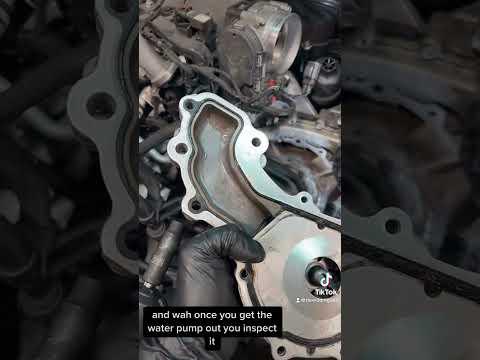

Step 5: Remove the water pump

• Place rags under the pump area to catch remaining coolant.
• Disconnect any coolant hose(s) attached to the pump using pliers (hose clamp).
• Remove the water pump mounting bolts using a 10mm socket.
• Pull the pump straight off the timing cover and let remaining coolant drain into the drain pan.

Step 6: Clean the sealing surface

• Use a gasket scraper (plastic) and shop rags to clean the timing cover sealing surface until it is smooth and dry.
• Do not gouge the aluminum surface.

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (follow the pump’s included orientation).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket, then torque with a 1/4" drive torque wrench: Torque to 12 Nm (106 in-lbs).
• Reconnect any hoses and secure clamps using pliers (hose clamp).

Step 8: Reinstall the alternator and any brackets

• Reinstall alternator mounting hardware using the correct socket (15mm socket or E-Torx E12 as removed).
• Torque alternator mounting bolts using a 3/8" drive torque wrench: Torque to 54 Nm (40 ft-lbs).
• Reconnect alternator electrical connector(s) and power cable nut using a 13mm socket: Torque to 14 Nm (10 ft-lbs).

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo and start it on all pulleys except the easiest one to reach.
• Rotate the tensioner with the serpentine belt tool (specialty) or 15mm socket, slip the belt onto the last pulley, then release the tensioner slowly.
• Visually confirm the belt ribs are fully seated on every grooved pulley.

Step 10: Reinstall splash shield/intake pieces and reconnect battery

• Reinstall the splash shield using a 10mm socket and plastic trim clip remover.
• Reinstall intake ducting using an 8mm socket or flat-blade screwdriver.
• Reconnect the negative battery terminal using a 10mm socket.

Step 11: Refill and bleed the cooling system

• Close the radiator drain (if opened).
• Refill with OAT coolant using a funnel at the coolant reservoir.
• If your A has a coolant bleed screw near the thermostat/coolant outlet, open it with the appropriate socket set or flat-blade screwdriver (varies by style), fill until a solid stream (no bubbles) comes out, then close it.
• Air pockets can cause overheating.

---

✅ After Repair

• Start the engine and let it idle with the heater set to HOT.
• Watch the temperature gauge and check for leaks around the water pump and hoses.
• When the engine warms up, verify you have strong heat from the vents (a good sign coolant is circulating).
• Shut the engine off, let it cool, then recheck and top off coolant as needed.
• Test drive, then recheck for leaks and coolant level again after the next full cool-down.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,250 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $470-$1,130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
