🔧 Outlander - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing wears out, you can get coolant loss, overheating, or grinding noises. On your Outlander, the water pump is driven by the accessory (serpentine) belt, so this job is mostly access, draining coolant, and careful sealing.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

Assumption: 2.4L uses an external, belt-driven water pump (common on this engine).

---

⚠️ Safety & Precautions

• 🛑 Never open the radiator cap when hot; coolant can spray and burn you.
• 🧯 Support the SUV with jack stands; never rely on a floor jack alone.
• 🧤 Coolant is toxic—keep away from kids/pets and clean spills immediately.
• 🔋 If coolant may drip near electrical connectors, disconnect the negative battery cable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Trim clip removal tool
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm, 14mm
• 21mm socket
• Torque wrench (10-100 ft-lbs range)
• Serpentine belt tool (specialty)
• Flathead screwdriver
• Plastic gasket scraper
• Brake cleaner spray
• Shop rags
• Pliers (hose clamp)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Mitsubishi Super Long Life Coolant (blue) premix - Qty: 2-3 gallons
• Serpentine (accessory drive) belt - Qty: 1 (recommended while you’re in there)
• Radiator drain plug gasket (if equipped) - Qty: 1 (recommended)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• ❄️ Let the engine cool fully (at least 1-2 hours).
• 📦 Remove anything under the hood that blocks access to the belt area (usually the upper plastic engine cover).
• 🔋 If you choose to disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and access the right-front area

• Use a 21mm socket to loosen the right-front wheel lug nuts 1 turn (before lifting).
• Use a floor jack to lift at the proper jacking point, then set the SUV on jack stands.
• Remove the wheel with the 21mm socket.
• Remove the lower splash shield / inner fender access panel using a trim clip removal tool, flathead screwdriver, and 10mm socket (fasteners vary).

Step 2: Drain the coolant

• Place a drain pan under the radiator drain area.
• Slowly loosen the radiator cap to the first stop to release any leftover pressure, then remove it fully once safe.
• Open the radiator drain (petcock) if equipped, using a flathead screwdriver (some are hand-turn). Let coolant drain completely.
• If you can’t access the petcock, remove the lower radiator hose clamp with pliers (hose clamp) and carefully pull the hose off.

Step 3: Remove the serpentine (accessory) belt

• Take a quick photo of the belt routing before removal.
• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve tension. (A serpentine belt tool is a long, thin handle made to reach the tensioner safely.)
• Slip the belt off one pulley, then remove the belt from the rest.

Step 4: Remove components blocking the water pump

• Depending on access, remove any small brackets or covers near the pump using a 10mm socket and 12mm socket.
• If a hose attaches to the pump area, use pliers (hose clamp) to move the clamp back, then twist/pull the hose off carefully.

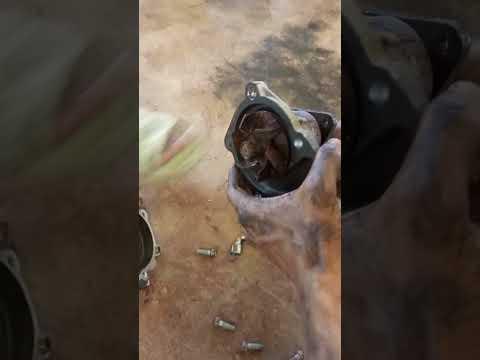

Step 5: Remove the water pump

• Place the drain pan under the pump—more coolant will spill.
• Remove the water pump mounting bolts using a 10mm socket and 12mm socket (bolt sizes can vary by location).
• Gently break the seal and remove the pump. If it’s stuck, tap lightly with your hand—do not pry hard against aluminum surfaces.

Step 6: Clean the sealing surface (this prevents leaks)

• Use a plastic gasket scraper to remove old gasket material from the engine mating surface. Go slow; don’t gouge aluminum.
• Spray a little brake cleaner spray on a shop rag and wipe the surface until clean and dry.

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match the old setup exactly).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a ratchet (3/8" drive).
• Final tighten with a torque wrench: Torque to manufacturer specification. If you don’t have the spec, snug + small additional turn is risky—get the spec before final assembly.

Step 8: Reinstall hoses, brackets, and the serpentine belt

• Reinstall any brackets/covers using a 10mm socket and 12mm socket. Tighten securely (do not over-tighten small bolts).
• Reinstall any hoses and position clamps back in place using pliers (hose clamp).
• Route the belt using your photo as a guide, then use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt on.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 9: Reinstall splash shield and wheel

• Reinstall the splash shield/liners using the trim clip removal tool and 10mm socket.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the SUV off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench: Torque to 135 Nm (100 ft-lbs).

Step 10: Refill and bleed air from the cooling system

• Make sure the drain is closed (or the lower hose is reattached) using a flathead screwdriver or pliers (hose clamp).
• Slowly fill the radiator with Mitsubishi Super Long Life Coolant (blue) premix using a funnel.
• Fill the overflow reservoir to the “FULL” line.
• Start the engine and set the heater to MAX HOT (this opens the heater circuit).
• Let it idle and watch for bubbles in the radiator neck; top off as needed with the funnel.
• Once the cooling fan cycles and heat is steady, install the radiator cap.

---

✅ After Repair

• 🔎 Check for leaks around the water pump and hose connections while idling.
• 🌡️ Test drive 10-15 minutes, then recheck coolant level after the engine cools completely; top off the reservoir if needed.
• 🧼 Recheck the serpentine belt alignment (no wandering, no squeal).
• ♻️ Dispose of old coolant properly (parts stores often accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $510-$730 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
