🔧 ES350 - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing wears out, you’ll see coolant dripping, overheating, or a grinding/whining noise. On your ES350, the pump is driven by the serpentine belt, so you’ll remove the belt, swap the pump, then refill and bleed the coolant.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Keep hands/tools clear of the belt path; do not crank the engine with the belt off.
• ⚠️ Recommended: disconnect the negative battery cable to prevent accidental shorts near the alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 10-quart)
• Funnel
• 21mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" breaker bar
• Socket extension set
• Torque wrench (10-80 ft-lbs range)
• Flat trim clip tool
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump O-ring / gasket (if not included with pump) - Qty: 1
• Toyota/Lexus Super Long Life Coolant (pink, pre-mixed) - Qty: 2-3 gallons
• Serpentine drive belt (recommended if worn/cracked) - Qty: 1
• New hose clamps (optional if originals are weak) - Qty: 1-3

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and let the engine cool completely.
• 🧰 Place wheel chocks behind the rear wheels.
• 🧰 Raise the front and support it securely on jack stands at the proper lift points.
• 🧰 Remove the plastic engine undercovers/splash shields using a 10mm socket and flat trim clip tool.
• 🧰 Recommended: disconnect the negative battery terminal using a 10mm socket.
• 🧰 Assumption: pump access is through the right-front (passenger-side) wheel well and from underneath, which is typical for the ES350 packaging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right-front wheel and access panels

• Use a 21mm socket to loosen the lug nuts slightly while the wheel is on the ground.
• Raise the car with a floor jack and set it on jack stands.
• Remove the lug nuts with a 21mm socket and remove the wheel.
• Remove the right-front inner fender liner access section (if equipped) using a 10mm socket and flat trim clip tool.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain cock (bottom of radiator).
• Slowly loosen the coolant reservoir cap by hand to relieve any leftover pressure.
• Open the radiator drain cock using a flat-blade screwdriver and let coolant drain.
• Tip: aim coolant with a short hose if possible.

Step 3: Remove the serpentine belt

• Locate the belt tensioner.
• Use a 14mm socket with a breaker bar to rotate the tensioner and relieve belt tension.
• Slip the belt off one pulley, then remove it completely.
• Tip: snap a quick photo of belt routing.

Step 4: Move components as needed for clearance

• Depending on access, you may need to unbolt a small bracket or move a coolant hose out of the way.
• Use 10mm socket and 12mm socket to remove any blocking brackets/bolts.
• If a hose is attached to the water pump area, use hose clamp pliers to slide the clamp back, then gently twist/pull the hose off.
• A “hose clamp” is the metal ring that squeezes the hose onto the fitting.

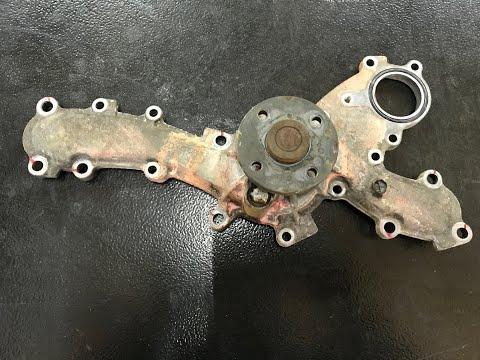

Step 5: Remove the water pump

• Place the drain pan under the pump area; more coolant will spill when the pump comes off.
• Remove the water pump mounting bolts using a 10mm socket and socket extensions.
• Carefully break the pump free and remove it. Use a plastic gasket scraper only if needed.
• Clean the mating surface with a plastic gasket scraper and shop towels; do not gouge the aluminum.

Step 6: Install the new water pump

• Install the new O-ring/gasket onto the new pump (most pumps come with it). Make sure it sits flat and is not twisted.
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten using a torque wrench: Torque to 21 Nm (15 ft-lbs).
• Tip: snug first, then torque in steps.

Step 7: Reinstall hoses, brackets, and the serpentine belt

• Reinstall any removed hoses and reposition clamps using hose clamp pliers.
• Reinstall brackets using a 10mm socket and 12mm socket.
• Route the belt correctly, then rotate the tensioner with a 14mm socket and breaker bar to slip the belt back on.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 8: Reinstall wheel well liner, undercovers, and wheel

• Reinstall the fender liner/access panels using a 10mm socket and flat trim clip tool.
• Reinstall the undercovers using a 10mm socket.
• Install the wheel and hand-tighten lug nuts.
• Lower the car and torque lug nuts with a torque wrench: Torque to 103 Nm (76 ft-lbs).

Step 9: Refill and bleed the cooling system

• Close the radiator drain cock (snug only) using a flat-blade screwdriver.
• Fill the coolant reservoir and radiator (if it has a cap/fill point) using a funnel with Toyota/Lexus Super Long Life Coolant (pink).
• Start the engine and set the heater to full HOT with the fan on low.
• Let the engine warm up while watching coolant level; top off as it drops.
• When the radiator fans cycle and you have steady cabin heat, shut the engine off and let it cool.
• Recheck and top off the reservoir to the correct line.

---

✅ After Repair

• 🧪 Inspect for leaks around the water pump and any hoses you touched with the engine running.
• 🧪 Confirm the temperature gauge stays normal during a 10-15 minute test drive.
• 🧪 Recheck coolant level the next morning (cold engine) and top off if needed.
• 🧪 Listen for belt squeal; if present, re-check belt seating on pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,300 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $570-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
