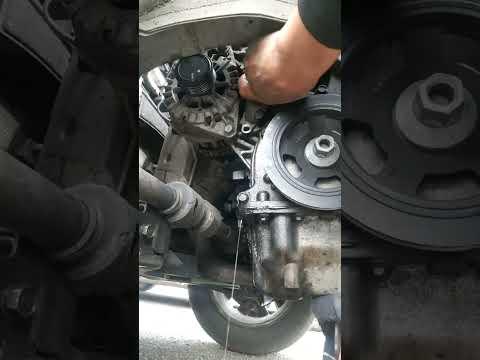

🔧 Sportage - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing wears out, you can lose coolant, overheat, or hear grinding noises—so replacing it promptly helps prevent engine damage.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: 2.4L uses an accessory-belt-driven water pump.

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the SUV with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands/tools clear of the cooling fan; it can turn on unexpectedly.
• ⚠️ Coolant is toxic; catch it in a drain pan and clean spills immediately.
• 🔋 Battery disconnect is recommended: remove the negative terminal before working near the fan/belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 10-quart)
• Funnel
• Spill-free funnel kit (specialty)
• Plastic trim clip tool
• Flathead screwdriver
• Pliers (hose clamp pliers)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (in-lb, 20–200 in-lb range)
• Torque wrench (ft-lb, 10–150 ft-lb range)
• Gasket scraper (plastic)
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Engine coolant (Asian vehicle compatible, premix 50/50) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 Recommended while you’re here
• Hose clamps (assorted) - Qty: 1 If originals are weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (best: sit overnight).
• Disconnect the battery: use a 10mm socket to remove the negative battery terminal and isolate it.
• Raise the front safely: use a floor jack and set the SUV on jack stands.
• Remove the lower splash shield as needed using a plastic trim clip tool and 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator area.
• Slowly remove the radiator cap once cool (use a shop rag for grip).
• Open the radiator drain (petcock) if accessible, or remove the lower radiator hose using pliers (hose clamp pliers).

Step 2: Remove the belt area access panels

• Remove the lower splash shield using a 10mm socket and plastic trim clip tool.
• If needed for side access, remove additional small shields using a 10mm socket and flathead screwdriver.

Step 3: Loosen the water pump pulley bolts (before removing the belt)

• With the belt still installed to hold the pulley, loosen (do not remove yet) the water pump pulley bolts using a 10mm socket and ratchet.
• “Loosen first” prevents pulley spin.

Step 4: Remove the serpentine belt

• A serpentine belt is the long belt that drives accessories (alternator, A/C, water pump).
• Rotate the belt tensioner using a 14mm socket and ratchet to relieve tension.
• Slide the belt off and note the routing (take a photo).

Step 5: Remove the water pump pulley

• Remove the loosened pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.

Step 6: Remove the water pump

• Place the drain pan under the pump area; more coolant will spill.
• Remove the water pump mounting bolts using a 10mm socket and/or 12mm socket with a 3/8" ratchet and extensions.
• Gently break the seal and remove the pump. If it’s stuck, tap lightly by hand—do not pry hard against aluminum surfaces.

Step 7: Clean the sealing surface

• Use a gasket scraper (plastic) to remove old gasket material.
• Wipe the surface with brake cleaner spray and shop rags until clean and dry.
• A gasket is the seal between parts; any leftover material can cause leaks.

Step 8: Install the new water pump and gasket

• Install the new gasket/O-ring onto the new pump (match the old setup).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a 10mm socket/12mm socket.
• Torque water pump M6 bolts to 9.8 Nm (87 in-lb).
• If any larger M8 bolts are present, torque to 18 Nm (13 ft-lb).

Step 9: Reinstall the water pump pulley

• Reinstall the pulley and hand-start the bolts using a 10mm socket.
• Torque pulley bolts to 9.8 Nm (87 in-lb).

Step 10: Reinstall the serpentine belt

• Route the belt correctly (use your photo).
• Rotate the tensioner with a 14mm socket and ratchet, then slip the belt onto the final pulley.
• Double-check the belt is seated in every pulley groove.

Step 11: Reinstall shields and reconnect the battery

• Reinstall splash shields using a 10mm socket and plastic trim clip tool.
• Reconnect the battery negative terminal using a 10mm socket.

Step 12: Refill and bleed the cooling system

• Fill the radiator slowly using a funnel (or spill-free funnel kit).
• Set the cabin heat to HOT (this opens the heater circuit).
• Start the engine and let it idle while topping off as the level drops.
• Once the engine reaches operating temp and the radiator fan cycles, shut the engine off and let it cool.
• Top off the radiator and then fill the overflow reservoir to the MAX line.

---

✅ After Repair

• Check for leaks around the water pump with the engine idling (use a flashlight and look for drips).
• Take a short test drive, then re-check the coolant level after a full cool-down.
• Watch the temperature gauge closely for the next few drives; overheating means stop and re-check bleeding/level.
• Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $400-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
