🔧 Cadenza - Water Pump Replacement

The water pump circulates coolant through your engine and radiator to prevent overheating. On your Cadenza, the pump is mounted on the front of the engine and is driven by the accessory (serpentine) belt, so you’ll remove the belt and unbolt the pump, then refill and bleed the cooling system.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; let it cool fully.
• ⚠️ Coolant is toxic; keep it off skin/paint and away from pets.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands/tools clear when releasing belt tension; the tensioner can snap back.
• ⚠️ Battery disconnect is not strictly required, but disconnecting the negative terminal helps prevent accidental shorts near the radiator fans.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Serpentine belt tool (specialty)
• Torque wrench (3/8" drive)
• Hose clamp pliers
• Plastic gasket scraper
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring - Qty: 1
• Accessory (serpentine) drive belt - Qty: 1
• Kia/Hyundai long-life coolant (P-OAT type, 50/50 premix) - Qty: As needed
• Distilled water - Qty: As needed
• Brake cleaner (non-chlorinated) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (radiator hose should feel cool).
• Open the hood and remove the engine cover (it pulls up) after releasing any fasteners with a 10mm socket if equipped.
• If you choose to disconnect the battery, remove the negative terminal using a 10mm socket and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and access the lower splash shield

• Use a floor jack (rated 3-ton minimum) to lift the front jacking point, then set the car securely on jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield using a trim clip removal tool and a 10mm socket.

Step 2: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator.
• Slowly loosen the coolant reservoir cap by hand to release any remaining pressure.
• Drain coolant from the radiator drain cock if accessible (turn carefully with a flat-blade screwdriver if needed), or remove the lower radiator hose using hose clamp pliers.
• Save coolant only if clean and recent.

Step 3: Remove the intake ducting (as needed for access)

• Loosen intake clamps with a flat-blade screwdriver and remove any mounting bolts with a 10mm socket.
• Move the duct/air box out of the way so you can clearly see the belt path and water pump area.

Step 4: Remove the accessory (serpentine) belt

• Before removing, take a photo of the belt routing.
• Use a serpentine belt tool (specialty) with the correct socket (commonly 17mm socket) to rotate the belt tensioner and relieve tension.
• Slide the belt off one pulley, then remove it fully.
• If the belt is cracked, replace it.

Step 5: Remove components blocking the water pump (if equipped)

• If a bracket, hose, or wiring clip blocks access, remove fasteners with a 10mm socket, 12mm socket, or 14mm socket as applicable.
• Use shop rags to catch any coolant drips when moving hoses.

Step 6: Unbolt and remove the water pump

• Place the drain pan (at least 10-quart) under the pump area to catch remaining coolant.
• Remove the water pump mounting bolts using a 12mm socket and 3/8" drive ratchet with extensions (3" and 6") as needed.
• Carefully pull the pump away from the engine. If it’s stuck, gently wiggle it by hand; do not pry hard against aluminum surfaces.

Step 7: Clean the mating surface

• Use a plastic gasket scraper to remove old gasket material without gouging the engine surface.
• Spray a rag with brake cleaner (non-chlorinated) and wipe the surface until clean and dry.
• No scratches = no leaks.

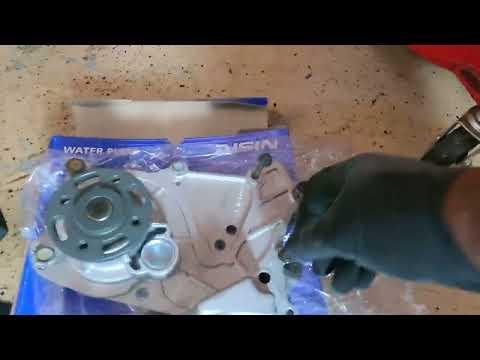

Step 8: Install the new water pump and gasket/O-ring

• Install the new water pump gasket/O-ring onto the pump as designed (dry unless the gasket instructions say otherwise).
• Position the new pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 12mm socket and torque wrench (3/8" drive).
• Torque to OEM specification (use the factory service manual spec for your exact fasteners).

Step 9: Reinstall removed brackets/hoses and the serpentine belt

• Reinstall any brackets/bolts using the appropriate 10mm socket, 12mm socket, or 14mm socket.
• Route the belt using your photo and slip it onto the last pulley while holding the tensioner back with the serpentine belt tool (specialty).
• Double-check the belt is seated in every pulley groove.

Step 10: Refill and bleed the cooling system

• Reinstall the radiator drain (if opened) and any hoses/clamps using hose clamp pliers.
• Fill the system through the reservoir using a funnel with Kia/Hyundai long-life coolant (P-OAT type, 50/50 premix).
• Start the engine and set the heater to HOT with the fan on low.
• Let it idle and watch the temperature gauge; add coolant as the level drops.
• When the radiator fans cycle and you get steady heat from the vents, shut it off, let it cool, and top off to the correct level.
• Air pockets cause overheating—take your time.

Step 11: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the trim clip removal tool and 10mm socket.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the car.

---

✅ After Repair

• With the engine running, check around the water pump for any seepage or dripping.
• Verify the belt runs smoothly with no wobble or squeal.
• Road test for 10–15 minutes, then recheck coolant level after the engine cools fully.
• Dispose of old coolant properly at a recycling/collection facility.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $370-$980 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
