🔧 Renegade - Water Pump Replacement

The water pump circulates coolant through the engine and radiator. When it leaks (coolant dripping) or the bearing fails (grinding/whining), the engine can overheat fast, so replacement is important.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: Steps reflect the 2.4L accessory-belt-driven water pump; small fastener/torque variations can occur by production date.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir cap on a hot engine; let it cool completely.
• ⚠️ Support the Renegade with jack stands before working under it.
• ⚠️ Keep hands clear of the belt drive while the engine is running.
• ⚠️ Coolant is toxic—use a drain pan and clean spills immediately.
• ⚠️ If you must raise/support the engine, do not lift by the oil pan without a wide support pad.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket 19mm
• Ratchet 3/8" drive
• Ratchet 1/2" drive
• Socket set metric 8mm-18mm
• Wrench set metric 8mm-18mm
• Serpentine belt tool 3/8" drive (specialty)
• Torque wrench 3/8" drive (10-100 Nm range)
• Torque wrench 1/2" drive (40-200 Nm range)
• Trim clip removal tool
• Flat-blade screwdriver
• Pry bar 12"
• Drain pan (at least 10-quart)
• Funnel
• Gasket scraper plastic
• Shop towels
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring seal - Qty: 1
• Serpentine belt - Qty: 1
• Engine coolant (OAT, 50/50 premix) - Qty: 2 gallons
• Distilled water - Qty: 1 gallon
• RTV silicone gasket maker - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (upper radiator hose should feel cool).
• Loosen the coolant reservoir cap slowly to release any leftover pressure, then reinstall it loosely.
• Take a photo of the belt routing sticker (or draw a quick sketch) before removing the belt.
• If you need extra clearance, be ready to support the engine with a floor jack and a wide pad.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front-right and remove the wheel

• Use lug nut socket 19mm to loosen the front-right lug nuts 1 turn.
• Lift with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the wheel using the lug nut socket 19mm.

Step 2: Remove the right splash shield (inner fender)

• Use a trim clip removal tool and flat-blade screwdriver to remove clips/screws holding the splash shield.
• Pull the shield out to expose the belt and water pump area.
• Tip: Keep clips in a small container.

Step 3: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator area.
• Slowly remove the coolant reservoir cap (use nitrile gloves and safety glasses).
• Drain coolant from the radiator drain (if accessible) or by removing the lower splash access and loosening the lowest hose clamp with a flat-blade screwdriver.
• Let it drain fully, then reinstall/secure the drain point.

Step 4: Remove the serpentine belt

• Fit a serpentine belt tool 3/8" drive (specialty) (or ratchet 3/8" drive) onto the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off one pulley and remove it.
• Definition: The belt tensioner is a spring-loaded arm that keeps the belt tight.

Step 5: Remove any components blocking the water pump

• Use a socket set metric 8mm-18mm and ratchet 3/8" drive to remove any brackets/covers in the way.
• If an engine mount/bracket limits access, support the engine lightly with a floor jack (rated 3-ton minimum) and a wide pad, then remove the mount fasteners using a socket set metric 8mm-18mm.
• Reposition only as much as needed for clearance.

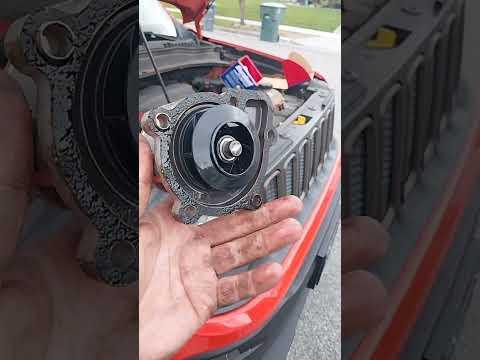

Step 6: Remove the water pump (and pulley if equipped)

• Put the drain pan (at least 10-quart) under the pump area; more coolant will spill.
• If there is a pump pulley, remove pulley bolts using a socket set metric 8mm-18mm while holding the pulley from turning with a pry bar 12".
• Remove the water pump bolts using a socket set metric 8mm-18mm and ratchet 3/8" drive.
• Gently separate the pump from the engine using a pry bar 12" only at a reinforced edge.

Step 7: Clean the sealing surface

• Use a gasket scraper plastic and shop towels to clean the engine mating surface.
• Do not gouge the aluminum surface; keep it smooth and clean.
• Wipe the area until it’s dry and free of old gasket/O-ring material.

Step 8: Install the new water pump

• Install the new water pump gasket / O-ring seal onto the new pump.
• If your replacement pump/gasket design calls for RTV, apply a thin continuous bead of RTV silicone gasket maker (about 2-3 mm) around the sealing surface.
• Position the pump and hand-thread all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a torque wrench 3/8" drive (10-100 Nm range): Torque to 12 Nm (106 in-lbs), then final pass Torque to 25 Nm (18 ft-lbs).
• Tip: Even tightening prevents leaks.

Step 9: Reinstall pulley (if equipped), brackets, and mount hardware

• Reinstall the pulley and tighten with a torque wrench 3/8" drive (10-100 Nm range): Torque to 25 Nm (18 ft-lbs).
• Reinstall brackets/covers using a socket set metric 8mm-18mm and ratchet 3/8" drive.
• If you removed an engine mount, tighten mount fasteners using a torque wrench 1/2" drive (40-200 Nm range): Torque to 95 Nm (70 ft-lbs).

Step 10: Install the serpentine belt

• Route the new serpentine belt according to the under-hood diagram.
• Use the serpentine belt tool 3/8" drive (specialty) to rotate the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 11: Reinstall the splash shield and wheel

• Reinstall the splash shield using the trim clip removal tool and flat-blade screwdriver.
• Install the wheel and snug lug nuts using the lug nut socket 19mm.
• Lower the Renegade and tighten lug nuts with a torque wrench 1/2" drive (40-200 Nm range): Torque to 135 Nm (100 ft-lbs).

Step 12: Refill and bleed the cooling system

• Use a funnel to fill the reservoir with engine coolant (OAT, 50/50 premix) to the MAX line.
• Set the HVAC to full hot and low fan (this opens the heater circuit).
• Start the engine and let it idle; watch the temperature gauge.
• As the engine warms, add coolant as the level drops.
• Once the radiator fan cycles on and off, install the reservoir cap.
• Shut the engine off, let it cool completely, then recheck and top off to the MAX line.

---

✅ After Repair

• Start the engine and inspect around the water pump for leaks using a flashlight.
• Listen for belt squeal or grinding; shut off immediately if you hear abnormal noises.
• Test drive 10-15 minutes, then recheck for leaks and recheck coolant level after a full cool-down.
• If the check engine light comes on or it overheats, stop driving and recheck bleeding and belt routing.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $470-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
