🔧 Veloster - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. If it’s leaking (coolant dripping) or the bearing is failing (grinding/whining), replacing the pump prevents overheating and engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock accessory-belt-driven water pump on your 1.6T layout.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands clear of the radiator fan; it can turn on unexpectedly.
• ⚠️ Clean spills immediately; coolant is slippery and toxic to pets.
• 🔋 Battery disconnect is not strictly required, but disconnecting the negative terminal is safer when working near the fan and wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• Pliers
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm, 14mm, 17mm
• Wrench set: 10mm, 12mm, 14mm, 17mm
• Extension set (3" and 6")
• Torque wrench (3/8" drive, 10–80 Nm range)
• Serpentine belt tool or long 17mm box wrench
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Accessory drive belt - Qty: 1 Recommended while you’re here
• Hyundai-compatible long-life coolant (50/50 premix) - Qty: 2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Remove the coolant reservoir cap slowly to release any leftover pressure.
• If you choose to disconnect the battery: use a 10mm wrench to remove the negative terminal and tuck it aside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack to lift the front jacking point, then set the car on jack stands.
• Remove the lower engine splash shield/undertray using a trim clip removal tool and 10mm socket (some fasteners are clips, some are bolts).

Step 2: Drain the coolant

• Place a drain pan under the radiator drain area.
• Open the drain (petcock) carefully using pliers or by hand (varies by radiator), and let coolant drain fully.
• If it drains slowly, loosen the reservoir cap more to let air in.

Step 3: Remove the accessory drive belt

• Locate the belt tensioner. Use a 17mm wrench (or serpentine belt tool) to rotate the tensioner and release belt tension.
• Slip the belt off one pulley, then remove it completely.
• Take a quick belt-routing photo first.
• Tool definition: a serpentine belt tool is a long handle that helps rotate the tensioner in tight spaces.

Step 4: Remove the water pump pulley (if equipped)

• If your pump uses a bolt-on pulley, remove the pulley bolts using a 10mm socket or 12mm socket (varies by pulley).
• If the pulley wants to spin, hold it with your hand pressure, or reinstall the belt temporarily to “lock” it while you crack the bolts loose.
• Remove the pulley and set it aside.

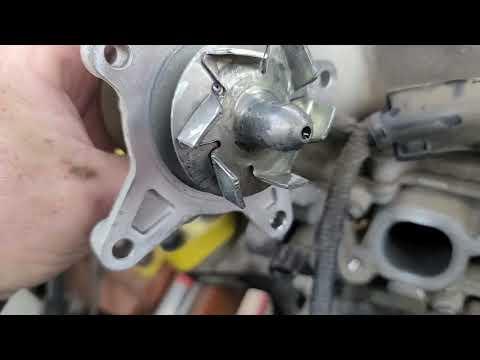

Step 5: Remove the water pump

• Place the drain pan under the water pump area (more coolant will spill).
• Remove any brackets/hoses blocking access using a 10mm socket or 12mm socket. Use pliers for spring clamps.
• Remove the water pump mounting bolts using a 10mm socket and extension.
• Pull the pump straight off. If it’s stuck, tap gently with the plastic handle of a flathead screwdriver (do not pry hard on the aluminum sealing surface).

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to remove old gasket material from the engine surface.
• Spray brake cleaner spray on a shop towel and wipe until clean and dry.
• Do not gouge the aluminum surface.

Step 7: Install the new water pump and gasket

• Install the new gasket/O-ring onto the new pump (match the old style exactly).
• Position the pump and start all bolts by hand first (prevents cross-threading).
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final-tighten with a torque wrench: Torque to 10 Nm (7 ft-lbs).

Step 8: Reinstall the pulley and belt

• Reinstall the pulley and start the bolts by hand.
• Tighten pulley bolts with a 10mm socket or 12mm socket: Torque to 10 Nm (7 ft-lbs).
• Route the belt correctly, rotate the tensioner with a 17mm wrench, and slip the belt onto the last pulley.
• Visually confirm the belt is centered on every pulley groove.

Step 9: Reinstall splash shield and lower the car

• Reinstall the undertray using a 10mm socket and clips with the trim clip removal tool.
• Lower the car safely using the floor jack.

Step 10: Refill and bleed the cooling system

• Use a funnel to fill the reservoir with 50/50 premix coolant to the MAX line.
• Start the engine and set the heater to HOT (this helps open the heater core and purge air).
• Let it idle until the temperature gauge is normal and you feel hot air from the vents.
• Shut the engine off, let it cool, then top off coolant again to the MAX line.
• Air pockets cause overheating—don’t rush this step.

---

✅ After Repair

• Check for leaks around the water pump with the engine running and again after a short drive.
• Watch the temperature gauge on your first test drive; pull over if it climbs abnormally.
• Recheck coolant level the next morning (engine cold) and top off to the MAX line.
• If you disconnected the battery, reconnect it using a 10mm wrench and make sure the terminal is tight.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
